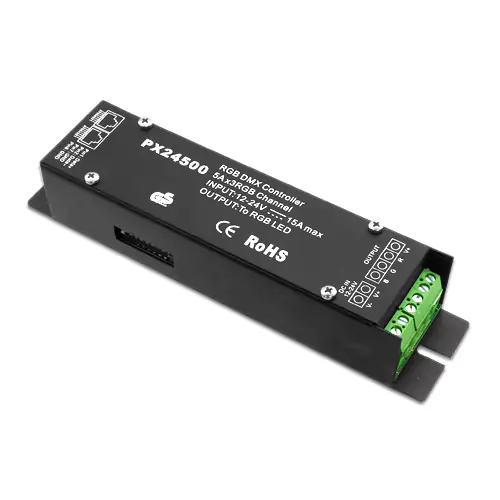

PX24500 RGB LED DMX Driver, 12-24VDC 5A/CH

Product Description

SKU: LC-OL-DMX-PX

The most popular DMX Driver style PX24500, which allows you to connect your RGB LED Lights, LED Lighting, LED Ribbon strips or RGB LED Modules to DMX512 or DMX1990 Lighting controllers. Then by using PWM & DMX, you can change the color and dimming of your RGB LED lights. For 12 to 24VDC systems only. Includes one 6' Cat5 cable with RJ45 jack connectors. 5A per channel with a maximum power of 180W / 12VDC or 360W / 24VDC. For use with 4 pin, 3 loop, common anode style RGB LED and LED Lighting. Can be connected to DMX512 signal using RJ45 connectors and Cat5 cables. Unit has DIP switches on the side to manually change the DMX address of each driver. Each PX24500 Driver uses 3 DMX addresses. RGB LEDs and power supply are connected using screw down style connectors. RoHs, CE approved.

Product Downloads
Product Specifications
SPECIFICATIONS
ModelDMXDriver PX24500 RGB LED
SKULC-OL-DMX-PX
Dimensions6.9" X 1.75" X 1.38"T
DMX TypeDMX 512, DMX 1990
DC Power12 - 24VDC
5A x 3CH
Watts12VDC: 180W
24VDC: 360W
Refresh Rate433Hz
RatingDry
Warranty Period1 Year
  Reveal - Click the arrow or text to reveal answers.
 CSR - Customer service representatives.
 Purchaser - Verified purchasers of this product.

For B2B or Large Quantity Price Info Click Here

DMX Signal Cable, XLR3 Male to RJ45 - 36"

SKU: LA-EL-DMX-CBL     View Product Page
This is a 3 foot long DMX signal Cable for any DMX application requiring XLR3 DMX output to an RJ45 DMX input. This cable will allow you to connect to a DMX controller, that has XLR3 output plugs, and any DMX Driver or controller with RJ45 connector. 36" cable included, XLR3 Male, plug on one end and RJ45 jack on the other end.

DMX Signal Cable, XLR3 Male to RJ45 - 36"

Signal Terminator for DMX Driver RJ45 Type

SKU: LA-EL-DMX-TM     View Product Page
This is a DMX signal Terminator for use with LED DMX Drivers that use an RJ45 jack. Use the signal terminator on the DMX output of the last DMX Driver in daisy chain. This terminator is needed if you have more than 3 DMX Drivers in a series of daisy chained drivers.

Signal Terminator for DMX Driver RJ45 Type
