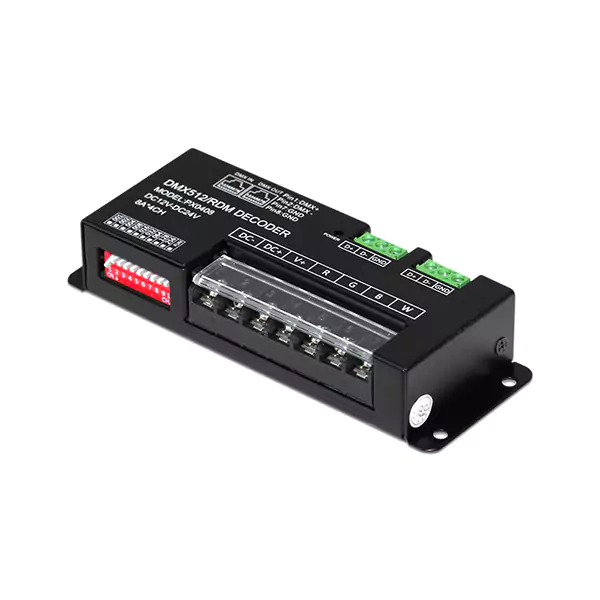

The PX408 4 channel DMX decoder allows you to control 32 amps over four channels of LED Lighting to DMX512 1990 or RDM 2009 Lighting controllers. Use this for any 12-24VDC common anode RGBW lights, RGB LED lights plus one single color LED light, or four single color LED lights, LED modules, or LED light strips to a DMX or RDM 2009 Control System. 8A per channel with a maximum power of 384W / 12VDC or 768W / 24VDC. Can be connected to DMX512 signal using RJ45 connectors and Cat5 cables or by using the green phoenix terminals for your 3 wire dmx signal. Unit has DIP switches on the side to manually set the starting DMX address of each driver. On power lights will be white until a DMX signal is received, test function will cycle colors when all dip switches are in the on position. Supported RDM parameters: DISC_UNIQUE_BRANCH / DISC_MUTE / DISC_UN_MUTE / DEVICE_INFO / SOFTWARE_VERSION_LABEL / DMX512/ RDM_START_ADDRESS / IDENTIFY_DEVICE / MANUFACTURER_LABEL / SUPPORTED_PARAMETERS. LEDs and power supply are connected using screw down style connectors. RoHs, CE approved.
| SPECIFICATIONS | |
| Model | PX408 4 Channel DMX LED Driver |
| SKU | LC-OL-DMX-PX02 |
| Dimensions | 5.51" x 1.97" x 1.02"H |
| DMX Type | DMX512 1990/RDM 2009 |
| RDM Control | Yes |
| DC Power | 12-24VDC, 8A x 4CH |
| Watts | 12VDC: 384W 24VDC: 768W |
| Operating Temp | -4 ~ 122°F |
| Rating | Dry |
| Warranty Period | 1 Year |
| Test Function | Yes See Mode |
