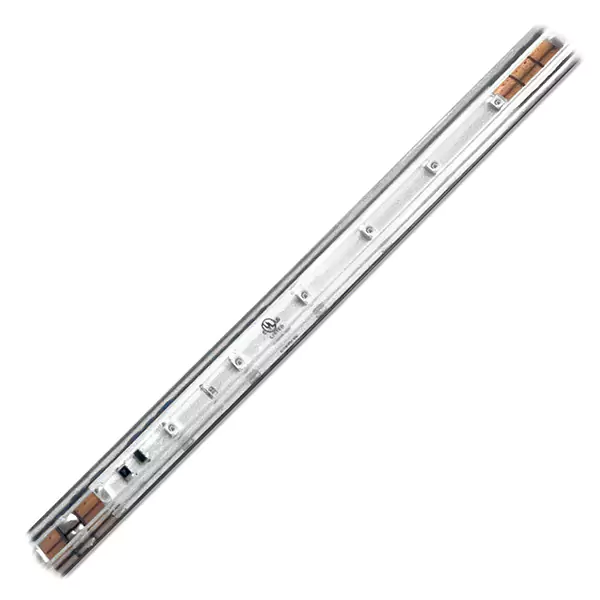

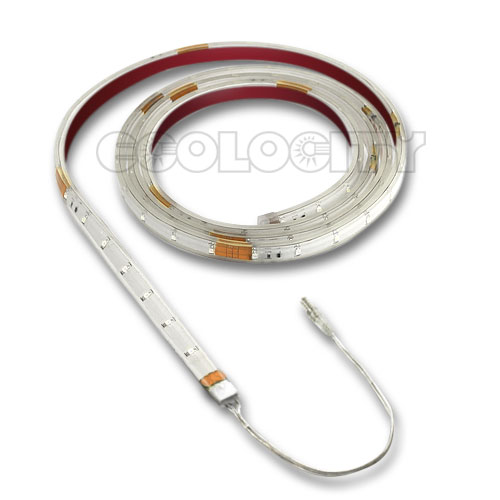

Ribbon Star Extreme, Amber Outdoor LED Strip Light - UL 24VDC - 118" (3m)

Product Description

SKU: RL-SC-RSX-Y-10

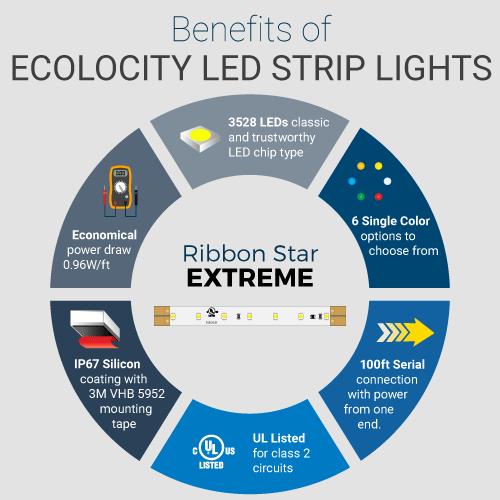

Our UL Listed Ribbon Star Extreme is a fully outdoor rated LED Strip Light that can be connected in series up to 30m (100ft). With a TPU coating (Thermoplastic Polyurethane) Ribbon Star Extreme is IP68 outdoor rated. Making it fully waterproof, submersible, UV proof and even V-0 fireproof rated. Ribbon Star Extreme LED Strip Light provides a perfect light source for any outdoor and underwater lighting projects. The Strip Light can be cut every 6.5 inches and has multiple connection options that can be waterproofed to suite your projects needs. 7 SMD LEDs per 6.5 inches with a total of 126 LEDs per 3m. At .96W per foot, a 3m roll would require at least a 12W, 24VDC power supply. At the maximum series length of 30m this ribbon would require at least a 150W 24VDC Constant Voltage power supply. This LED strip light is perfect for any outdoor or underwater lighting project. Use with water features, decks, trailers, boats, RV's, dog kennels, landscaping, business trim, pathway lighting, or any other situation that a fully outdoor proof LED Strip Light is needed. Comes with 10 mounting clips and double sided 3M mounting tape. Requires a 24VDC Constant Voltage power source. UL Listed for class 2 luminaries and fixtures, RoHS and CE approved.

Product Downloads
Product Specifications
SPECIFICATIONS
ModelRibbon Star Extreme, Amber, 118" (3m)
SKURL-SC-RSX-Y-10
Dimensions118"L x 0.48"W x 0.28"H
Connection Type2 Wire (+/-)
LED Chip Type3528
LED Quantity7 SMDs per 6.5 inches
LEDs Per Strip126 SMD LEDs
Input Power24VDC Constant Voltage
Watts0.96W per foot
Beam Angle120°
RatingIP68 Waterproof
Operating Temp-49°~149°F
Max Serial Connection100 Feet
CertificationUL Listed, RoHS, CE
Product Lifetime50,000 Hours
Warranty Period2 Years
Wiring Diagrams
Wire Thumb
Wire Thumb
Wire Thumb
Ribbon Star Extreme Dimensions Ribbon Star Extreme Light Meter
Important Information

This Strip Light can be connected in series up to 100ft (30m). If you are ordering multiple 3m lengths please specify whether to keep one long length or multiple 3m lengths.


Out of Stock
Buy
Discount
You Pay
6+
5% off
$76.00
13+
8% off
$73.60
31+
12% off
$70.40
61+
15% off
$68.00
100+
18% off
$65.60
  Reveal - Click the arrow or text to reveal answers.
 CSR - Customer service representatives.
 Purchaser - Verified purchasers of this product.

For B2B or Large Quantity Price Info Click Here

(3) Ribbon to Ribbon Connector for Ribbon Star Extreme Single color

SKU: RA-SC-RSX-A3-3     View Product Page
This connector is made specifically for use with our Ribbon Star Extreme Single Color LED Strip Light. Use this connector to easily mate two Single Color Extreme LED Strips together. Four screw down allen bolts make for a simple and secure connection. Use our Silicon Glue with special syringe application to make this connector fully water and outdoor proof, as well as fully submersible. See the installation instructions below for reference.

(3) Ribbon to Ribbon Connector for Ribbon Star Extreme Single color
Out of Stock

(2) Ribbon wire Ribbon Connector for Ribbon Star Extreme Single Color

SKU: RA-SC-RSX-A5-2     View Product Page
This connector is made specifically for use with our Ribbon Star Extreme Single Color LED Strip Light. With 10" of lead wire between each connector, this can be used to easily mate two Single Color Extreme LED Strips together. Four screw down allen bolts make for a simple and secure connection. Use our Silicon Glue with special syringe application to make this connector fully water and outdoor proof, as well as fully submersible. See the installation instructions below for reference.

(2) Ribbon wire Ribbon Connector for Ribbon Star Extreme Single Color
Out of Stock

(10) Plastic Mounting Clip for Ribbon Star Extreme - Single Color

SKU: RA-SC-RSX-A1-10     View Product Page
These are 10 plastic mounting clips made for use with our Ribbon Star Extreme Single Color LED Strip Lights. Use to secure your LED Strip Lights to any drill-able surface. Click the thumbnail image for clip dimensions.

(10) Plastic Mounting Clip for Ribbon Star Extreme - Single Color
Out of Stock

TPU End Cap for Single Color Waterproof LED Strips

SKU: RA-SC-RS-EC     View Product Page
This TPU (Thermoplastic Polyurethane) end cap is made to cap the end of your single color Ribbon Star LED Strip Lights with TPU coating. Use this end cap with an industrial strength plastic bonding adhesive to close and seal your exposed cuts to water and outdoor proof your LED Strip.

TPU End Cap for Single Color Waterproof LED Strips

TPU End Cap with hole for Single Color Waterproof LED Strips

SKU: RA-SC-RS-ECH     View Product Page
This TPU (Thermoplastic Polyurethane) end cap with holes is made to cap the end your waterproof strip light while allowing connection wires to pass through. Use this end cap with an industrial strength plastic bonding adhesive to close and seal your exposed cuts to water and outdoor proof your LED Strip wire connections.

TPU End Cap with hole for Single Color Waterproof LED Strips
