SKU: RL-SC-RSS2-WW-10

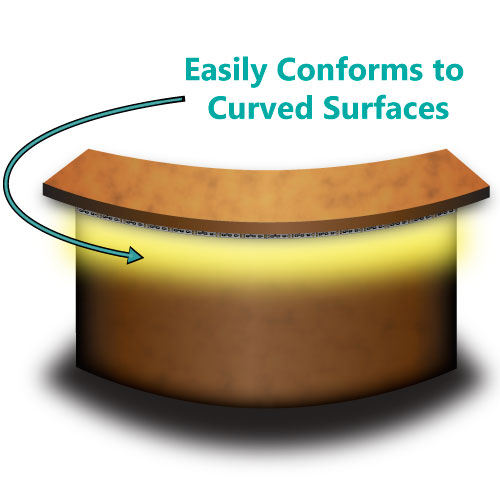

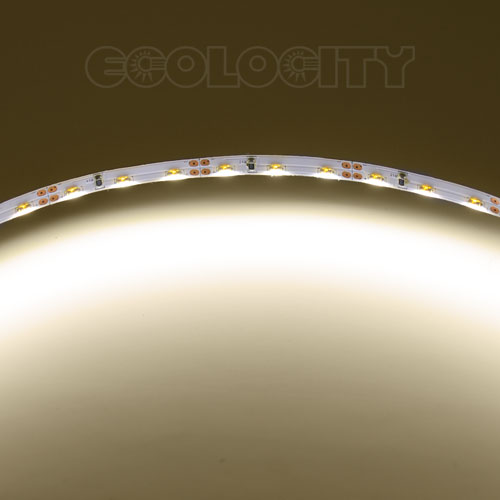

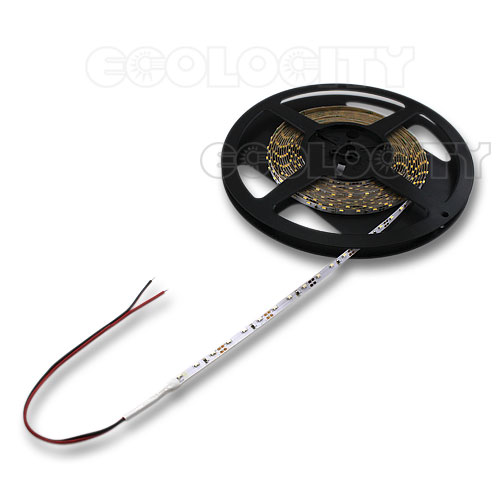

This UL Listed Ribbon Star Side Light LED Light Strip with 450 high quality Warm White Side Lit LEDs provides a perfect light source for many different projects. The 16.4ft(5m) LED Strip Light can be cut every inch and has a 5mm slim profile to easily conceal in any LED Strip Light application. Comes with 3M™ mounting tape on the back, for the best long-term mounting solution. 3 SMD LEDs per 1.3" with a total of 450 LEDs that require 33.5W of 12VDC power or 2.04W per foot. This LED strip light is great for projects that your typical SMD LED Strip will not configure to. Use for back lighting, halo lighting, back splash lighting, coves, under counter lights, toe kick lighting, under stairs or any other lighting applications that require a slim flexible LED Strip Light. Quick connectors are sold separately. Requires a 12VDC Constant Voltage power source. 3500K Color Temperature. UL Listed for class 2 circuits, RoHS and CE approved.
| Click For Product Data Sheet |
| LED Strip Light Comparison Guide |
| Click For Wire to Strip Soldering Video |
| Click For Overlap Strip Soldering Video |
| Calculate Electrical Load | |
| * Power Supply capacity must be larger than minimum lighting load. | |
| SPECIFICATIONS | |
| Model | Ribbon Star Side Light, 450LEDS - Warm White, 16.4ft (5m) |
| SKU | RL-SC-RSS2-WW-10 |
| Dimensions | 197" x 0.20" x 0.07"H |
| Connection Type | 2 Wire (+/-) |
| LED Chip Type | 2511 |
| LED Quantity | 3 SMDs per 1.3 inch |
| LEDs Per Strip | 450 SMD LEDs |
| Input Power | 12VDC Constant Voltage |
| Watts | 2.04W per foot |
| Beam Angle | 120° |
| Lumens | 76 lm/ft |
| CRI | >80 |
| Kelvin | 3000-3500K |
| Rating | IP20 Indoor |
| Operating Temp | -4°~113°F |
| Max Serial Connection | 30 Feet |
| Certification | UL Listed, RoHS, CE |
| Lifetime Hours | 50,000 Hours |
| Warranty Period | 2 Years |
| Wiring Diagrams |
 |
 |
 |
Ribbon Star Side Light, Warm White 450 LED Strip Light - UL 12VDC
Ribbon Star Side Light, Warm White 450 LED Strip Light - UL 12VDC
Ribbon Star Side Light, Warm White 450 LED Strip Light - UL 12VDC
For B2B or Large Quantity Price Info Click Here
(3) Ribbon to Wire Connector - Ribbon Star 450 Sidelight & SlimLux
SKU: RA-SC-RSS2-RW-3 View Product Page
Use this connector on our Ribbon Star 450 Sidelight or SlimLux LED strips to add 6 inches of lead wire to connect ribbon to a power supply, dimmer or to other sections of ribbon. Sold in sets of 3. For use with 0.20" (5mm) wide ribbon products only.
Mean Well Plug-in LED Power Supply 40W - 12VDC
SKU: PS-MW-40-12 View Product Page
Our Mean Well brand 12VDC plug-in style, 40 Watt Constant Voltage LED AC/DC Power Transformer can be used in dry locations to output up to 40 Watts or 3.34 Amps of 12VDC power for 12VDC LED lights and controllers. The AC wall input is made through a common 3 prong wall plug cord and the 12VDC output uses a 5.5mm x 2.1mm female plug (5.5mm x 2.1mm male barrel jack included). Built in short-circuit, overload, and over voltage protection guards from damage do to improper installation. Use this LED power supply to connect 12VDC LED Strip Lights, LED Modules, LED Lights, RGB LED lighting and other LED Lighting products. UL listed, RoHs and CE approved.
