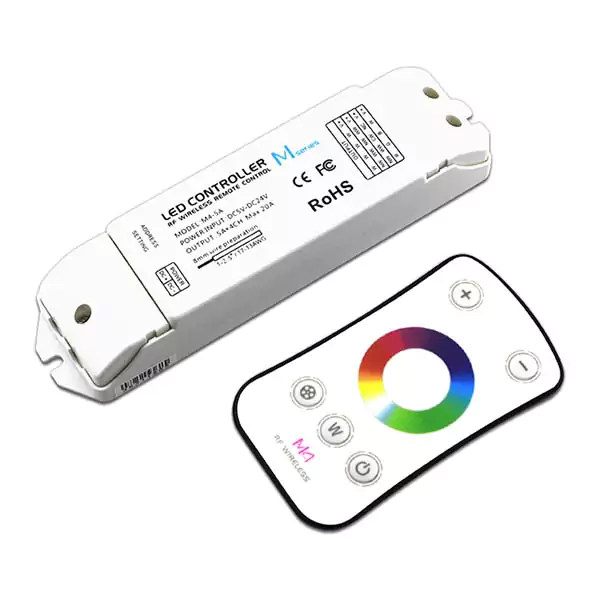

Mini RGBW Color Wheel RF Remote & Receiver Kit, 5-24VDC 5A/CH NEW!

Product Description

SKU: LC-LT-MRGBW1-KIT

From our series of Mini Controllers comes a new RGBW Color Wheel Style controller for 5-24VDC constant voltage RGBW & RGBWW led lighting products. Each remote is paired by the user to any number of mini receivers to create wonderful color changing effects along with single color dimming control (5-100%) in a variety of indoor lighting applications. Each mini receiver has a 5-24VDC input with a max output rating of 5A x 4 channels or max load of 240W at 12VDC or 480W at 24VDC. Choose from 12 built in modes with brightness and speed adjustment or choose from an array of static colors from the color wheel with 5-100% dimming control. The white lighting output is controlled independently from the RGB static colors and color changing modes. Previous scenes and dimming levels are stored when 5-24VDC input is powered on/off. Remotes and receivers are sold together as part of a kit or can be purchased separately, please choose the controller option you would like from the drop down list.

Product Downloads
Product Specifications
SPECIFICATIONS
ModelMini Color Wheel RGBW LED Controller Kit, 5-24VDC
Kit SKULC-LT-MRGBW1-KIT
Remote SKULC-LT-MRGBW1-RT
Receiver SKULC-LT-MINI-RC
Remote Dimensions4.09"L x 2.36"W x 0.375"H
Receiver Dimensions6.89"L x 1.73"W x 1.18"H
Input Connection2 Wire (+/-)
Output Connection5 Wire RGBW(+)
Input Power5 - 24VDC
Output Power5A x 4CH
Maximum Watts12VDC - 240W
24VDC - 480W
RatingIndoor
Operating Temp-22° ~ 131°F
Warranty Period1 Year
RF Receiver Radius150ft (line of sight)
Static Color Choices4,096
Color Changing Modes12 Modes See Modes
Wiring Diagrams
thumb

Buy
Discount
You Pay
6+
5% off
$80.75
15+
8% off
$78.20
30+
12% off
$74.80
75+
15% off
$72.25

For B2B or Large Quantity Price Info Click Here

Ribbon Star 50/50, RGB + White LED Strip Light - UL 12VDC

SKU: RL-SC-RS50-RGBW-5     View Product Page
This 4 color LED Strip Light combines RGB and White 5050 LED Chips into a single 16.4' roll. This UL Listed LED Strip can produce over 4 billion shades of brilliant colors using 255 levels of brightness adjustment on each color. There are 3 RGB and 3 White LED Chips every 4 inches. This 16.4' (5m) LED strip can be cut every 4 inches and can be reconnected by soldering or our quick connectors to bare lead wire. Comes with 3M™ mounting tape on the back, for the best long-term mounting solution. 75W of constant voltage 12VDC power is needed for this 16.4' strip (4.4W per foot). All colors of this LED Strip Light can be controlled using our 4 Channel RGB Controller or through 4 DMX channels in a DMX universe. This RBG LED Light strip can be used for entertainment lighting, bars, casino lights, full color cove lights, RGB backlighting, under cabinet LED lighting, stage shows, or virtually any project that requires a full range of vivid LED color. For optimal light output we recommend you connect these lights no longer than 20ft in series. This product comes with two quick connectors to bare lead wire. See link below for demonstration video. This strip light is UL Listed, RoHS and CE approved.

Ribbon Star 50/50, RGB + White LED Strip Light - UL 12VDC
19.5" (0.5m) Sample
$18.99
Out of Stock
16.4' (5m) Roll
$164.99
Out of Stock
Notify me when this item is in stock

Ribbon Star 50/50, RGB + Warm White LED Strip Light - UL 12VDC

SKU: RL-SC-RS50-RGBWW-5     View Product Page
This 4 color LED Strip Light combines RGB and Warm White 5050 LED Chips into a single 16.4' roll. This UL Listed LED Strip can produce over 4 billion shades of brilliant colors using 255 levels of brightness adjustment on each color. There are 3 RGB and 3 Warm White LED Chips every 4 inches. This 16.4' (5m) LED strip can be cut every 4 inches and can be reconnected by soldering or our quick connectors to bare lead wire. Comes with 3M™ mounting tape on the back, for the best long-term mounting solution. 75W of constant voltage 12VDC power is needed for this 16.4' strip (4.4W per foot). All colors of this LED Strip Light can be controlled using our 4 Channel RGB Controller or through 4 DMX channels in a DMX universe. This RBG LED Light strip can be used for entertainment lighting, bars, casino lights, full color cove lights, RGB backlighting, under cabinet LED lighting, stage shows, or virtually any project that requires a full range of vivid LED color. For optimal light output we recommend you connect these lights no longer than 20ft in series. This product comes with two quick connectors to bare lead wire. See link below for demonstration video. This strip light is UL Listed, RoHS and CE approved.

Ribbon Star 50/50, RGB + Warm White LED Strip Light - UL 12VDC
19.5" (0.5m) Sample
$18.99
16.4' (5m) Roll
$164.99

Mean Well LED Power Supply Three Output 200W - 24VDC

SKU: PS-MW-200-24     View Product Page
A Mean Well 200W 24VDC LED Power Supply / Transformer, with a selectable AC input of either 100-120VAC or 200-240AC and 24VDC output through three terminals. Simple to use screw down style terminals make for an easy and secure connection. Built in short circuit, overload, over voltage, and over heating shut down protection guards the unit from any improper use. This power supply can also withstand a 300VAC input surge for up to 5 seconds. It can be used to connect 24VDC LED Modules, LED Lights, LED Light Ribbons, RGB LED lighting and other 24VDC Constant Voltage LED Lighting products. UL Recognized, RoHs and CE approved. Can connect up to 180 one watt led lights. Only install face up or in a manner that the cooling grate faces upwards with sufficient breathing space.

Mean Well LED Power Supply Three Output 200W - 24VDC
