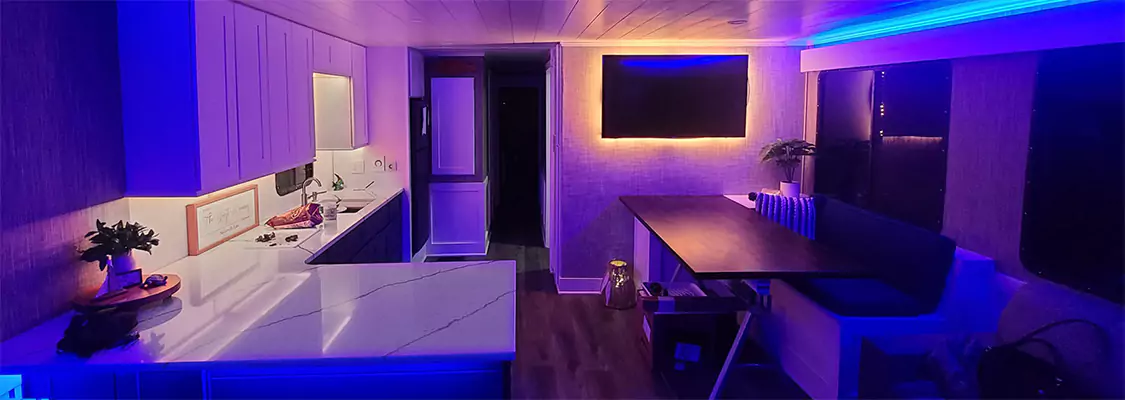

Understanding RGBCCT - Color Changing + Tunable White

RGBCCT is the latest in color changing plus white LED technology. It combines the features of traditional RGB colors with the ability of a tunable white CCT selectable static white output. Using the three colors of RGB along with both a warm and cool white output these LED lights are an all in one type light source that can be used for both color changing accent lighting or single color white task or ambience lighting depending on the time and event.

What is RGB+CCT Five Color LED Lighting

Color Changing LED Lighting Plus Tunable White Output
RGBCCT LED Chip

The RGB+CCT color model consists of basic RGB color changing plus the addition of two static white outputs that can be dimmed for adjustable CCT lighting. By adjusting the brightness of the five outputs you can create 2555 (255 x 255 x 255 x 255 x 255) intensities, over 1 trillion possibilities. When using simply RGB your colors are always vibrant with the ability to dim the intensity, when you add in another white output you can create neutral and pastel color tones, when you add tunable white your color creation ability is expanded even further. Lastly the tunable white gives you the ability for any kelvin temperature of static white output, whether you want cool, neutral or warm white output you can create all of those with or without the addition of color.
What is RGB What is RGBW What is CCT What is Static White

How to Control RGBCCT 5CH Lighting

RGB+CCT Controllers, Amplifiers & Programmable DMX Control

Our common anode RGBW LEDs are a five wire setup consisting of one positive wire and four negative wires to each color. We stock basic RGBW controllers that allow you to control the color changing and white output seperatealy and more complicated smart controllers that allow more specicif color settings. Lastly you can use a 4 channel DMX decoder to connect and control with an addressable DMX control system.

Related Categories

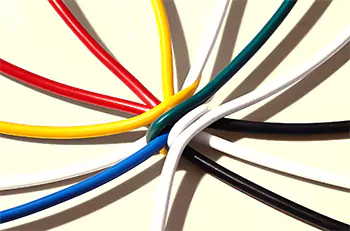

6 Conductor RGB+CCT LED Wire & Connectors 6 Conductor RGB+CCT LED Wire & Connectors

Our six conductor LED wires and connectors are designed for RGB + Tunable White low voltage LED lighting applications. These systems consist of five colors (Red, Green, Blue, Cool White, Warm White) plus the addition of a common anode positive wire. Designed for use with our RGBCCT LED Strip lights and controllers.

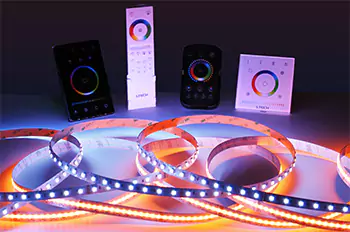

RGBCCT Color + Tunable White LED Controllers RGBCCT Color + Tunable White LED Controllers

Explore our variety of RGB CCT Controllers for 5 color plus tunable white LED lighting products. No matter the application we have stand alone and complete smart control systems ranging from app, remote, and wall mount controls. These products are intended for use with 5 color direct current (DC) and constant voltage (CV) LED lighting.

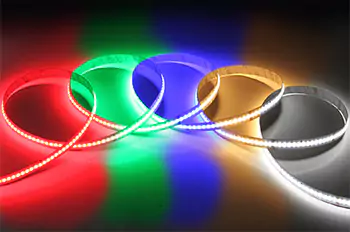

RGBCCT LED Strip Lights - RGB Plus Tunable White RGBCCT LED Strip Lights - RGB Plus Tunable White

Unleash the full potential of RGB plus white LED strip lighting by combining color changing and tunable white 2300-6500K into a single roll of tape. Whether you want to set the mood, complete a task or simply turn the party up, you can choose an endless amount of color variations along with warm& cool white outputs that can be dimmed to adjust the color temperature. Using this strip you basically are getting three different strip variations RGB, Cool White and Warm White, combined into one. So whether you want to set the color of your lighting, or use a single color white light, or a combination of both, the RGBCCT strip gives you it all.

5 Channel RGB+CCT DMX LED Decoders 5 Channel RGB+CCT DMX LED Decoders

5 Channel RGB + CCT tunable white DMX decoders allow you to control your 5 color strip lights and fixtures using a DMX control system. Address and dimming frequency settings are built into each device with various outputs for easy integration to your DMX512 lighting control system.
