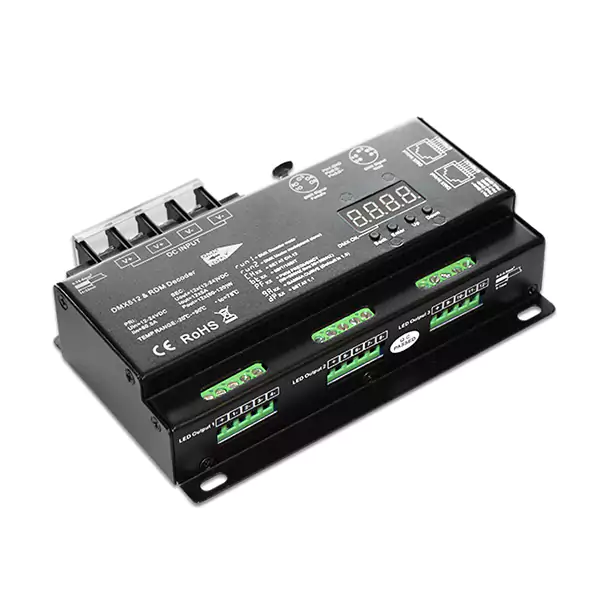

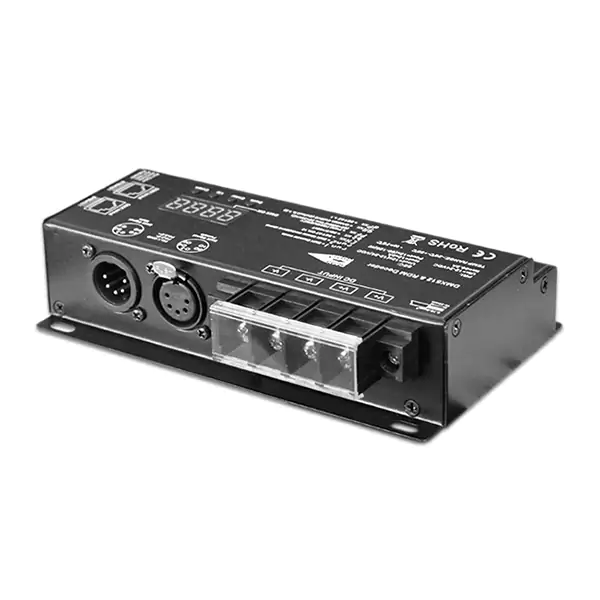

Our UL Recognized adjustable flicker free 12 channel DMX LED decoder has three RGBW outputs to enable smooth control of three 12-24VDC 4 Color LED Lights or fixtures using a DMX control signal. Built in adjustable PWM dimming control ranging from 500Hz - 30kHz makes this is the ideal decoder for lighting and video professionals who require smooth fading and color changing effects with no flicker or noticeable steps. The PWM output frequency can be set from 500HZ ~ 30K HZ with an 8bit or 16bit resolution, and a dimming curve gamma value from 0.1~9.9 allowing for fluid dimming and color control functions. Using the analog display choose from 1CH output (12 single channels) or 12CH output (4 RGBW channels) and set your starting DMX address. XLR5 or RJ45 connectors give you plenty of options to input and output your DMX signal. Small screw down connectors are used for your DC input and output. An impressive 5 amps per channel allows you to control up to 720W (12VDC) or 1,440W (24VDC) per 12 channels. This product is intended only for use with 12-24VDC common anode style RGBW, RGB, or single color LED lighting. A 12-24VDC low voltage driver is required to power this unit and must be large enough to power the load of the light output. This product is UL Recognized, RoHS, and CE approved.
