BS3 White LED Modules, 3 Osram Chips 170° - 12VDC

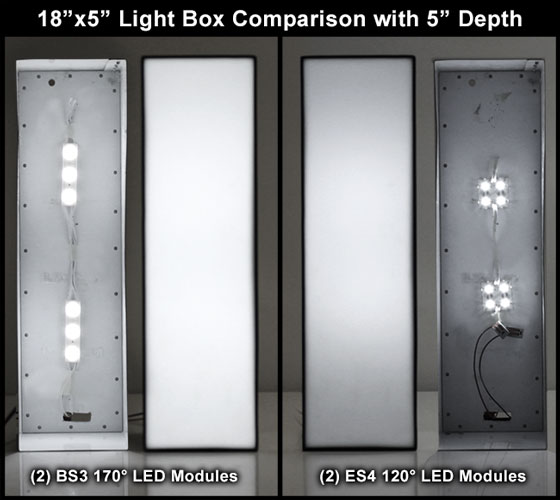

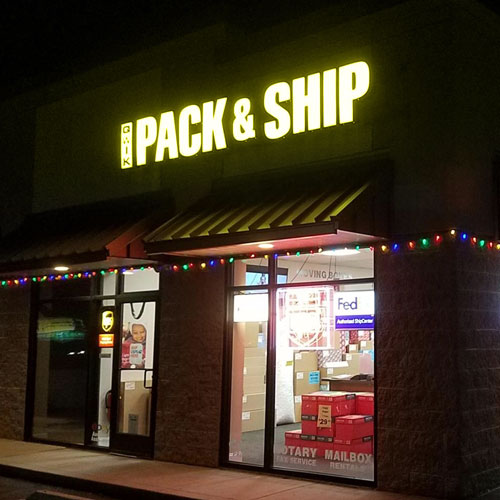

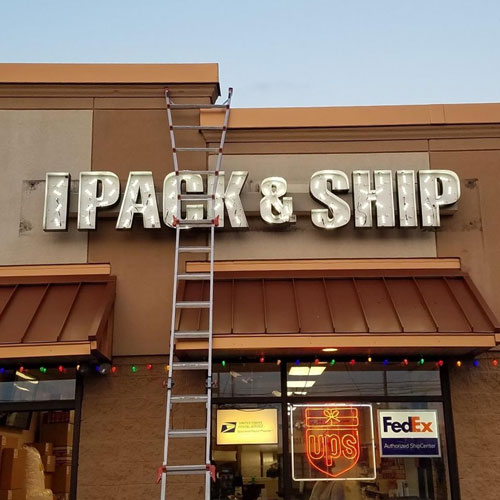

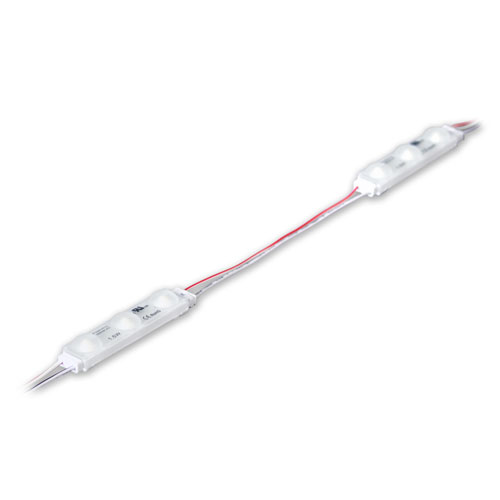

White LED Module 170 Degrees Two Modules Beam Angle Illustration Module Comparison BS3 Sign BS3 Sign Love Channel Letters Viking Arms
White LED Module 170 Degrees Two Modules Beam Angle Illustration Module Comparison BS3 Sign BS3 Sign Love Channel Letters Viking Arms

SKU: MD-LB-BS3-W

Order will ship: Thursday, Dec 05 * If placed by 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S. * Excluding oversized items. See Exclusions
Buy
Discount
You Pay
5+
5% off
$104.50
10+
8% off
$101.20
15+
10% off
$99.00

Description

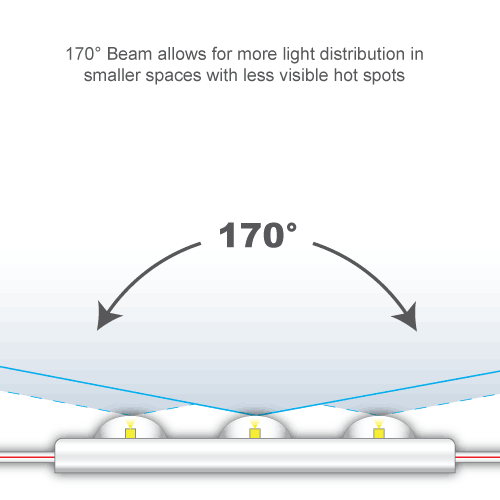

The BS3 Osram powered LED Module uses the latest technology and a special lens to create a 170° beam angle that is 50° wider than our standard LED Modules. The wider beam angle allows for more light distribution in smaller spaces with less visible hot spots when lighting signs and displays. Boasting 1.5W and 150lm per module as well as an IP65 water-resistant rating these modules are bright enough for any sign, display, task or back lighting project. The three surface mount 5630 Osram LED Chips are mounted to an aluminum heat sink which is encapsulated in a PVC housing for a sleek and durable module design. 50 Modules maximum can be connected in one serial length, for larger jobs you must wire multiple 50 module units in parallel to the 12VDC power source. These modules have a 1 year warranty and are UL, CE and RoHS approved.

Specifications

SPECIFICATIONS
ModelBS3 White LED Modules, 3 Osram Chips 170°
SKUMD-LB-BS3-W
Dimensions3.06" x .61" x 0.41" H
Connection Type2 Wire (+/-)
LEDs Chip Size5630
LEDs Quantity3 LEDs per Module
Module Spacing8.23" Center to Center
Modules Per Foot1.41 Modules
Input Power12VDC
Watts1.5 Watts per module
Beam Angle170°
Lumens150lm per Module
Kelvin6,500K
RatingIP65 Water-resistant
Operating Temp-4° ~ 122°F
Max Serial Connection50 Modules
Lifetime Hours50,000 Hours
CertificationCE, RoHS
Warranty Period1 Year
