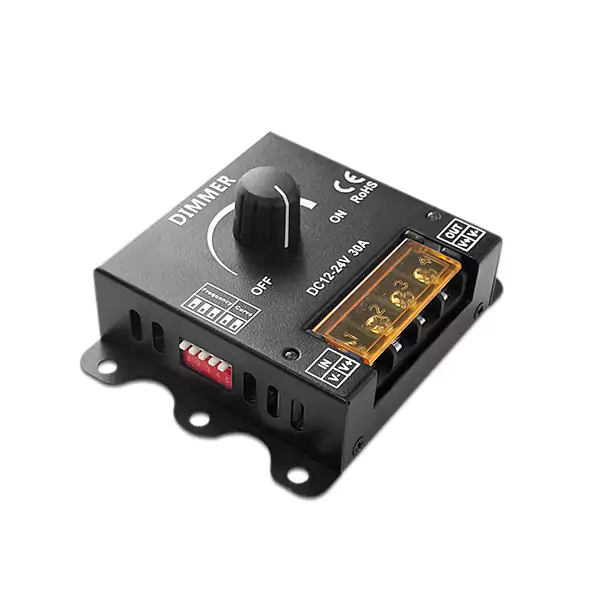

Flicker Free LED Knob Dimmer, Frequency Adjustable, 12-24VDC 30A

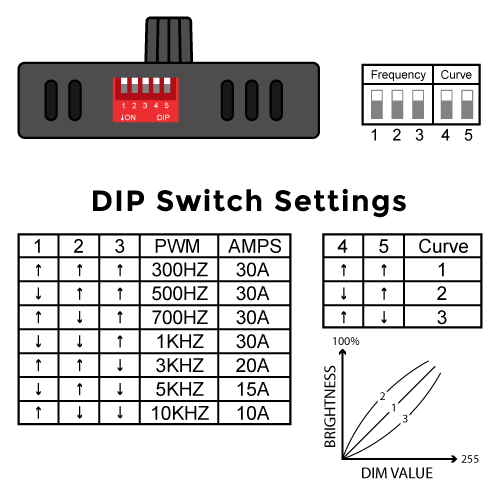

Knob Dimmer Knob Dimmer Switches Frequency Settings
Knob Dimmer Knob Dimmer Switches Frequency Settings

SKU: LC-LF-2DIM

Order will ship: Thursday, Jul 25 * If placed by Thursday, Jul 25, 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S. * Excluding oversized items. See Exclusions
Buy
Discount
You Pay
6+
5% off
$23.75
15+
8% off
$23.00
30+
12% off
$22.00
75+
15% off
$21.25

Description

The frequency adjustable LED Light Dimmer uses a knob to dim your 12-24VDC constant voltage LED lighting products from 0-100% and dip switches to change the PWM frequency for flicker free applications. The impressive 30 amp output allows for dimming control of larger circuits without the need of additional accessories, when set to higher PWM frequencies the maximum load decreases. DC input and output wires can easily be secured using the screw down connectors. The small size of this PWM dimmer makes it easy to conceal and set the lights to the brightness level you prefer. Use this dimmer for LED strip lights, LED modules, LED light Ribbon or for dimming pretty much any one color LED product with 12-24VDC constant voltage power requirements.

Specifications

ModelPWM LED Knob Dimmer
SKULC-LF-2DIM
Dimensions3.35" x 2.44" x 1.38"H
Input Connection2 Wire (+/-)
Output Connection2 Wire (+/-)
Input Power12 - 24VDC
Output Power10A - 30A
Maximum Watts12VDC: 120W - 360W
24VDC: 240W - 720W
RatingIndoor
Operating Temp-4° ~ 140°F
Warranty Period1 Year
Previous Mode on Power CycleYes
Dimming Levels0-100%

Reviews

Write a Review

Note: * Indicates a required field

Review Information

(email address will not be displayed)
Your Rating
reCAPTCHA Verification

PWM LED Knob Dimmer, 12-24VDC 30A


Dimmer knob worked perfectly. It would be nice if the switch could mount to the power supply.

Sep 10, 2020 | Terry McKeithen
