SKU: LC-SR-SC-REM

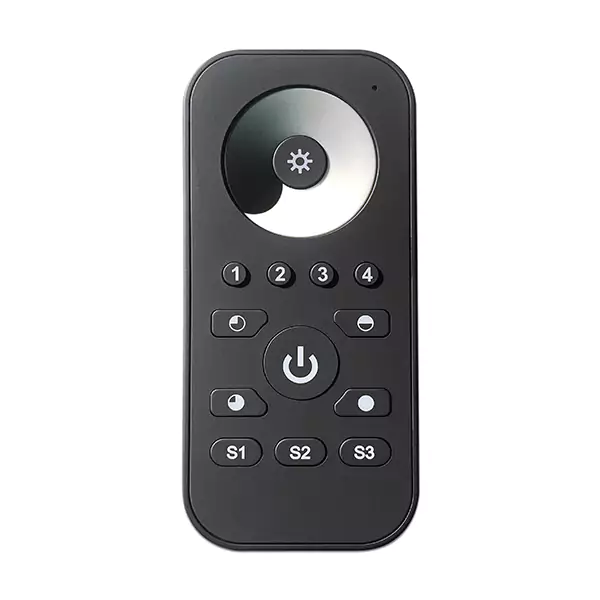

The 4 Zone LED Sync Dimmer uses 2.4GHZ RF wireless technology to power and dim multiple low voltage LED lighting zones using a stylish and simple remote control. Multiple receiver choices make this a go to controller for any indoor or outdoor single color 12-36VDC lighting system. Each RF remote has quick dimming level buttons and the ability to save your favorite lighting settings. Also included is a magnetic wall holster with mounting screws to keep the remote from being misplaced. Use the WiFi receivers to control from the remote control or from your phone with the EasyLighting app. WiFi receivers can be used as stand alone units or paired to your local network. Indoor and outdoor rated receivers are available, see specifications below for more details.
| RF Remote Specs | |
| Model | 4 Zone RF Remote LED Dimmer |
| Remote SKU | LC-SR-SC-REM |
| Remote Dimensions | 4.72"L x 2.17"W x 0.67"H |
| Input Power | 3xAAA Batteries (not included) |
| Rating | IP20 |
| Operating Temp | 32° ~ 104°F |
| Previous Mode on Power Cycle | Yes |
| RF Remote Radius | 100ft (line of sight) |
| Dimming Levels | 1-100% |
| Certification | RoHS, CE |
| Warranty Period | 1 Year |
| IP20 RF Receiver | |
| SKU | LC-SR-SC-REC |
| Dimensions | 3.74"L x 1.46"W x 0.79"H |
| Input Connection | 2 Wire (+/-) |
| Output Connection | 2 Wire (+/-) |
| Input Power | 12 - 36VDC |
| Output Power | 8A x 1CH |
| Maximum Watts | 12VDC - 96W 24VDC - 192W |
| Rating | IP20 |
| Operating Temp | -4° ~ 122°F |
| Warranty Period | 1 Year |
| IP20 RF/WiFi Receiver | |
| SKU | LC-SR-RGBW-REC-WI |
| Dimensions | 7.01" x 2.24" x 0.83"H |
| Input Connection | 2 Wire (+/-) |
| Output Connection | 2 Wire (+/-) x 4CH |
| Input Power | 12 - 36VDC |
| Output Power | 5A x 4CH |
| Maximum Watts | 12VDC - 240W 24VDC - 480W |
| Rating | IP20 |
| Operating Temp | -4° ~ 122°F |
| App Name | EasyLighting |
| Certification | UL Recognized, RoHS, CE |
| Warranty Period | 1 Year |
| IP67 RF/WiFi Receiver | |
| SKU | LC-SR-RGBW-RCWP |
| Dimensions | 7.11" x 2.90" x 1.50"H |
| Input Connection | 2 Wire (+/-) |
| Output Connection | 2 Wire (+/-) x 4CH |
| Input Power | 12 - 36VDC |
| Output Power | 8A x 4CH |
| Maximum Watts | 12VDC - 384W 24VDC - 768W |
| Rating | IP67 |
| Operating Temp | -4° ~ 122°F |
| App Name | EasyLighting |
| Certification | UL Recognized, RoHS, CE |
| Warranty Period | 1 Year |
