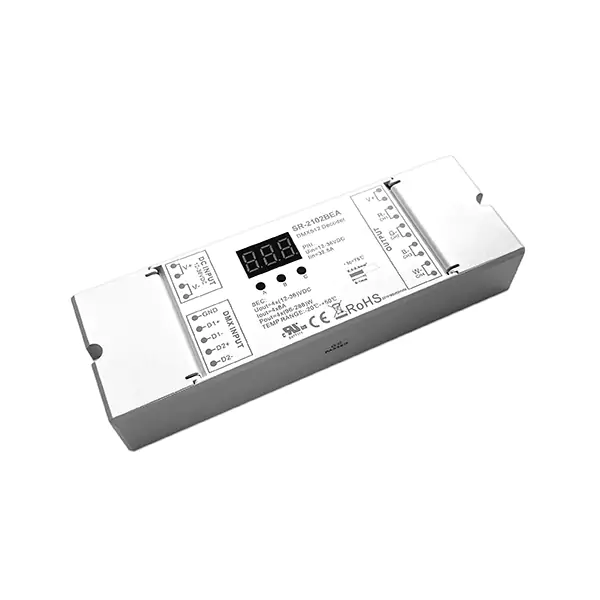

Use this 1 to 4 channel DMX decoder to control any single color, RGB, or RGBW 12-36VDC constant voltage LED lighting product from a DMX control signal. With an impressive 8A per channel output the decoder can control a maximum load of 384W using 12VDC or 768W using 24VDC. Keep in mind that if you are controlling RGB lighting you will only be using 3 channels so the maximum load will be 288W using 12VDC or 576W using 24VDC. Choose your DMX address, PWM frequency and dimming curve from the digital display on the front of the unit. All connections are screw down type.
| Item | SKU | DC Input | Max Current | Max Load | PWM Frequency | Dimming Curve | RDM Control | Rating | Operating Temp | Warranty |
|---|---|---|---|---|---|---|---|---|---|---|
| DMX Decoder | LC-SR-DMX4-FF | 12-36VDC | 8A x 4CH | 12V-384W 24V-768W |
200Hz ~ 35kHz | 0.1 ~ 9.9 gamma | Yes | IP20 Indoor | -4 ~ 131°F | 1 Year |
