SKU: LC-LT-1RGBA
This signal amplifier is capable of extending your 5-24VDC RGB control signal an impressive 8 amps x 3 channels. Capable of larger loads than our other signal amplifiers this amplifier can extend your control signal 288W at 12VDC or 576W at 24VDC. 3 Channel RGB signal amplifiers can be used to add more RGB LED modules, RGB LED strip lights or any 5-24VDC constant voltage RGB LED Lights to your existing RGB LED controller, allowing for unison color changing from your RGB LED controller. You can also use this amplifier with a single color PWM dimmer to extend your dimming to 3 outputs of 96W at 12VDC or 3 outputs of 192W at 24VDC. For use with PWM dimmable 5-24VDC Constant Voltage power systems only. For use with 4 pin, 3 loop, common anode style RGB Lighting. The input power and RGB signal wires are connected by screw down type wire connections.
| SPECIFICATIONS | |
| Model | RGB LED Signal Amplifier, 8A x 3CH |
| SKU | LC-LT-1RGBA |
| Dimensions | 5.83" x 3.43" x 0.91"H |
| Connection Type | 4 Wire RGB(+) |
| Input Power | 5-24VDC |
| Output Power | 8A x 3CH |
| Watts | 12VDC: 288W 24VDC: 576W |
| Rating | Dry |
| Operating Temp | -22°~149°F |
| Warranty Period | 1 Year |

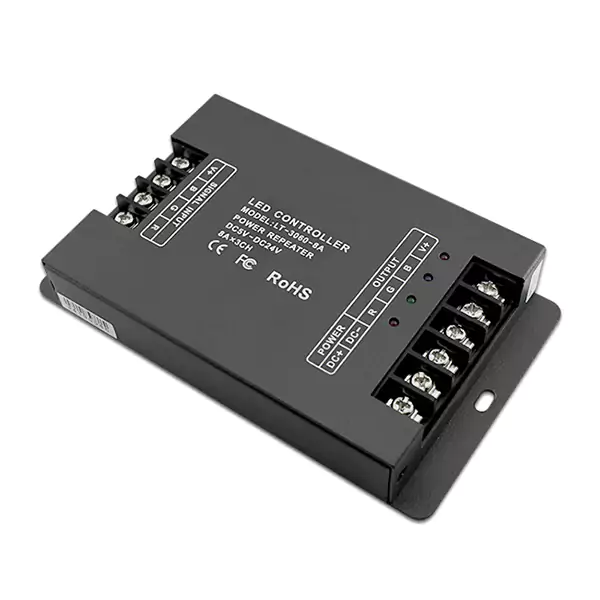

RGB LED Signal Amplifier / Repeater, 5-24VDC 8A/CH
RGB LED Signal Amplifier / Repeater, 5-24VDC 8A/CH
Ribbon Star, RGB 180 LED Strip Light - UL 12VDC
SKU: RL-SC-RS-RGB1-3M View Product Page
These UL Listed Ribbon Star RGB LED strips have super bright 3 in 1 RGB SMD LEDs on board and can produce 16 million shades of brilliant color. There are 3 LEDs for every 2 inches. This 118" (3m) LED strip can be cut every 2 inches and has many quick connnection options, for easy connection and use. Comes with 3M™ mounting tape on the back, for the best long-term mounting solution. 43W of constant voltage 12VDC power needed for this 118" strip (4.3W per foot). This RBG LED Light strip can be used for entertainment lighting, bars, casino lights, full color cove lights, RGB backlighting and in theater sets; Comes with two quick connectors. See link below for demonstration video. UL Listed for class 2 luminaries and fixtures, RoHS and CE approved.
Ribbon Star, RGB 180 LED Strip Light - UL 24VDC
SKU: RL-SC-RS-RGB24-3M View Product Page
These UL Listed Ribbon Star RGB LED strips have super bright 3 in 1 RGB SMD LEDs on board and can produce 16 million shades of brilliant color. There are 6 LEDs for every 4 inches. This 118" (3m) LED strip can be cut every 4 inches and has many quick connection options, for easy connection and use. Comes with 3M™ mounting tape on the back, for the best long-term mounting solution. 43W of constant voltage 24VDC power needed for this 118" strip (4.3W per foot). This RBG LED Light strip can be used for entertainment lighting, bars, casino lights, full color cove lights, RGB backlighting and in theater sets; Comes with two quick connectors. See link below for demonstration video. UL Listed, RoHS and CE approved.
