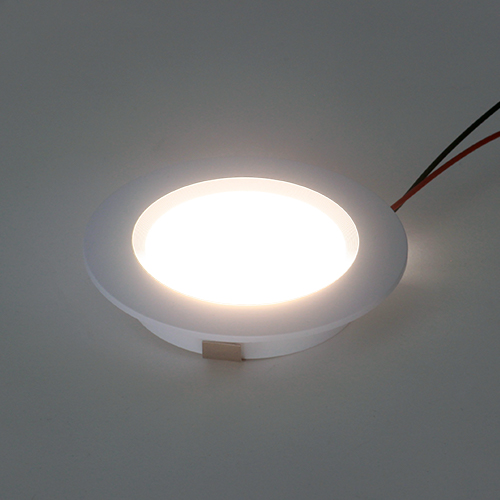

2.7" Round Slim LED Puck Light Daylight White - 3W, 12/24VDC

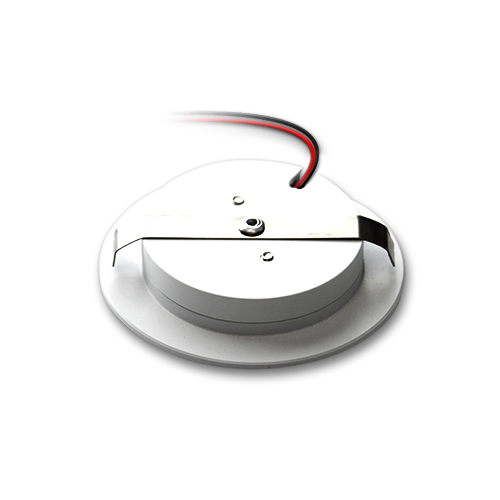

Puck Light Puck Dimensions Bottom Puck Daylight White
Puck Light Puck Dimensions Bottom Puck Daylight White

SKU: LD-LF-25R1-DW

Order will ship: Thursday, Jul 25 * If placed by Thursday, Jul 25, 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S. * Excluding oversized items. See Exclusions
Buy
Discount
You Pay
5+
5% off
$10.45
10+
10% off
$9.90

Description

Our slim 12V PWM dimmable LED Puck Lights are an easy to use and aesthetically pleasing light fixture for cabinets, displays, shelves and more. Each light simply needs a cut hole of 2.36" Diameter (60mm) and minimal surface thickness to mount the 0.55" tall fixture. Consuming only 3 watts of 12 or 24VDC power per light, these are a low cost and economical indoor lighting solution. Constructed of 15 pieces of 2835 size SMD LEDs, a white aluminum housing with a frosted plastic cover that blends the lights for a nice diffusion. A 7.5" wire lead comes off the backside of the fixture for connection to a 12-24V power source or PWM dimmer. The daylight white output is in the 4000-4500 kelvin range with 220 lumens per fixture. Each light is CE, RoHS approved and has a 50,000 hour lifetime span.

Specifications

SPECIFICATIONS
Model2.7" Round Slim LED Puck Light Daylight White
SKULD-LF-25R1-DW
Dimensions2.68" Diameter x 0.55"H
Cut Hole2.36" Diameter (60mm)
Beam Angle120°
Color TemperatureDaylight White, 4000-4500K
Lifespan50,000 Hours
Input Voltage12 or 24VDC
Watts3 Watts
Lumens220 lm
CRI>80
Ambient Temperature-4 ~ 113°F
CertificationCE, RoHS
RatingIP52
Warranty Period2 Years

Reviews

Write a Review

Note: * Indicates a required field

Review Information

(email address will not be displayed)
Your Rating
reCAPTCHA Verification

Good product


I installed the lights in some upper glass door cabinet and under some floating shelves. They popped right in a 2 1/4 inch hole. The color rendition is good and they have plenty of lumens.

Nov 16, 2022 | Jerry V
