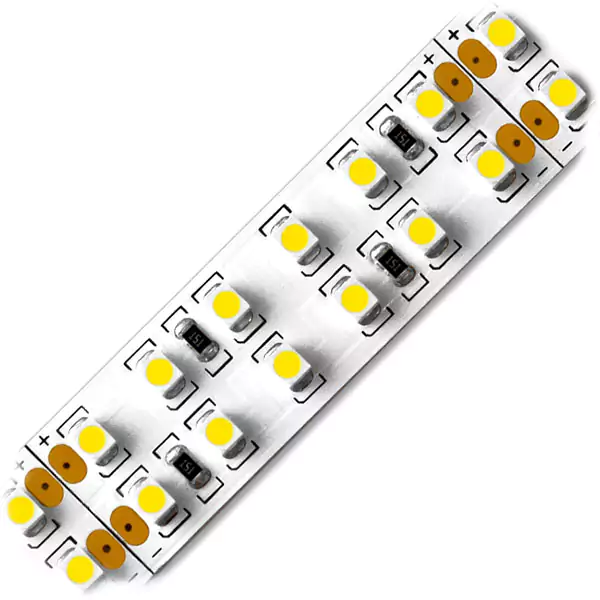

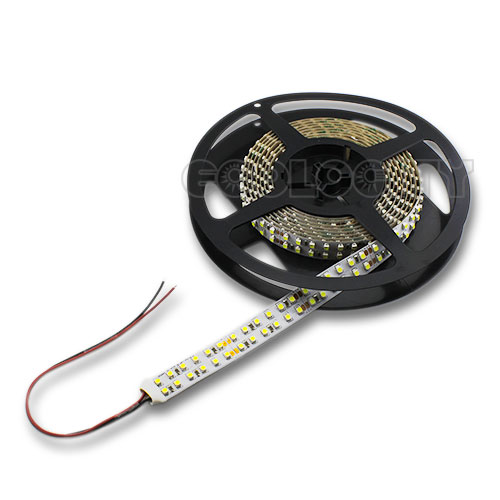

The Ribbon Star Doublewide, White flexible LED Strip Light is basically two rolls of LED Strip combined into one. With twice the amount of LEDs and a wider PC board the doublewide led strip has a broader beam angle as well as higher lumen output than a mid-level strip light. The 24VDC power input allows for longer serial connections with less voltage drop, 30ft max. This 118" (3m) ribbon has one soldered lead and comes with two quick connectors to bare lead wires. Comes with 3M™ VHB™ mounting tape on the back, for the best long-term mounting solution. Cut lines per 1.96" make this product suitable for any project length. 12 SMD LEDs per 1.96". Consuming only 5.4W of power per foot this is a great low energy and eco friendly lighting product. Great for use under cabinets, ceiling coves, toe kicks, above cabinet lighting, accent lighting, display lighting, signage lighting or any other lighting project requiring a bright and long lasting light. 6000-6500K color temperature, for dry indoor use only. CE and RoHS approved.
|Click For Product Data Sheet|
|Click For Strip Light Soldering Video|
|Click For Electrical Load Calculator|
|Model||Ribbon Star Doublewide, White LED Strip 24V - 118" (3m)|
|Dimensions||118"L x 0.64"W x 0.07"H|
|LED Quantity||12 SMDs per 1.96"|
|LEDs Per Strip||720 SMD LEDs|
|DC Power||24VDC Constant Voltage|
|Watts||5.4W per foot|
|Product Lifetime||50,000 Hours|
|Warranty Period||2 Years|
For B2B or Large Quantity Price Info Click Here
(5) Ribbon to Ribbon Connector Ribbon Star Doublewide
SKU: RA-SC-RSD-RR-5 View Product Page
Use this connector to make an electrical connection between two separate pieces of our 16mm wide Ribbon Star Doublewide strip lights. To use simply pull out the plastic tab, insert the strip light and then pinch back into place. Sold in sets of 5, compatible with our single color indoor strips with 16mm wide PC board.
(3) Ribbon to Wire Connector Ribbon Star Doublewide
SKU: RA-SC-RSD-RW-3 View Product Page

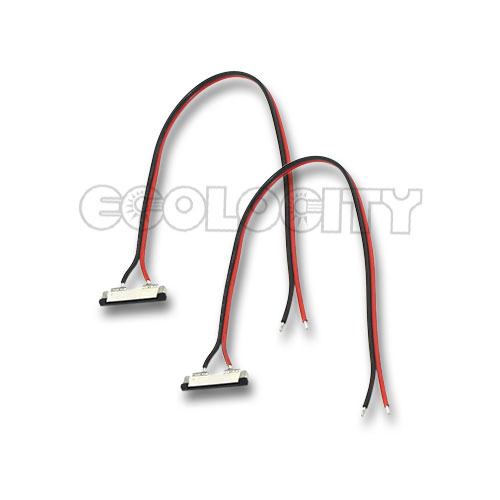

Use this connector on our Ribbon Star Doublewide LED Strips to add 6 inches of lead wire to connect ribbon to a power supply, dimmer or to other sections of ribbon. Sold in sets of 3. For use with 0.64" (16mm) doublewide ribbon products only.
Mean Well LED Power Supply Three Output 200W - 24VDC
SKU: PS-MW-200-24 View Product Page
A Mean Well 200W 24VDC LED Power Supply / Transformer, with a selectable AC input of either 100-120VAC or 200-240AC and 24VDC output through three terminals. Simple to use screw down style terminals make for an easy and secure connection. Built in short circuit, overload, over voltage, and over heating shut down protection guards the unit from any improper use. This power supply can also withstand a 300VAC input surge for up to 5 seconds. It can be used to connect 24VDC LED Modules, LED Lights, LED Light Ribbons, RGB LED lighting and other 24VDC Constant Voltage LED Lighting products. UL Recognized, RoHs and CE approved. Can connect up to 180 one watt led lights. Only install face up or in a manner that the cooling grate faces upwards with sufficient breathing space.
GIP Aluminum Extrusion for Curved and Square Covers - 1" Wide
SKU: EX-KL3-1 View Product Page
