16.4ft Waterproof Dual Bending Flexible LED Wall Washers - ETL Listed - 24VDC

Flexible LED Wall Washer Dual Flex LED Wall Washer White Flexible Wall Washer Flexible Wall Washer Shine 10 Mounting Clips
Flexible LED Wall Washer Dual Flex LED Wall Washer White Flexible Wall Washer Flexible Wall Washer Shine 10 Mounting Clips

SKU: LN-DX-NE-WALL

$219.99
Order will ship: Wednesday, May 28 * If placed by 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S. * Excluding oversized items. See Exclusions
Color
Buy
Discount
You Pay
6+
5% off
$209.00
11+
8% off
$202.40
21+
12% off
$193.60

Description

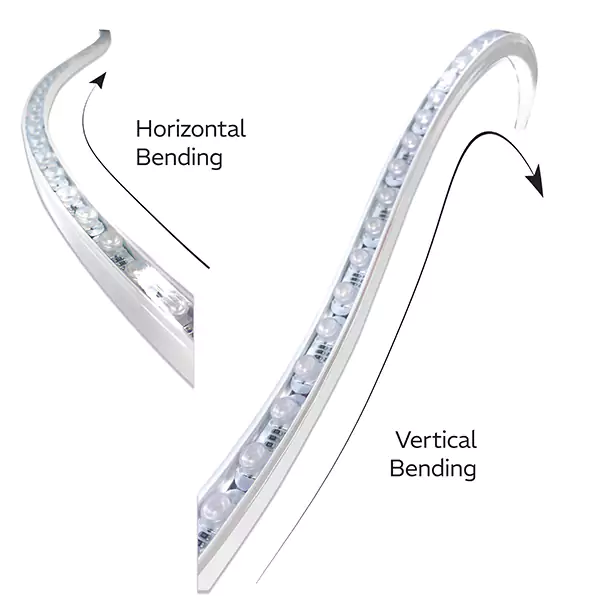

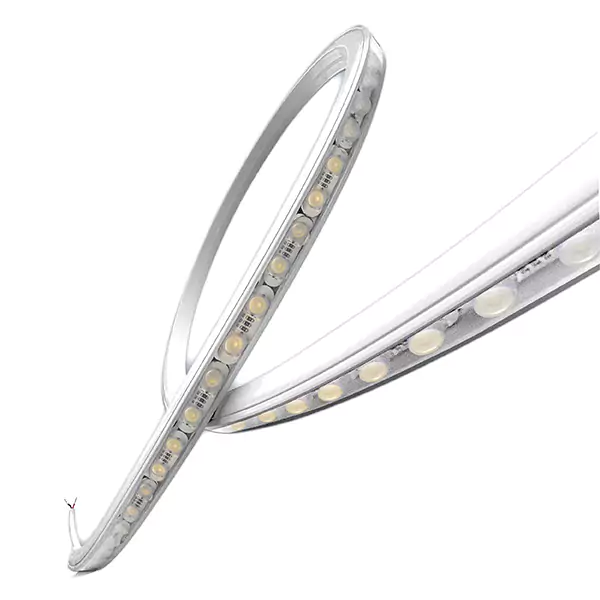

Our 5 meter long linear flexible LED Wall Washers are a special new product designed with a specialized lens outputting a 30 degree beam angle for casting illumination on walls, ceilings, buildings and architectural features. The free form 3D bending allows for a minimum of ⌀200mm bending along both vertical and horizontal axis. The low power draw along with IP65 high quality silicone housing makes this an ideal linear lighting source for indoor and outdoor projects requiring an extended area of radiance from a single light source. This product requires 24VDC constant voltage input with a max load of 4.88 watts per linear foot of lighting.

Specifications

SKU Color Kelvin Lumens CRI Voltage Power Rating Beam Operating° Max Serial Lifespan Certification Warranty

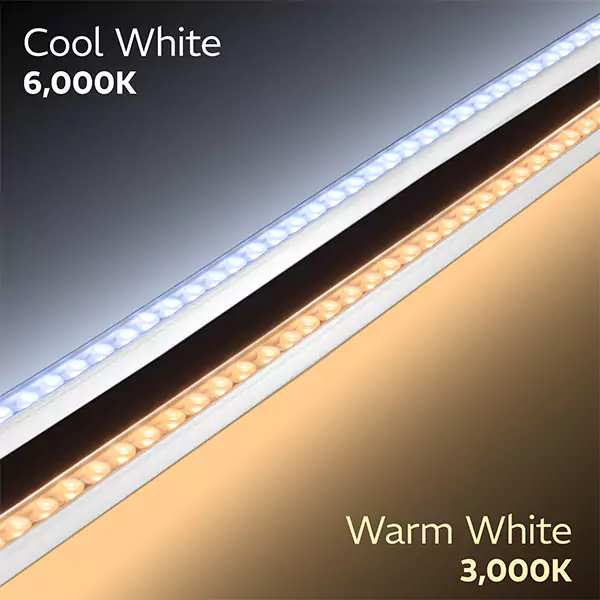

LN-DX-NE-WALL-WW-5M Warm White 3,000K 354 lm/ft ≥90 24VDC 4.88 W/ft IP65 30° -4°~131°F 16.4ft 30K Hours ETL Listed 2 Years
LN-DX-NE-WALL-W-5M Cool White 6,000K 360 lm/ft
Specification Sheet

Dimensions

Length Width Height Wire Lead Wire Gauge Cuttable Sections Shipping Weight
16.4'(5m) 0.65"(16.5mm) 0.65"(16.5mm) 11.81"(30cm) 20AWG 1.61"(41mm) 3.3lbs
Flexible Wall Washer Dimensions

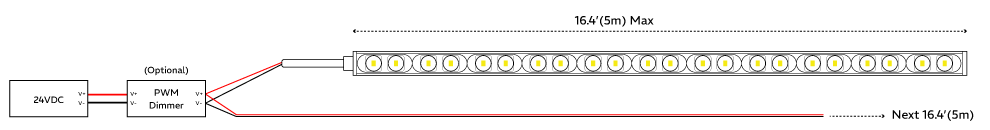

Wiring

Flexible Wall Washer Wiring

Reviews

Product Rating

Write a Review
Create a Review Your Rating:

- There are currently no reviews for this product

Questions

(0) Product Questions

Have a Question?
Ask a Question

- There are currently no questions for this product

Products Used for Installation

Required to maintain waterproof rating after cutting
How to Use LED Fixtures?
Required Required for standard DC output (Do use with DC controls)
Determine a Sufficient Power Supply?
Optional recommended for splitting and protecting wire connections
How to Wire LED Lighting
