Ribbon Star MegaLux 12mm LED Strip Lights - 288 LEDs per Meter - UL 24VDC - IP20 & IP67

High Brightness 2835 Strip Light Bright Warm White Strip Light Neutral White Strip Light Cool White Strip Light Ambient Luminaires
High Brightness 2835 Strip Light Bright Warm White Strip Light Neutral White Strip Light Cool White Strip Light Ambient Luminaires

SKU: RL-SC-MGL

Order will ship: Wednesday, May 21 * If placed by 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S. * Excluding oversized items. See Exclusions
Color
IP Rating
Voltage
Length

Description

Our extra bright MegaLux 12mm LED strip light packs a super bright punch in a small and compact package. The 12mm width allows it to fit inside many standard sized channels to create extra bright and efficient custom luminaires and linear ambient lighting both indoors and out. A class B high efficiency rating of 187 lumens per watt ensures maximum illumination with minimal power output. With both IP20 indoor and IP67 waterproof models available this strip light can be used in outdoor linear applications that require high lumen output with minimal power draw. Each 24VDC strip light can be dimmed by dimmable power supply or low voltage PWM dimmer. Each 3 meter reel of IP67 waterproof strip include a waterproof connector on each end, with two adapters to bare lead wire, 2 silicone end caps and 12 silicone mounting brackets.

Specifications

SKU Color Kelvin Lumens Watts Voltage CRI Beam Angle Rating Max Serial

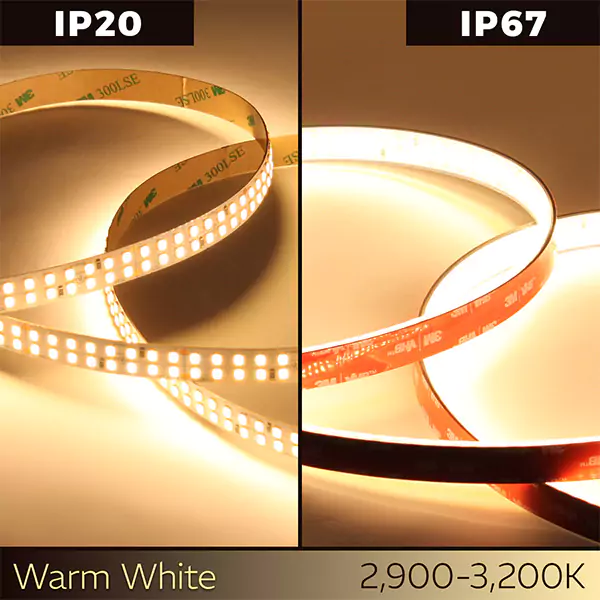

RL-SC-MGL-WW-3M Warm White 2900-3200K 1,791 lm/ft 10.67 W/ft 24VDC >80 120° IP20 15ft
RL-SC-MGL-WW-SE-3M IP67

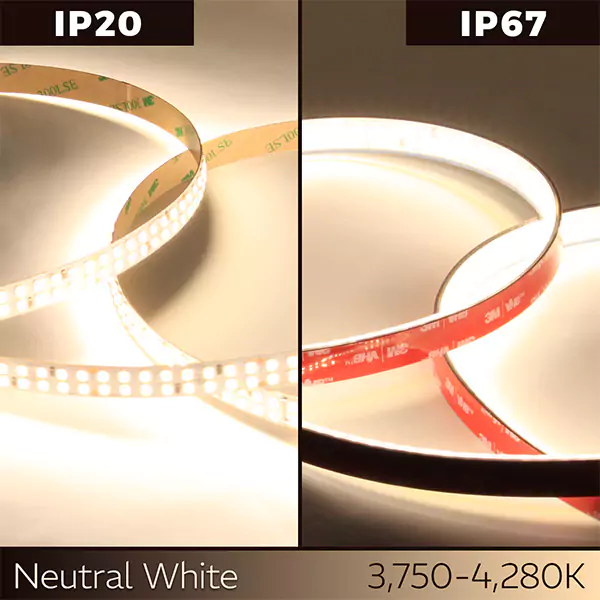

RL-SC-MGL-NW-3M Neutral White 3750-4280K 1,888 lm/ft IP20
RL-SC-MGL-NW-SE-3M IP67

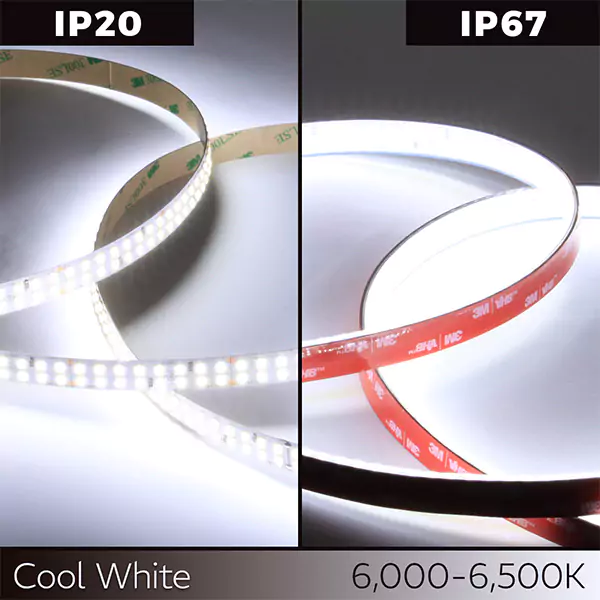

RL-SC-MGL-W-3M Cool White 6000-6500K 1,990 lm/ft IP20
RL-SC-MGL-NW-SE-3M IP67
Specification Sheet

Dimensions

Rating Length Width Height Wire Lead Wire Gauge Cuttable Sections Shipping Weight
IP20(Non-Waterproof) 9.84'(3m) 0.47"(12mm) 0.07"(1.7mm) 7.87"(20.0cm) 18AWG 2.19"(55.56mm) 0.3lbs
12mm 2835 Strip Dimensions
Rating Length Width Height Wire Lead Wire Gauge Cuttable Sections Shipping Weight
IP67(Waterproof) 9.84'(3m) 0.54"(13.75mm) 0.22"(5.7mm) 6.69"(17.0cm) 18AWG 2.19"(55.56mm) 0.7lbs
12mm 2835 Strip Dimensions

Reviews

Product Rating

Write a Review
Create a Review Your Rating:

- There are currently no reviews for this product

Questions

(0) Product Questions

Have a Question?
Ask a Question

- There are currently no questions for this product

Products Used for Installation

Required Required for standard DC output (Do use with DC controls)
Determine a Sufficient Power Supply?
