Waterproof High Speed RGBW LED Signal Amplifier, 12-24VDC 4Ax4CH

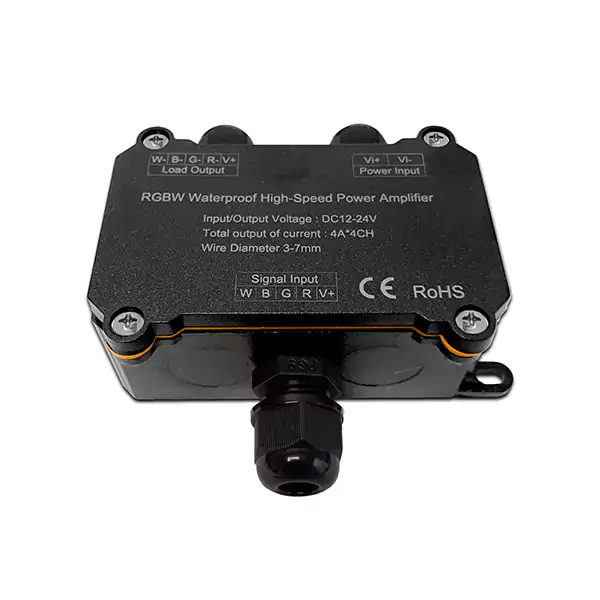

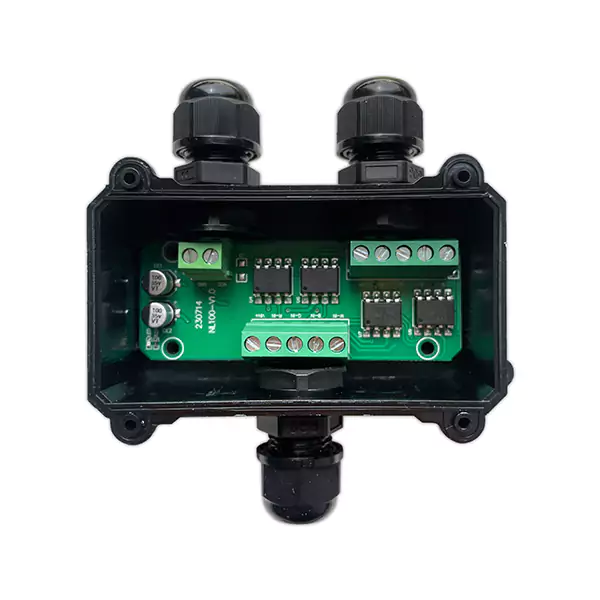

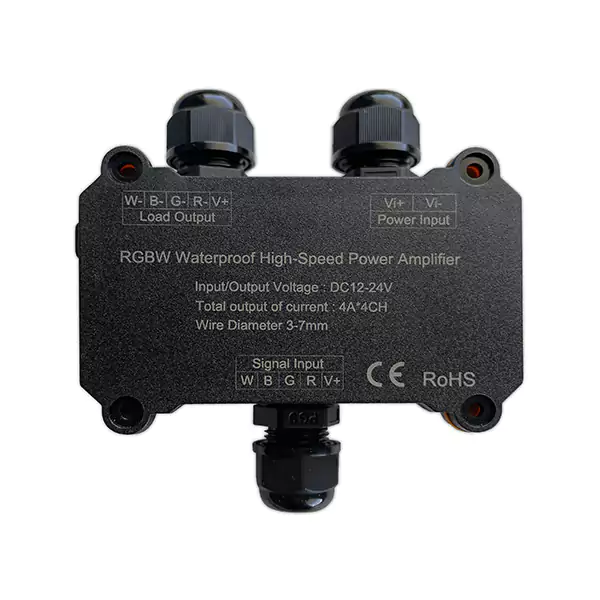

IP68 RGBW Amplifier Waterproof RGBW Amplifier RGBW Amplifier Interior
IP68 RGBW Amplifier Waterproof RGBW Amplifier RGBW Amplifier Interior

SKU: LC-LN-4CH-AMP-WP

Order will ship: Friday, Jun 06 * If placed by 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S. * Excluding oversized items. See Exclusions
Buy
Discount
You Pay
6+
5% off
$23.75
15+
8% off
$23.00
30+
12% off
$22.00
75+
15% off
$21.25

Description

The High Speed IP68 Waterproof RGBW LED Signal Amplifier can take any common anode 12-24VDC four channel PWM control signal and amplify it to add up to 16 amps (4Ax4CH) of additional four-color low voltage lighting from the same control source. With an IP68 waterproof ABS housing and connected PG9 cable glands, this power repeater can be used in both wet and dry environments and provides strain relief as well as protection from dust and moisture. With high-speed reactivity and 0.1-100% dimming capability this is an affordable option for larger installs requiring large areas of synchronized control. The interior screw down terminals makes connections easy and exterior mounting tabs make permanent mounting simple with included mounting screws.

Specifications

SKU DC Input Max Current Max Load Rating Operating Temp Input Signal Dimming Range Warranty
LC-LN-4CH-AMP-WP 12-24VDC 4A x 4CH (16A) 12VDC - 48W/CH (192W)
24VDC - 96W/CH (384W)
IP68 -4 ~ 140°F PWM 0.1-100% 1 Year
Specifications Sheet

Dimensions

Length Width Height Gland Cable Diameter Shipping Weight
4.43"(112.5mm) 4.16"(105.6mm) 1.67"(42.4mm) PG9 3-7mm 0.4lbs
RGBW Amp Dimensions

Wiring

RGBW Amp Wiring
