Mean Well Waterproof LED Power Supply 480W - 12VDC
SKU: PS-MW-480-W-12
Description

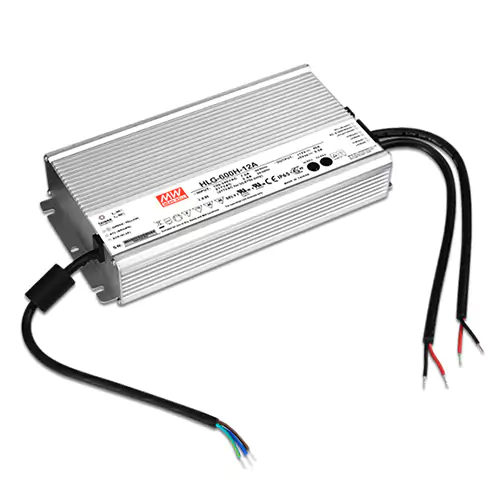

This product is a waterproof IP65 rated Mean Well brand 480W, 12VDC LED transformer designed to convert 100-240VAC or 277VAC power to 12VDC. With a 40A maximum output this transformer can drive up to 480 watts of 12VDC constant voltage LED lights. Cooled by free air convection this power supply doesn't require a noisy fan for cooling and can be used in indoor applications where fan noise is bothersome. The 100-240VAC input requires a minimum of a 7 amp circuit to carry the current on full load and the 277 would require at least 2.9 amps. The 3 conductor AC input wire (18AWG) and both 2 conductor DC output wires (14AWG) are 11.5" long and require a bare wire connection. It is recommended that each DC output drives no more than 20 amps of current. Each Mean Well HLG-600H-12A transformer is equipped with built in PFC (Power Factor Correction), short circuit, over current, over voltage, and over temperature protection and can withstand a 5G vibration test. This product is intended for indoor / outdoor use, non-submersible, non uv-proof, UL recognized, RoHS, FCC and CE approved.
Specifications
SPECIFICATIONS | |
Model | 480W, 12VDC Waterproof LED Power Supply |
SKU | PS-MW-480-W-12 |
Dimensions | 11.02"L x 5.67"W x 1.91"T 11.5" Lead Wires |
AC Input Voltage | 100 - 240VAC 277VAC (North America Only) |
DC Output | 12VDC / 40A |
Output Watts Max | 480 Watts |
Rating | IP65 |
Operating Temp | -40 ~ 158°F |
Warranty Period | 1 Year |
