SKU: LC-LF-1DIM

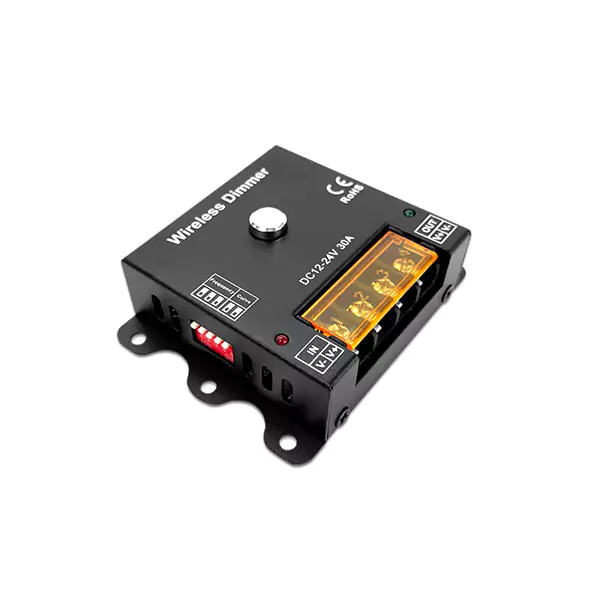

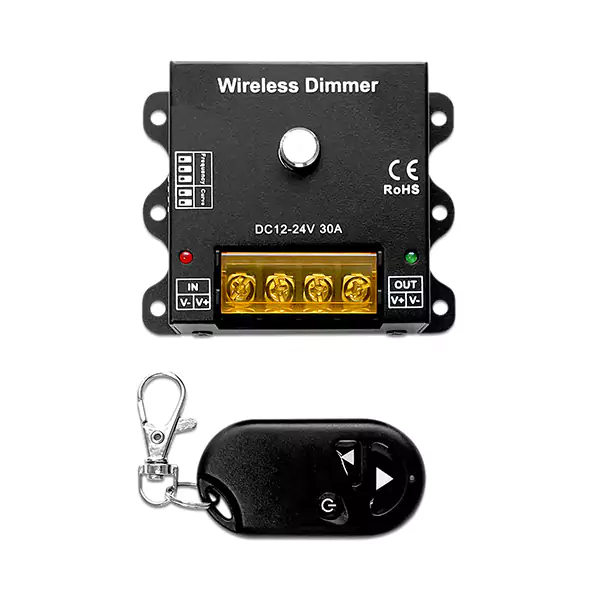

Our small sized flicker free LED dimmer uses a uniquely paired key fob RF remote to dim and control your 12-24VDC constant voltage LED lights and dip switches to adjust the PWM frequency and dimming curve. The impressive 30 amp output allows for dimming control of larger circuits without the need of additional accessories, when set to higher PWM frequencies the maximum load decreases. DC input and output wires can easily be secured using the screw down connectors. Dim up to 360 watts of lighting using 12 Volt products or 720 watts using 24 Volt products. Choose from 5-100% range of dimming levels using two simple arrow buttons on the remote. Our key fob led dimmer can be used to dim LED strip lights, LED modules, LED wall washers, or for dimming any one color common anode 12VDC or 24VDC LED products. Each RF Remote requires (2) 3V / CR2016 type batteries (included) and is paired with a unique RF frequency to prevent command crossover when using multiple units.
| SPECIFICATIONS | |
| Model | LED Dimmer with Key Fob RF Remote |
| SKU | LC-LF-1DIM |
| Dimensions | 3.35" x 2.44" x 1.38"H |
| Input Connection | 2 Wire (+/-) |
| Output Connection | 2 Wire (+/-) |
| Input Power | 12 - 24VDC |
| Output Power | 10A - 30A |
| Maximum Watts | 12VDC: 120W - 360W 24VDC: 240W - 720W |
| Rating | Indoor |
| Operating Temp | -4° ~ 140°F |
| Warranty Period | 1 Year |
| Previous Mode on Power Cycle | Yes |
| Remote Control Radius | 50ft (line of sight) |
| Dimming Levels | 5-100% |
Frequency Adjustable LED Dimmer with Key Fob RF Remote, 12-24V 30A
Frequency Adjustable LED Dimmer with Key Fob RF Remote, 12-24V 30A
1 Channel LED Signal Amplifier, 12-24VDC 30A
SKU: LC-LF-1AMP View Product Page
Our 1 channel signal amplifier / repeater is designed for larger lighting circuits to extend a PWM Dimming signal to additional single color low voltage LED Lights. Once you have met the power limitations of your LED dimmer you can use this amplifier to dim an additional 30A of lights, or 360W at 12VDC / 720W at 24VDC. Simple to use screw down terminals make for an easy and secure connection for your power input and output connections. This product is intended for use with single color LED strip lights, modules, wall washers, or LED lighting fixtures that operate on 12VDC or 24VDC power.
Ribbon Star Ultra 2, White LED Strip Light CRI 90 - UL 12VDC
SKU: RL-SC-UT12-W-3M View Product Page
Version 2 of our Ribbon Star Ultra White LED Strip has a smaller and brighter PC design with extremely durable and flexible 2110 size CRI 90+ LED chip. This new chip can be cut to fit any size and outputs extremely bright, dot free, high CRI color popping illumination. 1200 LEDs per Strip makes Ultra 2.0 the ideal choice for pairing with our aluminum channels to build custom lighting fixtures for upscale residential and commercial uses. Embed into drywall, use under cabinets, light up a display, the applications are endless. Each roll of Strip Light has heavy duty 3M™ mounting tape on the back, for the best long-term mounting solution. Each foot of strip light consumes 6.1 watts of 12VDC power. An adequate 12VDC Constant Voltage power source is required. One bin keeps the 5750-6250K color temperature consistent from order to order. We recommended that you mount this to steel or aluminum for a good heat sink. UL Listed for class2 luminaries and fixtures, CE and RoHS compliant.
Ribbon Star Ultra 2, Warm White LED Strip Light CRI 90 - UL 12VDC
SKU: RL-SC-UT12-WW-3M View Product Page
Version 2 of our flexible Ribbon Star Ultra Warm White LED Strip has been upgraded with a new brighter and more efficient 2110 size CRI 90+ LED chip. This new chip and extremely flexible PCB design provides color popping, dot free illumination. Cut lines every 0.398" make it east to adhere to specific lighting lengths. 1200 LEDs per Strip is unlike any other strip and is the ideal choice for pairing with our aluminum channels to create dot free, bright lighting fixtures. Embed into drywall, use under cabinets, light up a display, the applications are endless. Each roll of Strip Light has heavy duty 3M™ mounting tape on the back, for the best long-term mounting solution. Each foot of strip light consumes 6.1 watts of 12VDC power. An adequate 12VDC Constant Voltage power source is required. One bin keeps the 2600-3100K color temperature consistent from order to order. We recommended that you mount this to steel or aluminum for a good heat sink. UL Listed for class2 luminaries and fixtures, CE and RoHS compliant.
Mean Well LED Power Supply CV 350W - 12VDC
SKU: PS-MW-350-12 View Product Page
This Mean Well 350W, 12VDC LED Power Supply / Transformer, has a 115VAC or 230VAC input and 12VDC output through three terminals. For dry locations only. Has screw down style connections. Comes with plastic covering to protect screw down terminals and a cooling fan to prevent high heat during operation. Note: The cooling fan runs noisy and may not be suitable for all applications. It can be used to connect LED Modules, LED Lights, LED Light Ribbons, RGB LED lighting and other LED Lighting products. UL Recognized and CE approved. Only install face up or in a manner that the cooling vents face upwards with sufficient breathing space.
