Touch Sensor Switch for LED Strip Light Channels, 12-24VDC 3A

5 star rating


Product Description

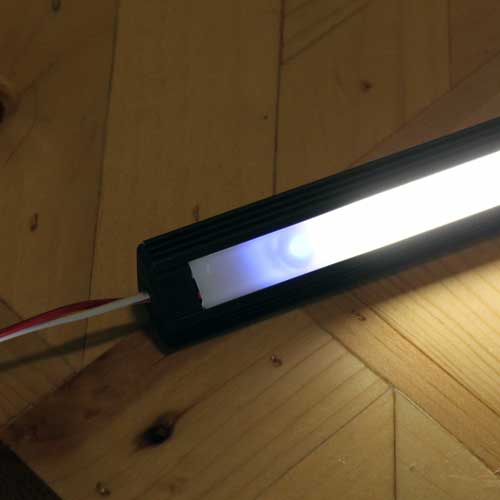

Combine our LED strip lights and aluminum track assortments with this touch sensor on / off switch to create one of a kind touch activated light bars for any indoor lighting application. The touch spring allows you to touch the cover of your KLUS channel to turn your lights on and off as well as dimming control. This switch needs works best with our slimmer KL1 style extrusions and will need extra base height to work with our KL3 or deeper channels. You can either purchase just the on/off switch or switch plus dimming capability. This 12-24 volt strip light controller can control up to 3 amps of 12V or 24V Strip lights. Create your own custom lighting fixtures with simple on off and dimming control with just a touch of the hand. Start making custom linear lighting fixtures for your home or business with control at your fingertips.

Product Downloads
Product Specifications
ModelLED Extrusion Switch with Touch Sensor
Dimensions1.57" x 0.47" x 0.47"H
Input/Output Connection2 Wire (+/-)
Input Power12-24VDC
Output Power3A x 1CH
Maximum Watts12VDC - 36W
24VDC - 72W
Operating Temp-4° ~ 149°F
Warranty Period1 Year
Previous Mode on Power CycleYes
Dimming Levels5-100%

2 Conductor DC Connection Wire Red/Black Pair - 22AWG

SKU: LA-SS-DC22     View Product Page
This is a 22 American Wire Gauge DC Connection wire with a Red/Black bonded pair. This connection wire is suitable for connecting LED lighting products using DC electrical Current.

2 Conductor DC Connection Wire Red/Black Pair - 22AWG

Ribbon Star Max Daylight White LED Strip Light, 4000-4500K, UL 12VDC - IP20

SKU: RL-SC-RSM-DW-3M     View Product Page
Our Ribbon Star Max strip light is ideal for basic indoor lighting projects such as under cabinets, over cabinets, inlayed drywall lighting, cove lighting or basically anywhere an 8mm wide strip can be mounted. Ribbon Star Max can be cut every one inch and has multiple quick connection options or can be soldered for a more secure connection. The strip requires 2.92W per foot of 12VDC to operate. Use with a PWM dimmer or dimmable transformer to add dimming control to your lighting area. The 4000-4500K color temperature is ideal for invigorating environments to stimulate and motivate. Comes with two quick connectors. UL Listed for class 2 low voltage luminaries and fixtures, RoHS and CE approved.

Ribbon Star Max Daylight White LED Strip Light, 4000-4500K, UL 12VDC - IP20
3.28ft (1m) Custom Length
9.84ft (3m) Full Reel

Mean Well Plug-in LED Power Supply 40W - 12VDC

SKU: PS-MW-40-12     View Product Page
Our Mean Well brand 12VDC plug-in style, 40 Watt Constant Voltage LED AC/DC Power Transformer can be used in dry locations to output up to 40 Watts or 3.34 Amps of 12VDC power for 12VDC LED lights and controllers. The AC wall input is made through a common 3 prong wall plug cord and the 12VDC output uses a 5.5mm x 2.1mm female plug (5.5mm x 2.1mm male barrel jack included). Built in short-circuit, overload, and over voltage protection guards from damage do to improper installation. Use this LED power supply to connect 12VDC LED Strip Lights, LED Modules, LED Lights, RGB LED lighting and other LED Lighting products. UL listed, RoHs and CE approved.

Mean Well Plug-in LED Power Supply 40W - 12VDC

Product Reviews

Write a Review

Note: * Indicates a required field

Review Information

(email address will not be displayed)
Your Rating
reCAPTCHA Verification

Led touch sensor switch

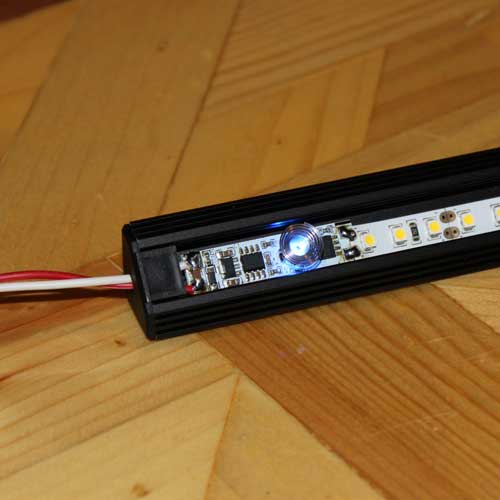

This is my first time using the Led Sensor switch. Wow, they are a must for any Led light project, where you want or can install a switch right in the strip light. What a clean installation! I choose the dimmable switch for my latest project. These solder in-between the power wires and the Led strip light. Make sure you verify the polarity of the power coming in and the led light strip connections (note: mark the polarity on your circuit board. As they are not noted on the circuit board - and should have been). The blue led light marks the spot where to touch. My latest project is completed and working great.

Mar 30, 2023 | Frank

Ecolocity LED Responded:
Thanks Frank!! so glad to hear that you love the dimmer. We feel the same, super clean and practical with dimming and on off control just a hand touch away.
