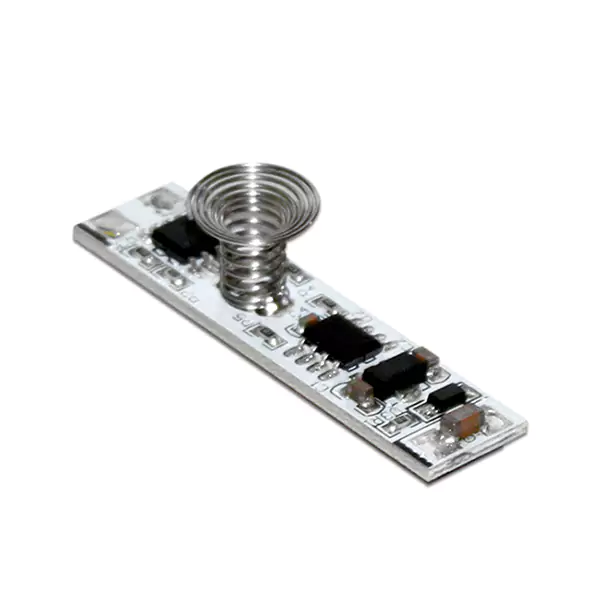

Combine our LED strip lights and aluminum track assortments with this touch sensor on / off switch to create one of a kind touch activated light bars for any indoor lighting application. The touch spring allows you to touch the cover of your KLUS channel to turn your lights on and off as well as dimming control. This switch needs works best with our slimmer KL1 style extrusions and will need extra base height to work with our KL3 or deeper channels. You can either purchase just the on/off switch or switch plus dimming capability. This 12 volt strip light controller can control up to 3 amps of 12V Strip light or 36 watts. Create your own custom lighting fixtures with simple on off and dimming control with just a touch of the hand. Start making custom linear lighting fixtures for your home or business with control at your fingertips.
|Model||LED Extrusion Switch with Touch Sensor|
|Dimensions||1.57" x 0.47" x 0.47"H|
|Input/Output Connection||2 Wire (+/-)|
|Output Power||3A x 1CH|
|Maximum Watts||12VDC - 36W|
24VDC - 72W
|Operating Temp||-4° ~ 149°F|
|Warranty Period||1 Year|
|Previous Mode on Power Cycle||Yes|
For B2B or Large Quantity Price Info Click Here
2 Conductor DC Connection Wire Red/Black Pair - 22AWG
SKU: LA-SS-DC22 View Product Page
This is a 22 American Wire Gauge DC Connection wire with a Red/Black bonded pair. This connection wire is suitable for connecting LED lighting products using DC electrical Current.
Ribbon Star Max, Daylight White LED Strip Light - UL 12VDC
SKU: RL-SC-RSM-DW-10 View Product Page
Our Ribbon Star Max strip light is ideal for basic indoor lighting projects such as under cabinets, over cabinets, inlayed drywall lighting, cove lighting or basically anywhere an 8mm wide strip can be mounted. Ribbon Star Max can be cut every one inch and has multiple quick connection options or can be soldered for a more secure connection. The strip requires 2.92W per foot of 12VDC to operate. Use with a PWM dimmer or dimmable transformer to add dimming control to your lighting area. The 4000-4500K color temperature is ideal for invigorating environments to stimulate and motivate. Comes with two quick connectors. UL Listed for class 2 low voltage luminaries and fixtures, RoHS and CE approved.
Mean Well Plug-in LED Power Supply 40W - 12VDC
SKU: PS-MW-40-12 View Product Page
Our Mean Well brand 12VDC plug-in style, 40 Watt Constant Voltage LED AC/DC Power Transformer can be used in dry locations to output up to 40 Watts or 3.34 Amps of 12VDC power for 12VDC LED lights and controllers. The AC wall input is made through a common 3 prong wall plug cord and the 12VDC output uses a 5.5mm x 2.1mm female plug (5.5mm x 2.1mm male barrel jack included). Built in short-circuit, overload, and over voltage protection guards from damage do to improper installation. Use this LED power supply to connect 12VDC LED Strip Lights, LED Modules, LED Lights, RGB LED lighting and other LED Lighting products. UL listed, RoHs and CE approved.
