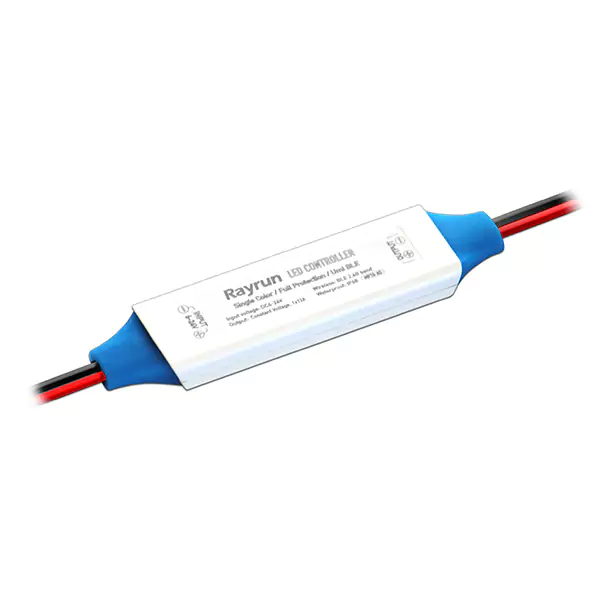

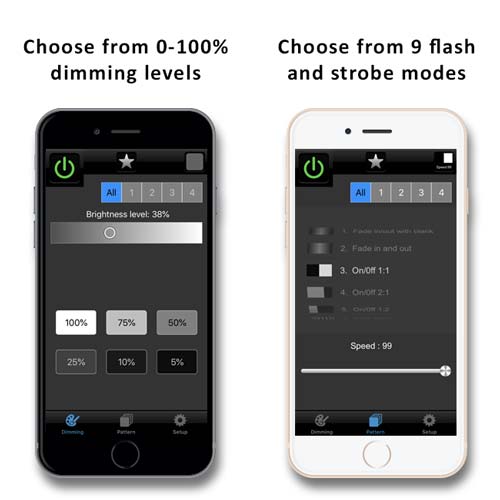

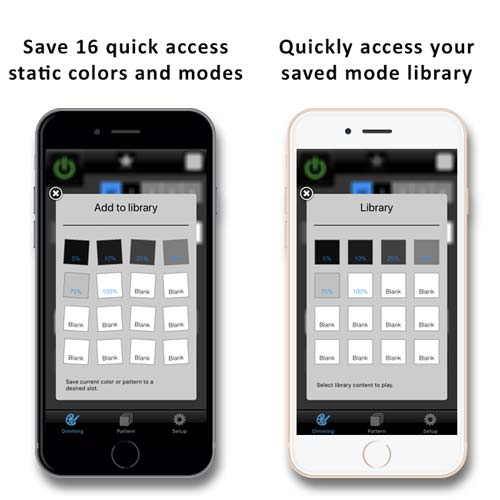

The newly redesigned IP68 mini Bluetooth Single Color LED Dimmer has the ability to sync numerous dimmers over multiple zone groups using the free 'Umi Smart' app on an ioS or android device. From the smart phone app you can pair to multiple devices, set up groups, save dim levels and scenes, as well as trigger scenes using a real time clock with repeating weekday options (BTT model only). Also from the app you can choose from 0-100% dimming choices, with quick dimming buttons, as well as 8 pre programmed flash and strobe functions with 99 speed level adjustments. The 1 channel output can control a max load of 15 amps, 180W using 12VDC or 360W using 24VDC. There are 16 storage spaces to save your favorite dim levels and flashing modes. The Bluetooth control range from controller to smartphone or tablet is approximately 45ft with no walls or interference. The small size and simple bare connection wires, as well as sync and group functions make this controller ideal for any new or existing indoor/outdoor LED lighting design. This product is IP68 waterproof rated but not meant to be submersed in water or directly exposed to any outdoor elements.
|Model||Multi-zone LED Bluetooth Dimmer with Time Control|
|Dimensions||3.43" x 0.83" x 0.35"H|
4.0" Wire Leads
|Input Connection||2 Wire (+/-) 16AWG|
|Output Connection||2 Wire (+/-) 16AWG|
|Input Power||5 - 24VDC|
|Output Power||15A x 1CH|
|Maximum Watts||5VDC - 75W|
12VDC - 180W
24VDC - 360W
|PWM Levels||4,000 Levels|
|Operating Temp||-22° ~ 176°F|
|App Name||Umi Smart|
|Warranty Period||1 Year|
|Previous Mode on Power Cycle||Yes|
|Bluetooth Control Radius||45ft (line of sight)|
|Modes||8 Modes, 10 Levels Speed|
This controller has been updated to the new Umi Smart version and is no longer compatible with the Light Mesh app.
Bright Star 45.25" x 3.31" White LED Wall Washer - 72W, 24VDC
SKU: WW-LG-WALL-48-W View Product Page
This White LED Wall Washer is a 45.25" x 3.31" linear type light with 72W 24VDC rated power use. It has 36 white - 2.0 watt Epistar LEDs to produce bright and vivid lighting on walls, buildings, ceiling and signs. This light fixture can project light up to 100 feet. This light is encased in an IP65 water-resistant aluminum housing. Tempered glass and stainless fasteners give this light long lasting outdoor use. This light can be dimmed by any 24VDC Constant Voltage PWM Dimmer. We recommend wiring these fixtures in a parallel connection, one wire lead to bare wire is included per fixture. For easy connection of wall washers, power supplies and dimmers, use the many waterproof connectors wire options. 6000K Cool White color temperature, non-submersible, CE and RoHS approved.
Ribbon Star Ultra 2 Warm White Strip Light Silicone WP CRI 90 2110 chip UL 24VDC 118"/3m
SKU: RL-SC-UT24-WW-T-3M View Product Page
Our commercial grade UL Listed Ribbon Star, Warm White is an Ultra bright and dependable outdoor rated 24VDC waterproof LED Strip Light. With a 24VDC power rating this Strip Light is the brightest waterproof strip light that we sell. The silicon coating gives Ribbon Star Ultra an IP65 outdoor rating. Making it waterproof (non-submersible), dust and UV proof. Ribbon Star Ultra Waterproof provides a perfect light source for any indoor, outdoor, damp or wet area lighting projects. The Strip Light can be cut every 0.8 inches and can be connected in series up to 20ft (6m) with no noticeable voltage drop. 8 SMD LEDs per 0.8 inches with a total of 1200 LEDs per 3m. At 4.9W per foot, a 3m roll would require at least a 49W, 24VDC power supply. This LED strip light is perfect for any outdoor or indoor lighting project. Use with water features, decks, trailers, yachts, boats, RV's, dog kennels, landscaping, business trim, pathway lighting, or any other situation that a fully outdoor proof LED Strip Light is needed. Comes with male and female connectors on each end, 3M VHB mounting tape, 10 mounting clips and 4 end caps. Requires a 24VDC Constant Voltage power source. 3500K Color Temperature. UL Listed for class2 luminaries and fixtures, RoHS and CE approved.
Mean Well Waterproof LED Power Supply 240W - 24VDC
SKU: PS-MW-240-W-24 View Product Page
This product is a Mean Well brand waterproof LED power converter with a 100-240VAC, or 277VAC (North America Only) input and a 24VDC 10 amp output of 240W. IP67 rated for wet or damp locations. This LED power supply can be used to power 24VDC Constant Voltage LED Wall Washers, LED Lights, LED Light Ribbons, RGB LED lighting and other 24VDC LED Lighting products. Comes with built in PFC (Power Factor Correction) as well as short circuit protection. AC input wire colors are as follow: Brown - Load, Blue - Neutral, Green - Ground. The manufacturer recommends a 92.5% max load of 222 watts. Non-submersible, non uv-proof, UL recognized, RoHS, and CE approved.
Note: * Indicates a required field
Needed to place outdoor LED tape lights on a dimmer with timer. Bluetooth discover was seamless as advertised. Even set the clock automatically. Perfect for this application.
Nov 24, 2021 | Craig Birkmaier
