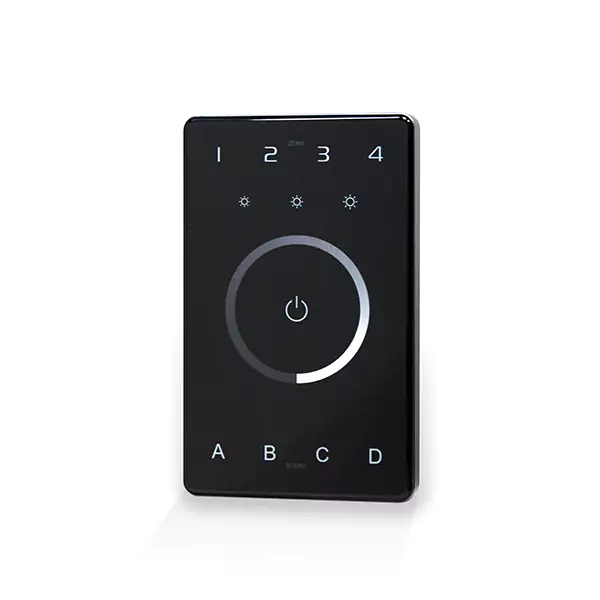

4 Zone LED Wall Dimmer for UB Series Bluetooth 5.0 Control System, UL 12-24VDC

UB1 Controller UB1 Side View UB1 Back Side UB1 Back Phone Control UB1 Mount Wiring UB1 UB1 Dimensions
UB1 Controller UB1 Side View UB1 Back Side UB1 Back Phone Control UB1 Mount Wiring UB1 UB1 Dimensions

SKU: LC-LT-B5-UB1

$124.99
Order will ship: Thursday, Jul 25 * If placed by Thursday, Jul 25, 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S. * Excluding oversized items. See Exclusions

Description

The Ltech UB1 Wall Switch is a sophisticated touch panel that integrates Bluetooth 5.0 SIG Mesh technology with DMX control signals. It has a simple but elegant design consisting of an aluminum frame and touch sensitive tempered glass face. Control up to 4 zones of single color LED lighting and save up to 4 of your favorite lighting scenes. The stylish monochromatic dimming wheel allows for 1-100% dimming or use the quick select dimming buttons for 25%, 50% and 100% output. Download the L-Home phone app to control your lighting from any phone or tablet. The app also includes features such as flashing, and strobing modes as well as designation of each controller to a specific room or area. The controller requires 12 or 24VDC input with a maximum power load of 2.4W to operate. The DMX output signal needs to be wired to a DMX decoder or compatible DMX device, in which the DMX address assigns the lighting to one of the four zones. See installation guide below for more details.

Specifications

UB1 Wall PanelWireless Receiver
4 Zone Bluetooth Wall Dimmer
SKULC-LT-B5-UB1
Dimensions4.72" x 2.95" x 1.18"H
Input Connection2 Wire (+/-)
Output Connection3 Wire (DMX+/DMX-/GND)
Input Power12 - 24VDC
RatingIndoor
Operating Temp-4° ~ 131°F
App NameL-Home
Previous Mode on Power CycleYes
Bluetooth Control Radius45ft (line of sight)
Dimming Levels1-100%
CertificationUL Listed, CE, RoHS
Warranty Period1 Year
Bluetooth 5.0 LED Receiver
SKULC-LT-B5-REC
Dimensions6.89" x 1.73" x 1.18"H
Input Connection2 Wire (+/-)
Output Connection2-6 Wire (+/RGBWY)
Input Power5 - 24VDC
Output Power4A x 5CH
Maximum Watts12V-240W
24V-480W
RatingIP20
Operating Temp-4° ~ 131°F
App NameL-Home
Previous Mode on Power CycleYes
CertificationRoHS, CE
Warranty Period1 Year
