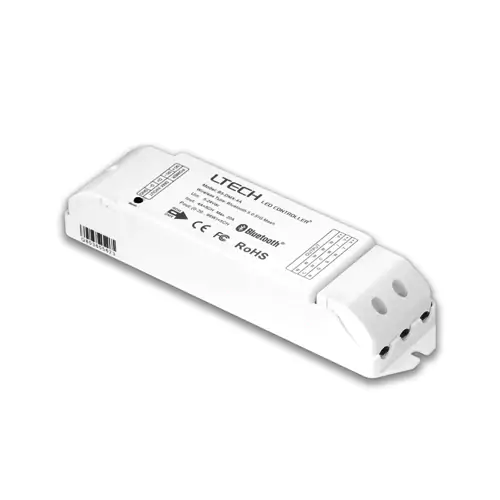

5 in 1 Bluetooth Controller and Receiver for LED Lighting, 5-24VDC 4Ax5CH

SKU: LC-LT-B5-REC

$77.99

Add to Wishlist

Order will ship: Wednesday, Nov 12 * If placed by 2:00pm PST.

Free Shipping On orders over $250 within the Continental U.S. * Excluding oversized items. See Exclusions

Buy

Discount

You Pay

5% off

$74.10

15+

8% off

$71.76

30+

12% off

$68.64

75+

15% off

$66.30

Description

Using Bluetooth 5.0 Mesh technology this unit doubles as a stand alone controller or wireless receiver for UB Intelligent Touch Panels. Using the free L-Home app on your iOS or Android device you can select from 5 different control types; RGBWY, RGBW, RGB, CT, or Dimming. Pair the receivers with the UB1, UB4 or UB5 wall mount touch panels to wirelessly control your LED lighting over 4 zones. The connection to the app is simple and the control functionality is easy to use and consistent. Each receiver can power a maximum load of 4 amps per channel. Maximum loads vary depending on control type, see specification table for more details.

Specifications

Model	Bluetooth 5.0 LED Receiver
SKU	LC-LT-B5-REC
Dimensions	6.89" x 1.73" x 1.18"H
Input Connection	2 Wire (+/-)
Output Connection	2-6 Wire (+/RGBWY)
Input Power	5 - 24VDC
Output Power	RGBWY, DIM: 4A x 5CH RGBW, CCT: 4A x 4CH RGB: 4A x 3CH
Maximum Watts	RGBWY, DIM: 12V-240W, 24V-480W RGBW, CCT: 12V-192W, 24V-384W RGB: 12V-144W, 24V-288W
Rating	IP20
Operating Temp	-4° ~ 131°F
App Name	L-Home
Previous Mode on Power Cycle	Yes
Certification	RoHS, CE
Warranty Period	1 Year
