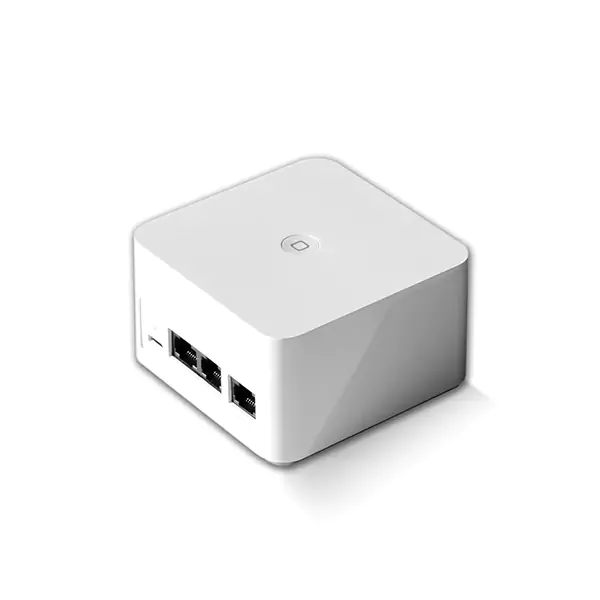

LTECH 5 in 1 WiFi-108 Intelligent LED Control System - 108 Series Smart Gateway

SKU: LC-LT-108-WIFI

WiFi-108
SKU: LC-LT-108-WIFI
Quantity:
Receiver
SKU: LC-LT-108-REC-4A
Quantity:
Add Other Compatible Devices:
E4S Panel $89.99
Q1 Remote $89.99
Q5 Remote $109.99
E5S Panel $99.99
Q4 Remote $99.99
E1 Panel $69.99
$54.99

Introducing the most refined and robust app and WiFi controller to date. The WiFi-108 Intelligent Lighting Control System from Ltech is the premier unit of the 108 series family capable of controlling single color, RGB, RGBW, and RGBCCT lighting while being able to be paired to any of the 108 series RF Remotes and Wall Panel controllers. The cloud platform of the L-Bus system allows for phone control anywhere with cellular or internet service. Control up to 16 zones over 16 groups with precise color changing and dimming options. Program up to 16 basic or advanced scene settings, such as sunrise and sunset, then trigger with clock, contacts, RS485 interface, or manual operation. This controller operates using the "L-Bus" application.

Product Features
  • 16 zones with unlimited receivers
  • Wireless pairing using 2.4GHz signal
  • Pair with remotes and wall controllers
  • Extend RF range with RF amplifier
  • Control remotely using phone app
  • Program and trigger custom scenes
  • 16 groups over active zones
  • Control 1 color, RGB, RGBW, or RGBCCT
  • Precise dimming and speed control
  • Pair with Alexa for voice control
Installation Tips
  • Installation by Qualified Professional
  • Install in a Well-Ventilated Area
  • Only use with 5-24VDC RGB CCT CV LEDs
  • Lighting load must not exceed 20 amps
  • Add receivers for loads exceeding 20A
  • Operating temp -22°F ~ 131°F
  • Ensure the power is off when wiring
  • DC Input must match DC output
Default Scenes
  • *Setup Required*
  • I'm home
  • I'm away
  • Get up
  • Have a rest
  • Dinner
  • Reading
  • Party
  • Projecting
  • Relaxation
  • Wake up
  • Movie time
  • Working
  • Warm
  • Relax
  • Romance
  • Flash
Item SKU DC Input Max Current Max Load Rating Operating Temp RF Radius Warranty
WiFi Gateway LC-LT-108-WIFI 5VDC USB-C N/A N/A IP20 Indoor -22 ~ 160°F 150ft (line of sight)
Unlimited w/ RF
Amplifiers
1 Year
Receiver LC-LT-108-REC-4A 5-24VDC 4Ax5CH (20A) 240W - 12VDC
480W - 24VDC
-22 ~ 131°F
