Magnitude LED Power Supply Dimmable by Magnetic Low Voltage Dimmer 12V - 200W

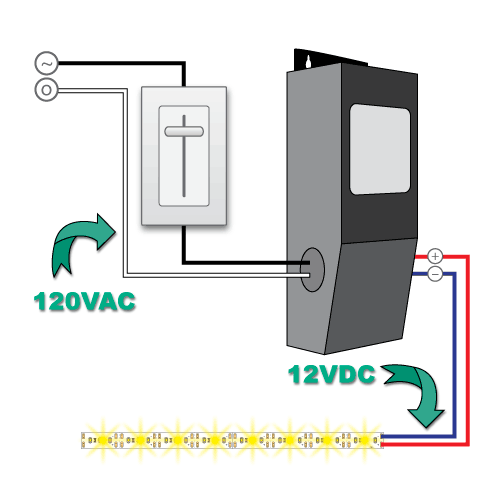

200W 12VDC Dimmable Transformer Power Supply Dimensions Power Supply Install
200W 12VDC Dimmable Transformer Power Supply Dimensions Power Supply Install

SKU: PS-MT-200-12

$214.99
Order will ship: Monday, Jun 17 * If placed by 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S. * Excluding oversized items. See Exclusions
Buy
Discount
You Pay
5+
5% off
$204.25
10+
10% off
$193.50

Description

If you have you been looking for a way to dim your LED Lights from a wall mounted dimmer, then this is the LED Power Supply for you. Use any compatible low voltage magnetic dimmer and dim your LED lights from 0-100%. This power supply is ETL listed, CSA listed, and encased in a NEMA 3R enclosure. Built in manual reset thermal circuit breaker allows for shutdown upon an electrical short. 120VAC input voltage only, 60Hz. Output 12VDC up to 200w. Can be dimmed with standard low voltage magnetic dimmer, see list of compatible dimmers below. Transformer is fully encapsulated for protection against the elements. No External Fusing Required. Avoid using dimmers not rated for magnetic low voltage lighting or not labeled as symmetrical forward phase as they may cause overheating of the power supply or cause damage to the load. It is also not recommended to use dimmers with neutral connections or dimmers requiring a minimum load for proper operation.

Specifications

SPECIFICATIONS
ModelMagnitude LED Power Supply MLV Dimmable
SKUPS-MT-200-12
Dimensions3.06"L x 2.94"W x 9.17"H
AC Input Voltage120VAC
DC Output12VDC - 16.67A
Output Watts Max12VDC - 200W
RatingDry/Damp
Warranty Period2 Years
