Ribbon Star Max, Waterproof Warm White LED Strip Light - UL 12VDC - IP67
SKU: RL-SC-RSM-T-WW-3M
Description

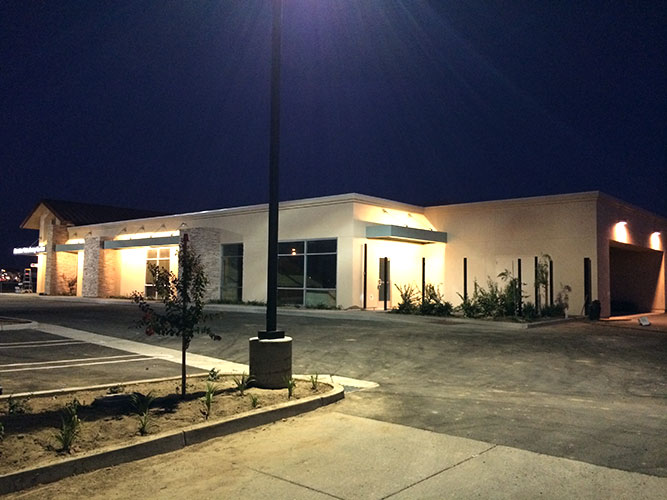

Our commercial grade UL Listed Ribbon Star Max Waterproof Strip Light is a perfect solution for both indoor and outdoor backlight and ambient light applications. The Waterproof Ribbon Star Max LED Ribbon is fully encased in a rugged waterproof silicon coating for an IP67 rating. This 118" (3 meters, 2" under ten feet) ribbon can be cut every one inch and re-connected to form to any lighting layout. Ribbon comes with 3M™ VHB™ mounting tape on the back, for the best long-term mounting solution. Each roll comes with 10 clear plastic screw down holders, 4 closed end caps, 4 end caps with holes for wiring, and a waterproof connector at each end. Three (3) SMD LEDs per one inch, 2.92W per foot of Constant Voltage DC power required for this strip of light. Can be used for outdoor lighting, decks, patios, coves lighting, toe kicks, under cabinet, backlighting, crown molding and many more applications. UL Listed for class2 luminaries and fixtures, RoHS and CE approved.
| Wiring Diagrams |
 |
 |
 |
Specifications
| SPECIFICATIONS | |
| Model | Ribbon Star Max Waterproof, Warm White, 118" (3m) |
| SKU | RL-SC-RSM-T-WW-3M |
| Dimensions | 118"L x 0.48"W x 0.28"H |
| Connection Type | 2 Wire (+/-) |
| LED Chip Type | 3528 |
| LED Quantity | 3 SMDs per 1 inch |
| LEDs Per Strip | 360 SMD LEDs |
| Input Power | 12VDC Constant Voltage |
| Watts | 2.92W per foot |
| Beam Angle | 120° |
| Lumens | 201 lm/ft |
| CRI | >80 |
| Kelvin | 3000-3500K |
| Rating | IP67 Waterproof |
| Operating Temp | -4°~104°F |
| Max Serial Connection | 30 Feet |
| Certification | UL Listed, RoHS, CE |
| Product Lifetime | 50,000 Hours |
| Warranty Period | 2 Years |
| Click for Product Data Sheet |
| Max Waterproof Connection Guide |
| Click for Light Box Diffusion Guide |
| Wire to WP Strip Soldering Video |
Dimensions
Reviews
|
Product Rating Based on 1 review |
Write a Review |
|---|---|
|
|
|
|
Bathroom renovation Cecil Jones | Feb 10, 2023 Very helpful and with their guidance and hopefully I will have a beautiful shower and bathroom |
|
Questions
|
(2) Product Questions |
Have a Question? |
|---|---|
|
|
|
|
Rob asked: May 21, 2025 Can multiple full reels be wired together from 1 single solar power source? Or does each reel need to be connected to its own solar power source? Ecolocity LED Responded: May 21, 2025 Hi Rob, from my basic understanding of solar that would depend on the capacity of your battery storage. For example, one roll of this strip light is roughly 29 watts, most likely a little less with voltage drop. To calculate the amps you divide the watts by the voltage. So the amps of one roll would be anywhere from 2-2.4 amps. You could put multiple strings of lights off one source as long as your batter capacity is larger than the lighting load. So if you had a 5amp hour batter that would roughly power 2 strings of lights for a little over an hour. I hope this clarifies a little for you, let me know if you have any other questions or shoot me an email with the details of your solar setup and I could provide more information. |
|
|
John Romankiewicz asked: Jul 23, 2015 What is the color rendering index (CRI) for this product? "Ribbon Star Max, Waterproof Warm White LED Strip Light - UL 12VDC - 118" (3m)" Ecolocity LED Responded: Jul 27, 2015 The CRI for warm white is 72.5, the white color temp is 82.5 |
|
