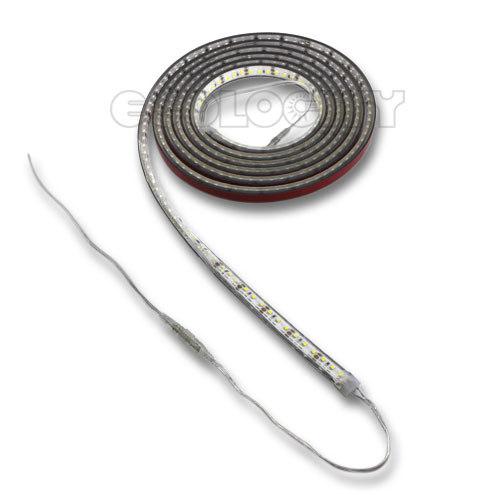

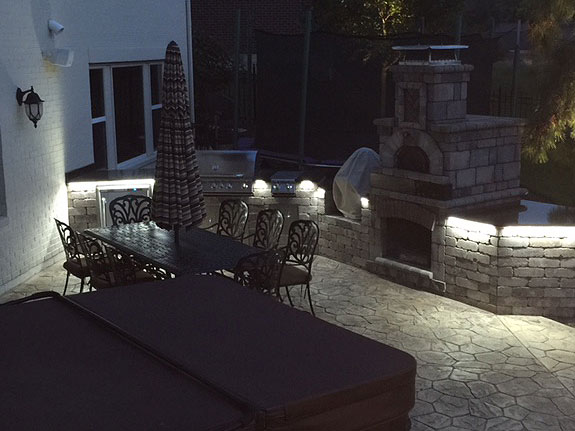

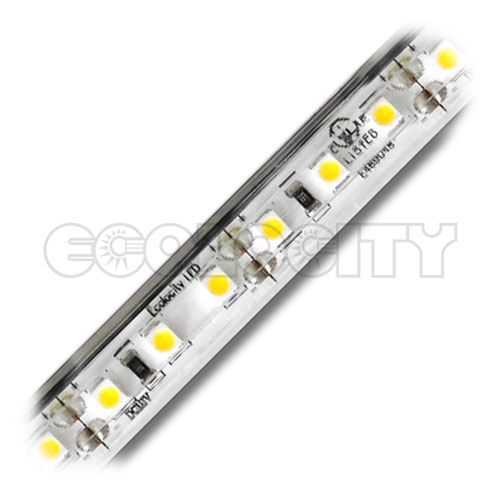

Our high end UL Listed Ribbon Star Max Waterproof flexible LED Strip Light is a perfect solution for both indoor and outdoor task, backlight and ambient light applications. The waterproof Ribbon Star Max LED Ribbon is fully encased in a dependable waterproof and UV resistant silicon coating for an IP67 rating. This 118" (3 meters, 2" under ten feet) ribbon can be cut every one inch. Ribbon comes with 3M™ VHB™ mounting tape on the back, for the best long-term mounting solution. Each roll comes with 10 clear plastic screw down holders, 4 closed end caps, 4 end caps with holes for wiring, and a waterproof connector at each end. Three (3) SMD LEDs per one inch, 2.92W per foot of Constant Voltage DC power required for this strip of light. Can be used for outdoor lighting, decks, patios, coves lighting, toe kicks, under cabinet, backlighting, crown molding and many more applications. UL listed for class 2 low voltage luminaries and fixtures, RoHS and CE approved, 6000-6500K Color Temperature.
|Click for Product Data Sheet|
|Max Waterproof Connection Guide|
|LED Strip Light Comparison Guide|
|Wire to WP Strip Soldering Video|
|Click For Electrical Load Calculator|
|Model||Ribbon Star Max Waterproof, White, 118" (3m)|
|Dimensions||118"L x 0.48"W x 0.28"H|
|Connection Type||2 Wire (+/-)|
|LED Chip Type||3528|
|LED Quantity||3 SMDs per 1 inch|
|LEDs Per Strip||360 SMD LEDs|
|Input Power||12VDC Constant Voltage|
|Watts||2.92W per foot|
|Max Serial Connection||30 Feet|
|Certification||UL Listed, RoHS, CE|
|Product Lifetime||50,000 Hours|
|Warranty Period||2 Years|
|Downloads & Info|
|Click for Product Data Sheet|
|Click for Light Box Diffusion Guide|
|Strip Light Soldering Tutorial|
|Determining the Proper Power Supply Tutorial|
|Installing a PWM Dimmer Tutorial|
For B2B or Large Quantity Price Info Click Here
Silicone End Cap for Single Color Waterproof LED Strips
SKU: RA-SC-RS-EC View Product Page
This Silicone end cap is made to cap the end of your single color Ribbon Star LED Strip Lights with silicone coating. Use this end cap with an industrial strength RTV 4500 Silicone Sealant to close and seal your exposed cuts to water and outdoor proof your LED Strip.
Silicone End Cap with hole for Single Color Waterproof LED Strips
SKU: RA-SC-RS-ECH View Product Page
This Silicone end cap with holes is made to cap the end your waterproof strip light while allowing connection wires to pass through. Use this end cap with an industrial strength RTV 4500 Silicone Sealant to close and seal your exposed cuts to water and outdoor proof your LED Strip wire connections.
RTV 4500 High Strength Silicone Sealant
SKU: OA-AM-SIL-GLU View Product Page
Use the RTV 4500 high strength silicone sealant to adhere end caps and connectors to our waterproof silicone led strip lights.
Precision Micro Shears for Silicon Strip Housing and Small Wires
SKU: OA-AM-SIL-CUT View Product Page
Our micro precision snipping shears are a great additional tool to have. They are especially useful when prepping waterproof strip lights for new wire connections. The small snips make it easy to cut through the silicon housing to expose the copper pads below for soldering. The snips can also be used for small precision wire and soldering cuts not exceeding 1mm diameter (0.04").
(3) Waterproof Strip Light Plug Connectors with 24" Lead Wire
SKU: RA-SC-RS-T-RWF-3 View Product Page
Use our 24" plug connectors to bare wire with any of our Waterproof Ribbon Star, Ribbon Star Max, Ribbon Star 50/50, Ribbon Star Extreme, or Ribbon Star Ultra LED Strip lights. They can be used to extend and connect your waterproof LED Strip Lights to a power supply or dimmer or to create a waterproof quick disconnect. They are sold in sets of 3 with a waterproof plug on one end and are only compatible with our waterproof jack connectors.
(3) Waterproof Strip Light Jack Connectors with 24" Lead Wire
SKU: RA-SC-RS-T-RWM-3 View Product Page
Use our 24" Waterproof Jack Connectors to bare wire on any of our Waterproof Ribbon Star, Ribbon Star Max, Ribbon Star 50/50, Ribbon Star Extreme, or Ribbon Star Ultra LED Strip lights. They can be used to extend and connect your waterproof LED Strip Lights to a power supply or dimmer or to create a waterproof quick disconnect. They are sold in sets of 3 with a waterproof jack on one end and can only be mated with our waterproof plug connectors.
(3) Waterproof Strip Light Jack to Plug Connectors with 24" Wire
SKU: RA-SC-RS-T-RWR-3 View Product Page
Use this 24" wire connector on our Waterproof Ribbon Star, Ribbon Star Max, Ribbon Star 50/50, Ribbon Star Extreme or Ribbon Star Ultra LED Strips to add 20 inches of lead wire between Waterproof strips. Each connector has a waterproof plug and jack on each end. This product is sold in sets of 3.
(10) Mounting Clips for Ribbon Star Waterproof Strip Lights
SKU: RA-SC-RS-T-CL-10 View Product Page
These are 10 plastic mounting clips made for use with any of our Waterproof TPU coated LED Strip lights. Use these clips for long term mounting of your waterproof LED Strip lights. Two screw holes make for simple installation. Sold in packs of 10 clips. Click the thumbnail image for clip dimensions.
SILER Aluminum Extrusion for Waterproof Strips - .5" Deep
SKU: EX-KLWP-1 View Product Page
