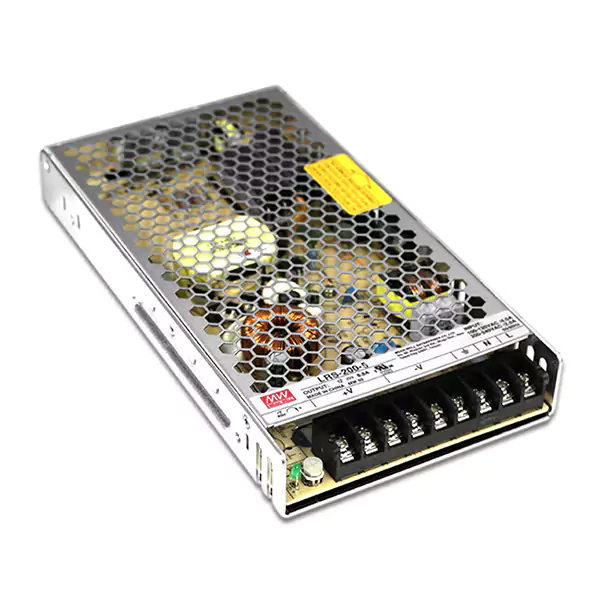

Mean Well LED Power Supply Three Output 200W - 5VDC

SKU: PS-MW-200-5

Product Description

A Mean Well 200W 5VDC LED Power Supply / Transformer, with a selectable AC input of either 100-120VAC or 200-240AC and 5VDC output through three terminals. Simple to use screw down style terminals make for an easy and secure connection. Built in short circuit, overload, over voltage, and over heating shut down protection guards the unit from any improper use. This power supply can also withstand a 300VAC input surge for up to 5 seconds. It can be used to connect 5VDC LED Modules, LED Strip Lights, RGB LED lighting and other 5VDC Constant Voltage LED Lighting products. UL Recognized, RoHs and CE approved. Only install face up or in a manner that the cooling grate faces upwards with sufficient breathing space.

Product Downloads
Product Specifications
ModelMeanwell LED Power Supply Three Output 200W - 5VDC
Dimensions8.44"L x 4.53"W x 0.94"H
AC Input Voltage100/120VAC or 200/240VAC
DC Output5VDC / 40A
Output Watts Max200 Watts
Operating Temp-25° ~ 158°F
Warranty Period1 Year
200W 5V
You Pay
5% off
10% off
Reveal - Click the arrow or text to reveal answers.
CSR - Customer service representatives.
Purchaser - Verified purchasers of this product.

(4) Mean Well Mounting Brackets with Screws for 200W & 350W PS

SKU: PS-MW-MNT-4     View Product Page
This product is a pack of 4 mounting brackets with 4 screws to mount our Mean Well brand 200W or 350W power supplies. Use these 4 mounts to secure any of the 12VDC or 24VDC versions of the power supplies mentioned above. If mounting to a vertical surface such as a wall, be sure that the cooling vents are pointed upwards to allow heat to escape the unit. Use these clips to secure our 12VDC or 24VDC 200W and 350W indoor transformers to any drillable surface. Sold in sets of 4, 4 mounting screws included.

(4) Mean Well Mounting Brackets with Screws for 200W & 350W PS

50 Addressable 1 Chip RGB LED Pixel Dot Modules - 1903IC 5VDC

SKU: MD-BW-DS1-50     View Product Page
Create large arrays and pixel matrix color changing effects using our low voltage addressable dot pixel modules. This product is a 5VDC Digital Pixel LED with a 1903 type IC chip. Control each LED pixel using DMX control or any compatible controller for a 1903 type IC chip. Each pixel light uses 3 DMX channels and will flow in sequence from the starting channel, 150 DMX channels per 50 pixels. 0.3W per module, requiring 15W of 5VDC power per 50 modules. These modules easily install in any 0.47"(12mm) diameter hole. If you are not sure this is the right product for you please call and consult a sales associate before ordering.

50 Addressable 1 Chip RGB LED Pixel Dot Modules - 1903IC 5VDC
Out of Stock

Mini RGB LED Pixel Controller with RF Remote, 5-24VDC 10A

SKU: LC-LT-PXL-1     View Product Page
Our Mini LED Pixel Controller with RF Remote is a small and powerful controller that creates vibrant color changing and color chasing effects using 5-24VDC digital type LED Strip lights, modules, or pixel lights with compatible type IC chips. 16 built in modes and the ability to change the speed, brightness, pixel length (8-1020px), IC type, chasing direction, and RGB order; this controller packs tons of functionality into a small package. Enhanced functions include playback of your favorite scenes in any order that you choose. With a max output rating of 10A this controller can power no more than 50W at 5VDC, 120W at 12VDC, or 240W at 24VDC.
Compatible IC Types:
TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, TLS3001, TLS3002, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, WS2811, WS2812, P9813

Mini RGB LED Pixel Controller with RF Remote, 5-24VDC 10A
