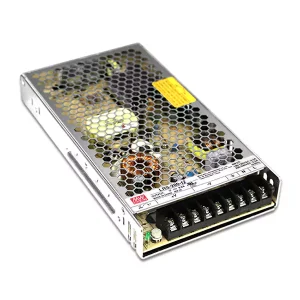

Mean Well LED Power Supply Three Output 200W - 24VDC

SKU: PS-MW-200-24

Product Description

A Mean Well 200W 24VDC LED Power Supply / Transformer, with a selectable AC input of either 100-120VAC or 200-240AC and 24VDC output through three terminals. Simple to use screw down style terminals make for an easy and secure connection. Built in short circuit, overload, over voltage, and over heating shut down protection guards the unit from any improper use. This power supply can also withstand a 300VAC input surge for up to 5 seconds. It can be used to connect 24VDC LED Modules, LED Lights, LED Light Ribbons, RGB LED lighting and other 24VDC Constant Voltage LED Lighting products. UL Recognized, RoHs and CE approved. Can connect up to 180 one watt led lights. Only install face up or in a manner that the cooling grate faces upwards with sufficient breathing space.

Product Downloads
Product Specifications
SPECIFICATIONS
ModelMeanwell LED Power Supply Three Output 200W - 24VDC
SKUPS-MW-200-24
Dimensions8.44"L x 4.53"W x 0.94"H
AC Input Voltage100/120VAC or 200/240VAC
DC Output24VDC / 8.3A
Output Watts Max200 Watts
RatingDry
Warranty Period1 Year
200w 24v LED Power
Buy
Discount
You Pay
5+
5% off
$66.50
10+
10% off
$63.00
Reveal - Click the arrow or text to reveal answers.
CSR - Customer service representatives.
Purchaser - Verified purchasers of this product.

Ribbon Star MegaLux, High Density White LED Strip Light - ETL 24VDC - 118" (3m)

SKU: RL-DX-MGL-W2-10     View Product Page
Our Ribbon Star MegaLux High Density White LED Strip Light is an extremely bright 24VDC LED Strip Light, outputting an incredibly bright 1,902 lumens per foot. This ETL Listed 118" (3m) LED ribbon can be cut every 1.31" and must be soldered to re-connect and should be mounted to a metal heat sink. Comes with a heavy duty double sided mounting tape on the back, for the best long-term mounting solution. Each strip consists of 8 high output 2835 SMD LEDs per 1.31" for a total of 720 SMD LEDs per 118" LED strip. This light requires at least 14.63 watts of 24VDC power per foot (0.61A/ft). This LED Ribbon strip is so bright it can be used for task, and general lighting in homes, businesses, interior lighting, light boxes, and signs. It can also be used for overhead lighting, cove, under cabinet, back lighting and many more applications. We recommended that you mount this strip to steel or aluminum for a good heat sink. 5700-6500K Color Temperature, ETL Listed, RoHS and CE approved.

Ribbon Star MegaLux, High Density White LED Strip Light - ETL 24VDC - 118" (3m)
19.5" (0.5m) Sample
$25.99
118" (3m) Roll
$124.99

(4) Mean Well Mounting Brackets with Screws for 200W, 320W, 600W & 1000W PS

SKU: PS-MW-MNT-4     View Product Page
This product is a pack of 4 mounting brackets with 4 screws to mount our Mean Well brand 200W, 320W, 600W, or 1000W power supplies. Use these 4 mounts to secure any of the 12VDC or 24VDC versions of the power supplies mentioned above. If mounting to a vertical surface such as a wall, be sure that the cooling vents are pointed upwards to allow heat to escape the unit. Use these clips to secure our 12VDC or 24VDC 200W, 320W, 600W, and 1000W indoor transformers to any drillable surface. Sold in sets of 4, 4 mounting screws included.

(4) Mean Well Mounting Brackets with Screws for 200W, 320W, 600W & 1000W PS

110V Wall Plug Cord Three Prong - 6ft

SKU: LA-EL-CON1     View Product Page
A three prong 110V wall plug power cord for LED Power Supplies. This cord is used to connect a power supply to a 110 volt outlet. 16AWG, 6' long 3 prong, 3 wire. Black wire = Load, White wire = Neutral, Green wire = Ground.

110V Wall Plug Cord Three Prong - 6ft
