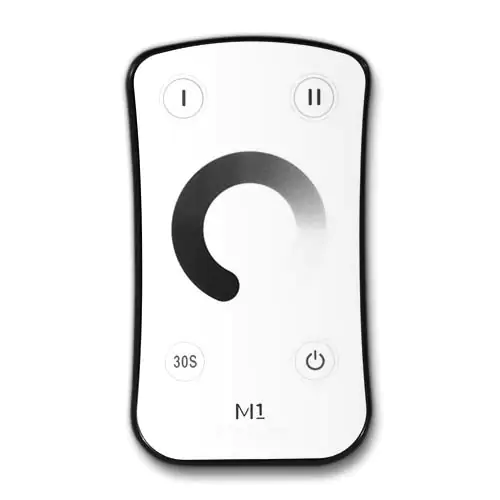

Our Mini LED Sync Dimmer uses the latest technologies to deliver functional LED dimming control in a small and concealable package. The touch sensitive Monochrome RF Remote offers smooth 5-100% dimming with 50% and 100% quick control buttons. Using state of the art radio frequency control, the user can pair unlimited Mini Remote Controls to a single Mini Receiver. Likewise, each remote can control an unlimited amount of receivers in the given 30ft RF control range. At 5A x 4CH the Mini Receiver can handle a maximum load of 240W at 12VDC or 480W at 24VDC. With it's small size and unique control capabilities this LED Dimmer can be used in any type of LED lighting application.
|Model||Mini Monochrome LED Sync Dimmer|
|Remote Dimensions||4.09"L x 2.36"W x 0.375"H|
|Receiver Dimensions||6.89"L x 1.73"W x 1.18"H|
|Type||PWM, 1 Color|
|Input Power||5 - 24VDC|
|Output Power||5A x 4CH|
|Maximum Watts||12VDC - 240W|
24VDC - 480W
|Operating Temp||-22° ~ 131°F|
|Warranty Period||1 Year|
|RF Receiver Radius||150ft (line of sight)|
Ribbon Star Max 2835, CRI 90+, Warm White LED Strip Light - ETL 12VDC - 118" (3m)
SKU: RL-DX-RSM2-WW-10 View Product Page
Our new high CRI Ribbon Star Max Strip Lights use the latest 2835 type LED chip to provide bright and efficient low energy lighting with a lifespan of 50,000 hours. With a color temperature of 2900-3200K this warm white strip is ideal for more calm and relaxing indoor environments. You can cut this strip every 0.98" and re-connect by soldering or using our quick connectors, making it easy to conform to any type of under cabinet, toe kick, drop ceiling, display cases or any other indoor accent lighting. The 90+ CRI (color rendering index) output provides clean and vivid lighting for more attraction and color pop on objects or while taking photos, for example the yellow of a banana will appear more vibrant under a higher CRI light. A high lumen output of 306 lumens per foot, plus the power output of 2.92W per foot means that this strip is highly efficient outputting 105 lumens per watt. Use our strips inside of our aluminum channels with covers to create custom light bars and fixtures. Each strip light requires a 12VDC power source, 29W per 3m roll, and can be dimmed using any of our PWM dimmers or dimmable power supplies. Each roll includes two quick connectors to bare lead wire. This product is ETL listed for class 2 wiring, RoHS and CE approved.
Ribbon Star Max, White LED Strip Light - UL 12VDC
SKU: RL-SC-RSM-W-10 View Product Page
The UL Listed Ribbon Star Max LED Ribbon is a perfect solution for backlight and ambient light applications. This 118" (3 meters, approximately 10 Feet) ribbon can be cut every one inch and has many quick connection options for easy connection. Ribbon comes with 3M™ 200MP mounting tape on the back, for the best long-term mounting solution. Six (6) SMD LEDs per two inches, 2.92W per foot of power required for this strip of light. Can be used for coves lighting, toe kicks, under cabinet, backlighting, crown molding and many more applications. Requires a 12VDC Constant Voltage power supply, 6500K color tempurature. Comes with two quick connectors. UL Listed for class 2 low voltage luminaries and fixtures, RoHS and CE approved.
Mean Well LED Power Supply Two Output 100W - 12VDC
SKU: PS-MW-100-12 View Product Page
A 100W Mean Well 12VDC LED transformer / power supply, 100-120VAC or 200-240AC input and 12VDC output through two terminals. Built in short circuit, overload, and over voltage protection make this power supply long lasting and dependable. For dry locations only. Has screw down style connections. It can be used to connect LED Modules, LED Lights, LED Light Ribbons, RGB LED lighting and other LED Lighting products. ULRecognized, RoHs, and CE approved. Can connect up to 90 one watt led lights. Only install face up or in a manner that the cooling grate faces upwards with sufficient breathing space.
110V Wall Plug Cord Three Prong - 6ft
SKU: LA-EL-CON1 View Product Page
A three prong 110V wall plug power cord for LED Power Supplies. This cord is used to connect a power supply to a 110 volt outlet. 16AWG, 6' long 3 prong, 3 wire. Black wire = Load, White wire = Neutral, Green wire = Ground.
