Waterproof Mini RGB LED Signal Amplifier, 5-24VDC 4A/CH


Product Description

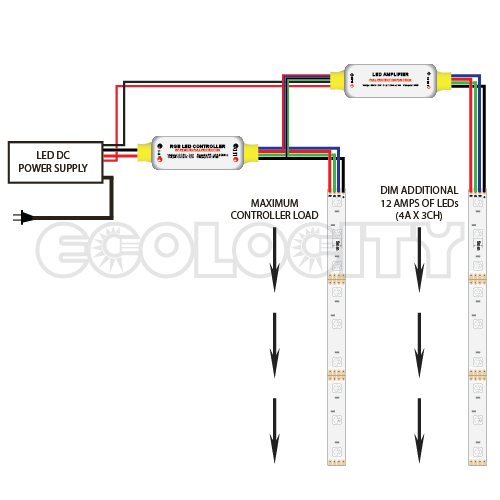

This Mini Waterproof RGB LED Signal Amplifier is IP68 rated and can be used to extend the control signal on any outdoor or indoor LED lighting project using 5-24VDC constant voltage RGB LEDs. When you have exceeded the maximum load of your RGB LED controller use this signal amplifier to provide the same control signal to another 12A (4A x 3CH) of RGB LED strip lights, modules, or fixtures. By adding this RGB Amplifier and another power supply you can add up to 144W of RGB Lighting at 12VDC or 288W at 24VDC to your existing RGB lights. For use with 4 pin, 3 loop, common anode style RGB Lighting. Simple bare wire connections make installation a breeze on any new or existing project. The waterproof rating is not designed to be submersed, or meant to be exposed directly to outdoor elements.

Product Downloads
Product Specifications
ModelWaterproof Mini RGB LED Signal Amplifier

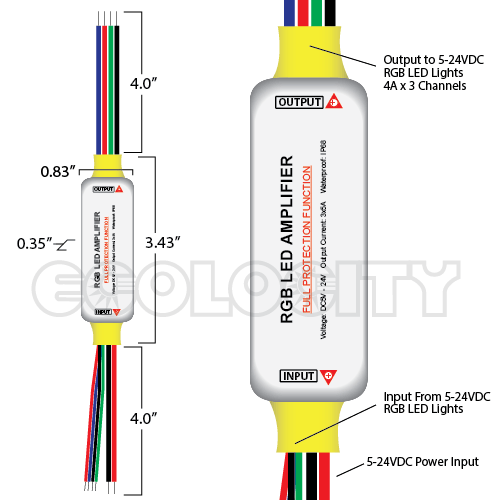

DimensionsClick Here
Type4 Pin, 3 Loop, Common Anode
>Constant Voltage DC Power4-24VDC 4A per Channel Max
Warranty Period1 Year
You Pay
5% off
8% off
12% off
15% off
Reveal - Click the arrow or text to reveal answers.
CSR - Customer service representatives.
Purchaser - Verified purchasers of this product.

Waterproof Mini RGB LED Controller with RF Remote, 5-24VDC 5A/CH

SKU: LC-LF-8RGB     View Product Page
This Mini Waterproof 5-24VDC RGB LED Controller is loaded with functionality and has an RF remote range of up to 50ft. It can be used to control color effects for common anode style 5-24VDC constant voltage RGB LED Lights. With 5A per channel output this controller can handle 75W at 5VDC, 180W at 12VDC, and 360W at 24VDC. Functions include 30 static colors with 5 levels of dim (minimum dim level %30), and 43 varieties of color flashing, strobing, and fading modes with 10 levels of speed adjustment. Each remote can be paired with a controller by pressing the power button and pause together within 5 seconds of DC power to the controller input. Power input is connected by 16AWG bare lead wires, and and signal output is connected by 18AWG bare wire leads. For quick and easy wire connections use some of our wire snap connectors found below. The mini controller (not remote) is IP68 waterproof rated but not designed to be submersed in water or directly exposed to outdoor elements.

Waterproof Mini RGB LED Controller with RF Remote, 5-24VDC 5A/CH

Ribbon Star, Waterproof RGB 90 LED Strip Light - UL 12VDC - 118" (3m)

SKU: RL-SC-RS-RGB2-T-3M     View Product Page
Our high end UL Listed Ribbon Star RGB 90 LED Ribbon has super bright 3 in 1 RGB SMD LEDs on board and can produce 16 million shades of brilliant color. Each roll of tape light is surrounded by a commercial grade silicon mold giving it an IP66 outdoor rating, making it waterproof (non-submersible), dust and UV proof. Manufactured with 3 LEDs every 4 inches this 118" (3m) roll has half the 5050 type LEDs than our RGB 180 strip, making it ideal for accent, mood, and color changing lighting in any outdoor or indoor environment. Comes with 3M™ VHB™ mounting tape on the back, for the best long-term mounting solution. 22W of constant voltage 12VDC power needed for this 118" strip (2.2W per foot). This RBG LED light ribbon can be used for indoor and outdoor applications such as landscape accent, architectural accent, entertainment lighting, bars, casino, pathway lighting, RGB backlighting and in theater sets. Each roll includes 10 clear plastic screw down holders, 4 closed end caps, 4 end caps with holes for wiring, and a waterproof connector at each end. See link below for demonstration video. This LED Strip Light is UL Listed for class 2 luminaries and fixtures, RoHS and CE approved.

Ribbon Star, Waterproof RGB 90 LED Strip Light - UL 12VDC - 118" (3m)
4.92ft (1.5m) Half Reel
9.84ft (3m) Full Reel
