Motion Sensor for LED Strip Lights, 12-24VDC 60W
SKU: LC-KL-SENS-PIR
Description

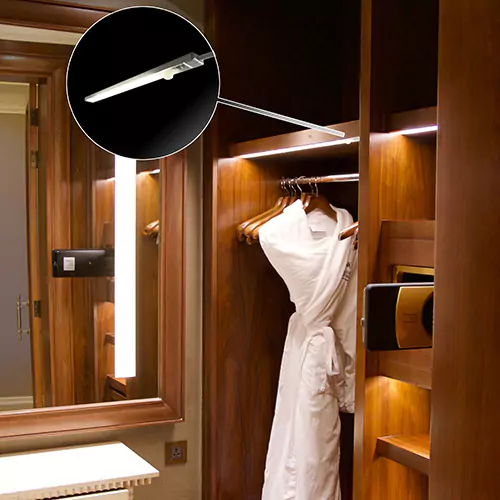

Create and LED Strip Light Motion Sensor using our amazing inline PIR motion sensor that solders directly to your led tap and then fits directly into an aluminum mounting track. Simply solder to the strip with lead wires, then drill a 3/8" to 7/16" hole in the cover and vualá you have a custom motion sensing light with a 10ft radius. Perfect for closets, cabinets, bathrooms, laundry rooms, or dark spaces needing temporary light once human motion is detected. Works with 12V and 24VDC with a 60 watt maximum load capacity.
Specifications
| SPECIFICATIONS | |
| Model | LED Extrusion Switch with Touch Sensor |
| SKU | LC-KL-SENS-2 |
| Dimensions | 1.57" x 0.47" x 0.47"H |
| Input/Output Connection | 2 Wire (+/-) |
| Input Power | 12-24VDC |
| Output Power | 3A x 1CH |
| Maximum Watts | 12VDC - 36W 24VDC - 72W |
| Rating | Indoor |
| Operating Temp | -4° ~ 149°F |
| Warranty Period | 1 Year |
| Previous Mode on Power Cycle | Yes |
| Dimming Levels | 5-100% |
| Click For Product Data Sheet |
| Click For Connection Guide |
Dimensions
Reviews
|
Product Rating |
Write a Review |
|---|---|
|
|
|
|
- There are currently no reviews for this product
|
|
Questions
|
(1) Product Question |
Have a Question? |
|---|---|
|
|
|
|
Mik asked: Jun 27, 2025 I am planning to install LED lights in my Staircase wall with two motion sensors. One being at the top and one sensor at the bottom of the staircase. Would that work if I install two motion sensor on one LED strip? Let me know what should I buy along? I'm planning to install half inch channel from your website to fit inside half inch drywall. I need about 12 feet long of LED lights with channels. but let me know about this motion sensors if I can install two of these on one strip of LED light. Ecolocity LED Responded: Jun 30, 2025 Hi Mik, I understand what you are trying to do. Two controllers on the same strip light is not going to work since they will be trying to cross communicate with each other. I think what you would have to do is splice two sensors into one controller. Send me your email and I can test it out for you to be sure it will function properly. |
|
