RGB LED Spot Bulb MR16 with screw down 4 wire connect 7W

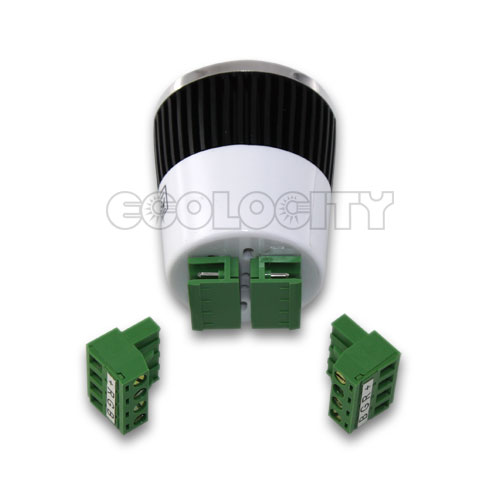

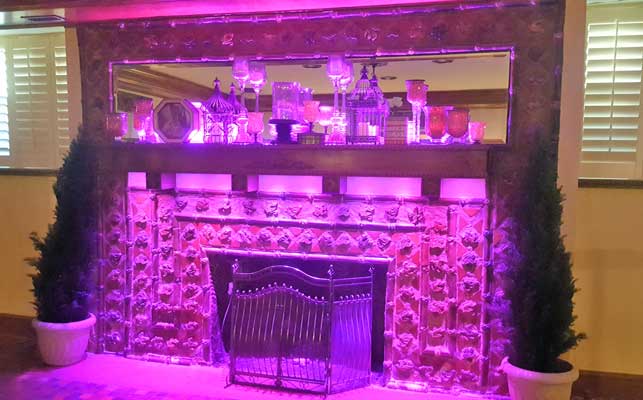

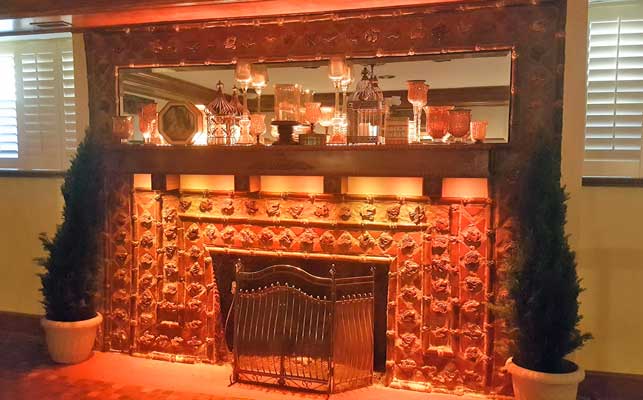

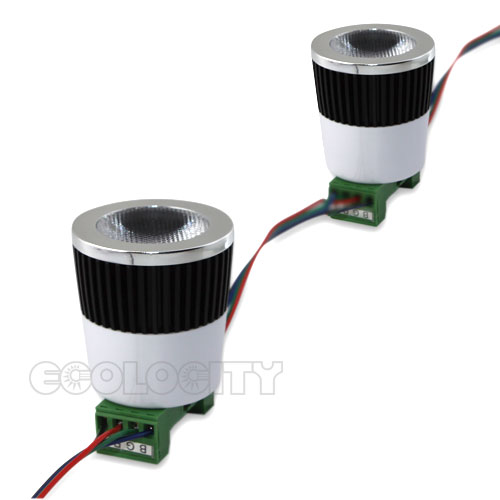

RGB LED Spot Bulb terminal base Terminal RGB Spot Bulb Daisy Chain RGB Bulb terminal removed Orange Example Purple Example Blue Example
RGB LED Spot Bulb terminal base Terminal RGB Spot Bulb Daisy Chain RGB Bulb terminal removed Orange Example Purple Example Blue Example

SKU: LB-AT-RGB1

Order will ship: Monday, Oct 14 * If placed by Monday, Oct 14, 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S. * Excluding oversized items. See Exclusions
Buy
Discount
You Pay
5+
5% off
$19.00
10+
10% off
$18.00

Description

Add some flare to your home, business, or any indoor lighting project with this RGB LED Spot Bulb. It has a projected life span of 30,000 hours and is designed to plug directly into any suitable 12VDC RGB lighting controller or pre-existing 12VDC RGB system. What is unique about this product is that in can be incorporated with other types of 12VDC RGB LED product such as RGB LED Strip Lights and RGB LED Modules. These truly are a unique RGB LED bulb due to the fact that they plug directly into any 12VDC constant voltage RGB Controller and can be daisy chained in a series with 10 bulbs maximum. To wire more than 10 bulbs to an RGB controller use parallel wire connections. Low heat, No UV, No IR. CE, ROHS Certified.

Specifications

SPECIFICATIONS
ModelRGB LED Spot Bulb 4 Wire Base - 7W
SKULB-AT-RGB1
Dimensions1.89"W x 2.625"T
Connection Type4 Wire RGB(+)
Power12VDC
Watts7 Watts
LumensR: 30 lm
G: 60 lm
B: 12 lm
WavelengthR: 625 nm
G: 525 nm
B: 460 nm
Max Serial Connection10 Spot Bulbs
Lifespan30,000 Hours
Warranty Period1 Year
