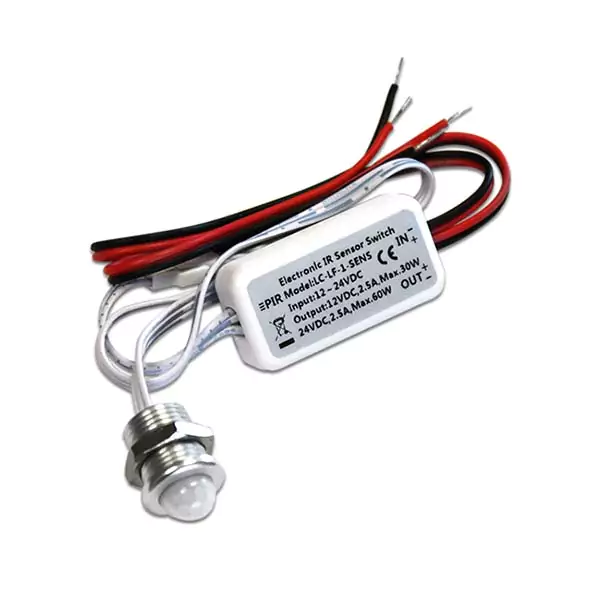

LED On/Off Switch with PIR Motion Sensor, 12-24VDC 2.5A

SKU: LC-LF-1-SENS

Product Description

Our mini PIR motion sensing switch is a small and effective low voltage on/off switch for 12-24VDC constant voltage LED lighting products. The sensor detects motion within a 10ft radius which then switches your lights on for 30 seconds or until no more motion is detected. With a 2.5 amp output this switch can control up to 30 watts of 12VDC lighting or 60 watts of 24VDC lighting using bare wire connections. The sensor is conveniently attached to a threaded bolt designed to be permanently installed in any 0.47"-0.50" diameter hole using a 15mm size nut. This product is only intended to be used in a dry environment, ideal applications include dark areas where a light switch is inconvenient such as laundry rooms, bathrooms, attics, basements, hallways, garages, sheds, and storage areas. For larger installations use with a single channel signal amplifier to increase the load output.

Product Downloads
Product Specifications
SPECIFICATIONS
ModelLED On/Off Switch with PIR Motion Sensor
SKULC-LF-1-SENS
Dimensions1.57"L x 0.81"W x 0.43"H
Input Connection2 Wire (+/-) 22AWG
Output Connection2 Wire (+/-) 22AWG
Input Power12 - 24VDC
Output Power2.5A x 1CH
Maximum Watts12VDC - 30W
24VDC - 60W
RatingDry
Operating Temp-4° ~ 140°F
Warranty Period1 Year
Wiring Diagrams
