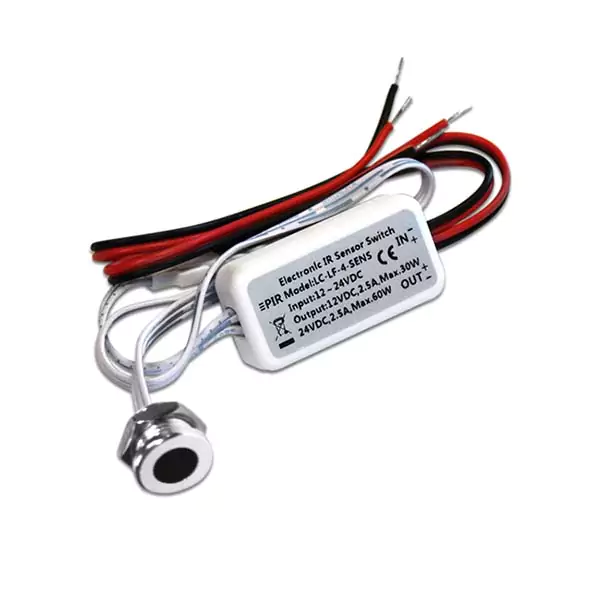

On/Off LED Switch with IR Sensor, 12-24VDC 2.5A

SKU: LC-LF-4-SENS

Product Description

Our mini Sensor Switch is a small and effective low voltage on/off switch for 12-24VDC constant voltage LED lighting products. With a 2.5 amp output this switch can control up to 30 watts of 12VDC lighting or 60 watts of 24VDC lighting using bare wire connections. To operate simply wave your hand within 0.6" of the IR sensor to turn your lights on and off. The sensor is conveniently attached to a threaded bolt designed to be permanently installed in any 0.47"-0.50" diameter hole using a 15mm size nut. This product is only intended to be used in a dry environment, ideal applications include cabinet lighting, displays, lamps, furniture, cove lighting, or any other lighting area requiring a small, low power, on off sensor switch. For larger installations use with a single channel signal amplifier to increase the load output.

Product Downloads
Product Specifications
SPECIFICATIONS
ModelLED On/Off Switch with PIR Sensor
SKULC-LF-4-SENS
Dimensions1.57"L x 0.81"W x 0.43"H
Input Connection2 Wire (+/-) 22AWG
Output Connection2 Wire (+/-) 22AWG
Input Power12 - 24VDC
Output Power2.5A x 1CH
Maximum Watts12VDC - 30W
24VDC - 60W
RatingDry
Operating Temp-4° ~ 140°F
Warranty Period1 Year
Previous State on Power CycleYes
Wiring Diagrams
thumb
$25.99
Buy
Discount
You Pay
6+
5% off
$19.95
15+
8% off
$19.32
30+
12% off
$18.48
75+
15% off
$17.85
