Ribbon Star 50/50, LED Strip Light RGB Lux - ETL 24VDC

4 star rating

SKU: RL-DX-RLX-RGB-3M

Product Description

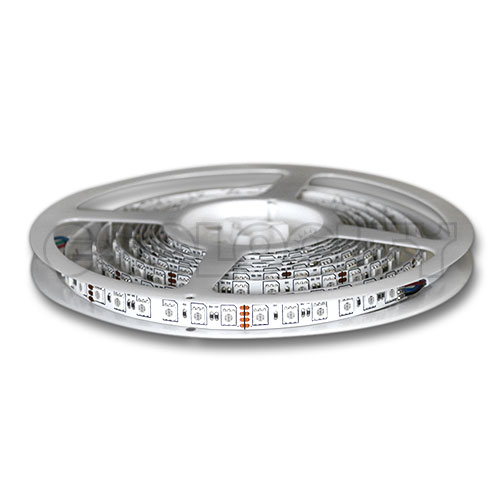

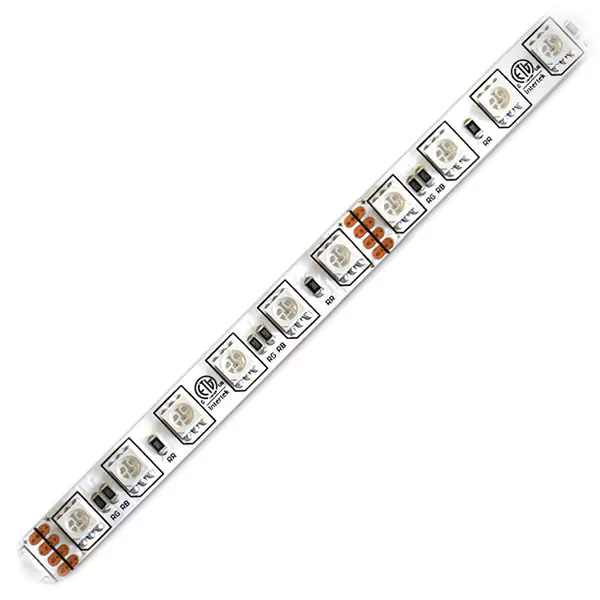

Our ETL Listed Ribbon Star RGBLux Strip Lights have the highest density of super bright 3 in 1 RGB SMD LEDs of any RGB strip light available on the market. Boasting 6 LEDs every 2.75" this strip has 72 more 5050 RGB chips than our 3m roll of popular RGB 180 LED Strip Light. With a high density of LEDs, RGB Lux strip is ideal for creating line of light color changing fixtures using our aluminum strip light channels with plastic covers. This 118" (3m) LED strip can be cut every 2.75 inches and can be soldered to re-connect. Comes with 3M™ mounting tape on the back, for the best long-term mounting solution. 54W of constant voltage 24VDC power needed for this 118" strip (5.4W per foot). This RBG LED Light strip can be used for entertainment lighting, bars, casino lights, full color cove lights, RGB backlighting and in theater sets. ETL Listed for class2 circuits, RoHS and CE approved.

Product Downloads
Click For Product Data Sheet
RGB Lux 24VDC Connection Guide
LED Strip Light Comparison Guide
Click For Wire to Strip Soldering Video
Click For Overlap Strip Soldering Video
Calculate Electrical Load
Enter Length: ft
* 5.4 Watts =
0.00 Watts
* Power Supply capacity must be larger than minimum lighting load.
Product Specifications
SPECIFICATIONS
ModelRibbon Star 50/50 Lux, 118" (3m)
SKURL-DX-RLX-RGB-3M
Dimensions118"L x 0.40"W x 0.07"H
Connection Type4 Wire RGB(+)
LED Chip Type5050 SMD
LED Quantity6 LEDs per 2.75"
LEDs Per Strip252 SMD LEDs
Input Power24VDC Constant Voltage
Watts5.40W per foot
Beam Angle120°
Lumens213 lm/ft
RatingIP20 Indoor
Operating Temp-4° ~ 113°F
Max Serial Connection20 Feet
CertificationETL Listed, RoHS, CE
Product Lifetime50,000 Hours
Warranty Period2 Years
Wiring Diagrams
Dimmer
Amplifier
Large Load
Ribbon Star RGBLux Dimensions RGB 24V Light Meter
3.28ft (1m) Custom Length
SKU: RL-DX-RLX-RGB-1M
$34.99
9.84ft (3m) Full Reel
SKU: RL-DX-RLX-RGB-3M
$94.99
Buy
Discount
You Pay
6+
5% off
$90.25
13+
8% off
$87.40
31+
12% off
$83.60
61+
15% off
$80.75
100+
18% off
$77.90
Reveal - Click the arrow or text to reveal answers.
CSR - Customer service representatives.
Purchaser - Verified purchasers of this product.

For B2B or Large Quantity Price Info Click Here

Basic RGB Strip Light Layout

RGB Strip Setup

Product Reviews

Write a Review

Note: * Indicates a required field

Review Information

(email address will not be displayed)
Your Rating
reCAPTCHA Verification

Worked very well


Installed these in a clients cabinet/wet bar area. Great density and brightness. Used a track with a white lens, no hot spots, good brightness. Segment lengths seemed good (no hot spots, even level of light). Wished they were 48v, but it worked fine. Only installed for a week, so no feedback on longevity. Hence the 4 stars.

Jan 23, 2022 | Adcolor
