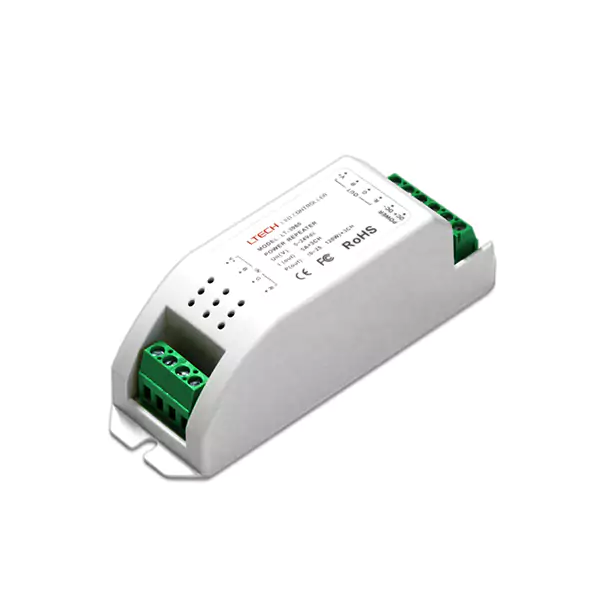

Use an RGB Signal Amplifier to boost or repeat the control signal from your RGB controller. This allows you to further extend the control signal to a larger lighting load. You can add any amount of signal amplifiers in a control circuit for larger lighting projects where the controller itself does not have the amperage to drive the entire load. For Constant Voltage 5-24VDC system only, 5A by 3 channels of power maximum thru this amplifier. For use with 4 pin, 3 loop, common anode style RGB Lighting. Wires are connected by screw down type connector.
|Model||RGB Signal Amplifier|
|Dimensions||4.76" x 1.54" x 1.54"T|
|Type||4 Pin, 3 Loop, Common Anode|
|Constant Voltage DC Power||5-24VDC 5A x 3CH|
|Rating||Indoor / Dry|
|Warranty Period||1 Year|
ES4 RGB Light Module with 160° Lens - 12VDC
SKU: MD-HT-ES4-RGB View Product Page
Our 4 Chip RGB LED Modules are created from a lightweight ABS plastic injected molding with a PC (Perspective Control) lens to widen the beam angle to 160 degrees. Each module has four RGB 3in1 LED chips mounted to an internal circuit board with lead wires attached from each end. These modules can be cut or connected from either end of the wire leads. Each bundle of modules comes with a string of 20 pieces containing 3.56" of lead wire between each module. The wider beam angle creates more light dispersion in shallow light boxes and channel letters. These color changing lighting modules require at least 1.44W of 12VDC constant voltage power per module as well as a color controller to operate. To light all 20 pieces you would need a minimum of 28.8 watts of 12VDC power. No more than 20 modules should be powered in a serial connection, 40 modules can be powered in a looped circuit. Please use parallel connections for larger lighting runs. IP66 rating is totally dust tight with protection against direct high pressure water jets (non-submersible).
ES3 RGB LED Module with 160° Lens - 12VDC
SKU: MD-HT-ES3-RGB View Product Page
This LED module is a great color changing backlight module for channel letters, halo lighting and sign lighting. The 160° beam angle provides a wider beam angle that enable less modules to be used with more even lighting diffusion. This product easily conforms to circular and curved layouts. A total of three 5050 SMD chips provide ample lighting with a max power requirement of 0.72W per module. Each module can be cut anywhere on the lead wires between each module. In addition to being able to be used for sign lighting these modules are great for cove and accent lighting and for use as under-cabinet general illumination. A constant voltage DC power source is needed to power this product. The injected plastic molding ABS shell provides long lasting and durable protection from the elements with a quality PC board and 3 surface mount LEDs below. No more than 20 modules should be powered in a serial connection, 40 modules can be powered in a looped circuit. Please use parallel connections for larger lighting runs. IP66 rating is totally dust tight with protection against direct high pressure water jets (non-submersible) for both indoor and outdoor lighting applications.
