SKU: LC-SR-RGB-4ZWM

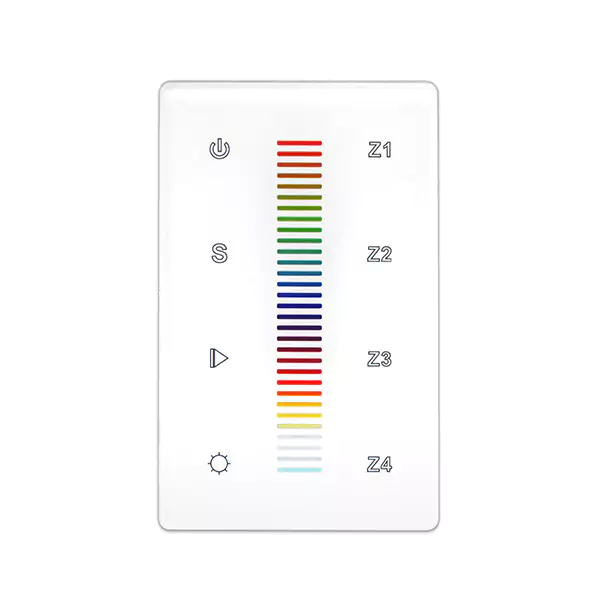

Our UL Recognized RGB LED Color Controller is designed with sleek and stylish glass touch face and can be paired to multiple UL Recognized wireless receivers over 4 zones. The wall controller fits inside a single gang junction box making it an attractive and user friendly way to control your color changing strip lighting and low voltage LED fixtures. Indicator lights make it easy to operate and choose which zones you would like to control. Control zones individually or as a group. When used with the IP67 5A/CH receiver the lights can be controlled from the wall mount touch pad as well as with a smart phone using the 'EasyLighting' app. See specifications and data sheets below for power input, max load and pairing instructions.
Each wall controller requires at least 1 wireless receiver to operate. An unlimited amount of receivers can be paired over 4 zones. WiFi Receivers can be controlled from wall control or 'EasyLighting' smart phone app. Each receiver can simultaneously be paired up to 8 different remote controls.
| Click For Wall Controller Data Sheet |
| Click For IP20 Receiver Data Sheet |
| Click For IP67 Receiver Data Sheet |
| Click For Receiver Pairing Guide |
| WALL MOUNT SPECIFICATIONS | |
| Model | UL RGB LED Wall Controller |
| SKU | LC-SR-RGB-4ZWM |
| Dimensions | 4.72" x 2.95" x 1.15"D |
| Input Power | 12 - 24VDC |
| Power Consumption | 20mA |
| Rating | IP20 Indoor |
| Operating Temp | 32° ~ 104°F |
| Certification | UL Recognized, RoHS, CE |
| Warranty Period | 1 Year |
| Previous Mode on Power Cycle | Yes |
| Static Color Choices | Color Bar Selection w/ Dimming |
| Color Changing Modes | 10 Modes See Modes |
| IP20 RECEIVER SPECIFICATIONS | |
| Model | IP20 RF Receiver |
| SKU | LC-SR-RGBW-REC |
| Dimensions | 6.69" x 2.32" x 1.14"H |
| Input Power | 12 - 36VDC |
| Output Power | 8A x 3CH |
| Maximum Watts | 12VDC - 288W 24VDC - 576W |
| Rating | IP20 Indoor |
| Certification | UL Recognized, RoHS, CE |
| IP67 RECEIVER SPECIFICATIONS | |
| Model | IP67 RF/WiFi Receiver |
| SKU | LC-SR-RGBW-RCWP |
| Dimensions | 7.11" x 2.90" x 1.50"H |
| Input Power | 12 - 36VDC |
| Output Power | 5A x 3CH |
| Maximum Watts | 12VDC - 180W 24VDC - 360W |
| Rating | IP67 Indoor/Outdoor |
| Certification | UL Recognized, RoHS, CE |
Ribbon Star 50/50, LED Strip Light RGB Lux - ETL 24VDC
SKU: RL-DX-RLX-RGB-3M View Product Page
Our ETL Listed Ribbon Star RGBLux Strip Lights have the highest density of super bright 3 in 1 RGB SMD LEDs of any RGB strip light available on the market. Boasting 6 LEDs every 2.75" this strip has 72 more 5050 RGB chips than our 3m roll of popular RGB 180 LED Strip Light. With a high density of LEDs, RGB Lux strip is ideal for creating line of light color changing fixtures using our aluminum strip light channels with plastic covers. This 118" (3m) LED strip can be cut every 2.75 inches and can be soldered to re-connect. Comes with 3M™ mounting tape on the back, for the best long-term mounting solution. 54W of constant voltage 24VDC power needed for this 118" strip (5.4W per foot). This RBG LED Light strip can be used for entertainment lighting, bars, casino lights, full color cove lights, RGB backlighting and in theater sets. ETL Listed for class2 circuits, RoHS and CE approved.
Ribbon Star 50/50, Waterproof LED Strip Light RGB Lux - UL 24VDC - 118" (3m)
SKU: RL-DX-RLX-RGB-T-3M View Product Page
Our heavy duty UL Listed 24VDC color changing RGB Lux LED Strip Light is encapsulated in a commercial grade IP66 waterproof housing using 252 super bright 3 in 1 RGB SMD 5050 LEDs per 118" to produce over 16 million shades of bright, vivid, and brilliant color. The strip is encapsulated in a durable silicon waterproof coating that provides protection from dust, moisture and UV. There are 6 5050 type surface mount LEDs every 2.75 inches. This 118" (3m) roll is excellent when you need a very colorful indoor or outdoor RGB light strip. Comes with 3M™ VHB™ mounting tape on the back, for the best long-term mounting solution. 54W of constant voltage 24VDC power needed for this 118" strip (5.4W per foot). This RBG LED light ribbon can be used for interior or exterior entertainment lighting, bar lighting, casino lighting, landscape lighting, yacht lighting, 24V Marine applications, patio lighting, deck lighting, or any other indoor or outdoor 24VDC application. Each roll includes a waterproof connector to bare wire at each end, all other accessories are sold separately. This LED Strip is UL Listed for class 2 luminaries and fixtures, RoHS and CE approved. This product is not intended to be submersed or used in underwater applications.
Bright Star 40" x 2.3" Wall Washer 3 in 1 RGB - 60W, 24VDC
SKU: WW-SC-RGB5 View Product Page
This RGB LED Wall Washer is a 40" X 2.323" linear type light with 60W 24VDC rated power use. It has 20 RGB 3 in 1 Epistar LEDs to produce bright and vivid lighting on walls, buildings, ceiling and signs. This wall washer is able to produce up to 16.7 million shades of amazing color. This light fixture can project light up to 100 feet with a 50° beam angle. Mounting clips can slide and turn for custom installation and lighting angles. This light is encased in an IP65 water-resistant aluminum housing. Tempered glass and stainless fasteners give this light long lasting outdoor use. This light can be controlled by RGB or DMX controllers using a 4-pin, 3-loop common anode connection. We recommend no more than two 60 watt wall washers connected in a series. Attached male and female waterproof connection lead wires included. See Product Data Sheet and Installation Guide linked below. For easy connection of wall washers, power supplies and controllers, use the many waterproof connectors wire options. Non-submersible, CE and RoHS approved.
