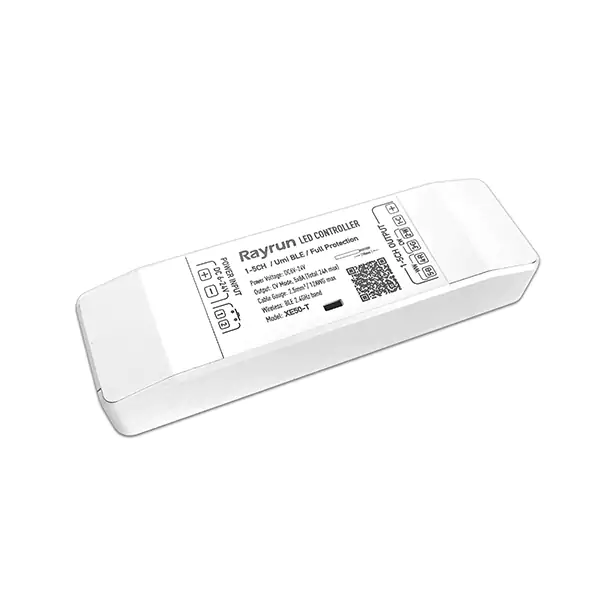

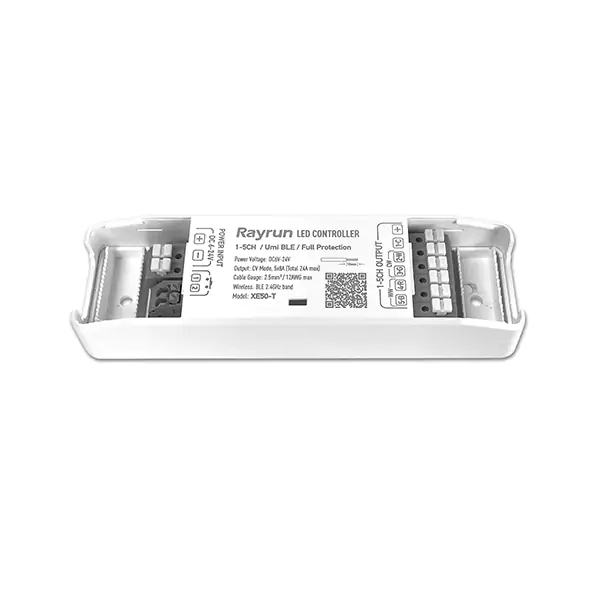

5 in 1 LED Bluetooth Mesh Time Programmable Multi-Zone Controller, 6-24VDC 8Ax5CH

5in1 Bluetooth Controller Controller Wiring 5in1 Devices 5in1 Controller
5in1 Bluetooth Controller Controller Wiring 5in1 Devices 5in1 Controller

SKU: LC-RR-5IN1-BTT

Order will ship: Monday, Jun 17 * If placed by 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S. * Excluding oversized items. See Exclusions
Buy
Discount
You Pay
6+
5% off
$66.50
15+
8% off
$64.40
30+
12% off
$61.60
75+
15% off
$59.50

Description

Our 5 in 1 Bluetooth controller combines the functionality of 5 different controllers into a single control box. Using the 'UMI-Smart' app choose from single color, temperature adjustable, RGB, RGBW, or RGB+CCT LED control. With an impressive output of 8Ax5CH this controller can handle large power loads and uses simple push down wire terminals for connections. Multiple units can be grouped, paired together, or used as separate control types and controlled from a single project inside of the UMI-Smart app. Timing function is available for triggering your favorite lighting scenes. Power loads may vary based on control type, see specification table for more details.

Specifications

Item SKU Clock DC Input Max Current Max Load Rating Operating Temp Wireless Range Warranty
5 in 1 Controller LC-RR-5IN1-BTT Yes 6-24VDC RGB+CCT 8Ax5CH 12V-480W
24V-960W
IP20 -4 ~ 131°F 65ft
(line of sight)
1 Year
RGBW 8Ax4CH 12V-384W
24V-768W
RGB 8Ax3CH 12V-288W
24V-576W
CCT 8Ax4CH 12V-384W
24V-768W
DIM 8Ax5CH 12V-480W
24V-960W
Remote LC-RR-5IN1-BT-REM N/A CR2032 Battery N/A N/A
Wall Panel LC-RR-5IN1-BT-PAN

Dimensions

Bluetooth Dimensions
