SKU: LC-LF-RGBW-BTS

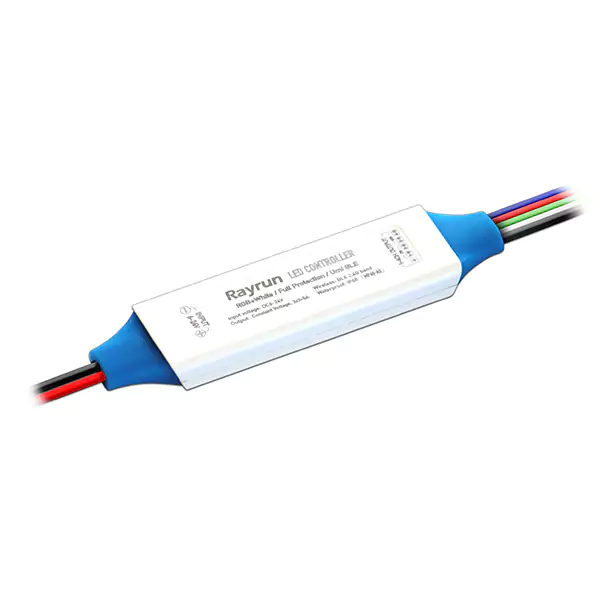

The newly redesigned IP68 mini Bluetooth RGBW LED controller has the ability to sync numerous controllers over 4 zone groups using the free 'Light Mesh' app on an ioS or android device. From the smart phone app you can pair to multiple devices, set up groups, and save your favorite colors and scenes. From the main app control you can choose from millions of static RGB color choices, 0-100% single color white dimming, as well as 42 pre programmed color functions with 99 speed level adjustments. The RGB output is separate from the white output and can control a max load of 3 amps x 3 channels, 108W using 12VDC or 216W using 24VDC; the white output can control a max load of 5 amps or 60W using 12VDC or 120W using 24VDC. There are 16 storage spaces to save your favorite custom colors and 16 storage spaces for quick access to your favorite color changing modes. The Bluetooth control range from controller to smartphone or tablet is approximately 45ft with no walls or interference. The small size and simple bare connection wires, as well as sync and group functions make this controller ideal for any new or existing indoor/outdoor LED lighting design. This product is IP68 waterproof rated but not meant to be submersed in water or directly exposed to any outdoor elements.
SPECIFICATIONS | |
Model | 4 Zone RGBW LED Bluetooth Controller |
SKU | LC-LF-RGBW-BTS |
Dimensions | 3.43" x 0.83" x 0.35"H 4.0" Wire Leads |
Input Connection | 2 Wire (+/-) 16AWG |
Output Connection | 5 Wire RGBW(+) 18AWG |
Input Power | 6 - 24VDC |
Output Power | 3A x 3CH + 5A x 1CH |
Maximum Watts | 12VDC - RGB: 108W / White: 60W 24VDC - RGB: 216W / White: 120W |
PWM Level | 4,000 Steps |
Rating | IP68 |
Operating Temp | -22° ~ 160°F |
App Name | Light Mesh |
Warranty Period | 1 Year |
Previous Mode on Power Cycle | Yes |
Bluetooth Control Radius | 45ft (line of sight) |
Static Color Choices | 16 Million |
Color Changing Modes | 42 Modes See Modes |
Bright Star 4 in 1 RGBW LED Flood Light - 160W, 24VDC
SKU: WW-LG-RGBW-F1 View Product Page
Our outdoor rated color changing RGBW LED Flood lights incorporate 4 in 1 Epistar LEDs to create vibrant color changing output as well as cool white lighting for any indoor or outdoor space. An RGBW Controller is required to change the colors of the fixture as well as a 24VDC Constant Voltage power supply with a power rating more than 160W or larger depending on the amount of lights being driven (sold separately). There are 20 x 8W LEDs to project bright and vivid lighting on walls, trees, buildings, architecture, sculptures, displays and signs. With full dimming control of each color channel this fixture can output over 4 billion shades of color and can also be incorporated with other RGBW lighting products or DMX control systems. These lights can be operated by RGBW or DMX controllers using a 5-pin, 4-loop common anode connection. Each one is encased in an IP65 water-resistant aluminum alloy shell. Tempered glass and stainless fasteners give this light long lasting outdoor use. One 5 wire connector to bare lead is included with each light. This product is non-submersible and will get longest life when installed in an area protected from constant water and sun.
Bright Star 4 in 1 RGBW LED Flood Light - 48W, 24VDC
SKU: WW-LG-RGBW-F2 View Product Page
Our outdoor rated color changing RGBW LED Flood lights incorporate 4 in 1 Epistar LEDs to create vibrant color changing output as well as cool white lighting for any indoor or outdoor space. An RGBW Controller is required to change the colors of the fixture as well as a 24VDC Constant Voltage power supply with a power rating more than 48W (sold separately). There are 6 x 8W LEDs to project bright and vivid lighting on walls, trees, buildings, architecture, sculptures, displays and signs. With full dimming control of each color channel this fixture can output over 4 billion shades of color and can also be incorporated with other RGBW lighting products or DMX control systems. These lights can be operated by RGBW or DMX controllers using a 5-pin, 4-loop common anode connection. Each one is encased in an IP65 water-resistant aluminum alloy shell. Tempered glass and stainless fasteners give this light long lasting outdoor use. One 5 wire connector to bare lead is included with each light. This product is non-submersible and will get longest life when installed in an area protected from constant water and sun.
Mean Well Waterproof LED Power Supply 240W - 24VDC
SKU: PS-MW-240-W-24 View Product Page
This product is a Mean Well brand waterproof LED power converter with a 100-240VAC, or 277VAC (North America Only) input and a 24VDC 10 amp output of 240W. IP67 rated for wet or damp locations. This LED power supply can be used to power 24VDC Constant Voltage LED Wall Washers, LED Lights, LED Light Ribbons, RGB LED lighting and other 24VDC LED Lighting products. Comes with built in PFC (Power Factor Correction) as well as short circuit protection. AC input wire colors are as follow: Brown - Load, Blue - Neutral, Green - Ground. The manufacturer recommends a 92.5% max load of 222 watts. Non-submersible, non uv-proof, UL recognized, RoHS, and CE approved.
Note: * Indicates a required field
Best RGB bluetooth controller I've ever used
This controller, which I've installed on my Tesla Model S and Model 3 to control and customize the RGB lighted front and rear Ts on both cars, is the highest quality and reliability of any controller I've ever used (and that's about half a dozen). It always makes a connection to my iPhone (from as far as 100 feet), the mesh feature is unique to this device, programming is easy, and I can control both front and rear Ts together (for example, I flash both green when the car is being charged). It costs more than other devices, but it's worth every penny.
Jan 22, 2020 | Richard Hesel
