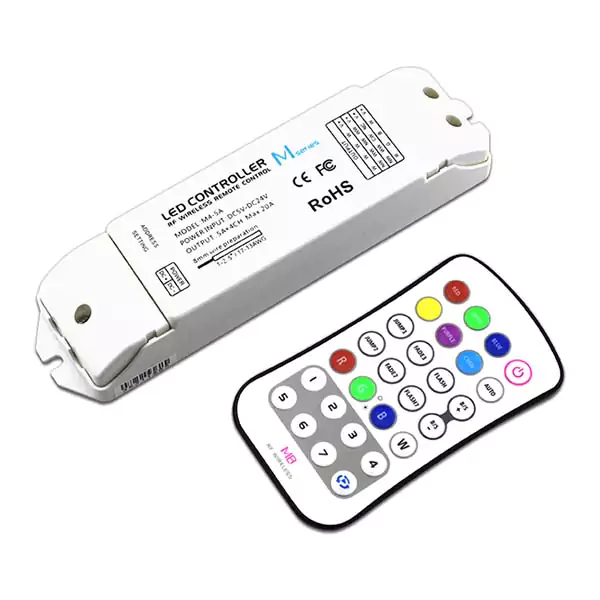

SKU: LC-LT-MRGBW2-KIT
From our series of Mini Controllers comes a new Pro RGBW controller for 5-24VDC constant voltage RGBW & RGBWW led lighting products. Each remote is paired by the user to any number of mini receivers to create wonderful color changing effects along with RGBW dimming control (5-100%) in a variety of indoor lighting applications. Each mini receiver has a 5-24VDC input with a max output rating of 5A x 4 channels or max load of 240W at 12VDC or 480W at 24VDC. Choose from 6 built in modes with brightness and speed adjustment, 6 pre-programmed static colors with dimming adjustment, or create and save up to 7 custom static colors using the RGBW 5-100% dimming control. Previous scenes and dimming levels are stored when 5-24VDC input is powered on/off. The single color LED output is dimmed and controlled independently from the static RGB colors and RGB color changing modes. Remotes and receivers are sold together as part of a kit or can be purchased separately, please choose the controller option you would like from the drop down list.
| SPECIFICATIONS | |
| Model | Mini Pro RGBW LED Controller Kit, 5-24VDC |
| Kit SKU | LC-LT-MRGBW2-KIT |
| Remote SKU | LC-LT-MRGBW2-RT |
| Receiver SKU | LC-LT-MINI-RC |
| Remote Dimensions | 4.09"L x 2.36"W x 0.375"H |
| Receiver Dimensions | 6.89"L x 1.73"W x 1.18"H |
| Input Connection | 2 Wire (+/-) |
| Output Connection | 5 Wire RGBW(+) |
| Input Power | 5 - 24VDC |
| Output Power | 5A x 4CH |
| Maximum Watts | 12VDC - 240W 24VDC - 480W |
| Rating | Indoor |
| Operating Temp | -22° ~ 131°F |
| Warranty Period | 1 Year |
| RF Receiver Radius | 150ft (line of sight) |
| Static Color Choices | 4,096 |
| Color Changing Modes | 6 Modes See Modes |
| Downloads & Info |
| Click For Product Data Sheet |
| Click For Installation Guide |
| Click For Product Video |
| RGB Controller Tutorial |
| Wiring Diagrams |
 |
Mini Pro RGBW RF Remote & Receiver Kit, 5-24VDC 5A/CH
Ribbon Star 50/50, RGB + White LED Strip Light - UL 12VDC
SKU: RL-SC-RS50-RGBW-5M View Product Page
This 4 color LED Strip Light combines RGB and White 5050 LED Chips into a single 16.4' roll. This UL Listed LED Strip can produce over 4 billion shades of brilliant colors using 255 levels of brightness adjustment on each color. There are 3 RGB and 3 White LED Chips every 4 inches. This 16.4' (5m) LED strip can be cut every 4 inches and can be reconnected by soldering or our quick connectors to bare lead wire. Comes with 3M™ mounting tape on the back, for the best long-term mounting solution. 75W of constant voltage 12VDC power is needed for this 16.4' strip (4.4W per foot). All colors of this LED Strip Light can be controlled using our 4 Channel RGB Controller or through 4 DMX channels in a DMX universe. This RBG LED Light strip can be used for entertainment lighting, bars, casino lights, full color cove lights, RGB back lighting, under cabinet LED lighting, stage shows, or virtually any project that requires a full range of vivid LED color. For optimal light output we recommend you connect these lights no longer than 20ft in series. This product comes with two quick connectors to bare lead wire. See link below for demonstration video. This strip light is UL Listed, RoHS and CE approved.
Ribbon Star 50/50, RGB + Warm White LED Strip Light - UL 12VDC
SKU: RL-SC-RS50-RGBWW-5M View Product Page
This 4 color LED Strip Light combines RGB and Warm White 5050 LED Chips into a single 16.4' roll. This UL Listed LED Strip can produce over 4 billion shades of brilliant colors using 255 levels of brightness adjustment on each color. There are 3 RGB and 3 Warm White LED Chips every 4 inches. This 16.4' (5m) LED strip can be cut every 4 inches and can be reconnected by soldering or our quick connectors to bare lead wire. Comes with 3M™ mounting tape on the back, for the best long-term mounting solution. 75W of constant voltage 12VDC power is needed for this 16.4' strip (4.4W per foot). All colors of this LED Strip Light can be controlled using our 4 Channel RGB Controller or through 4 DMX channels in a DMX universe. This RBG LED Light strip can be used for entertainment lighting, bars, casino lights, full color cove lights, RGB backlighting, under cabinet LED lighting, stage shows, or virtually any project that requires a full range of vivid LED color. For optimal light output we recommend you connect these lights no longer than 20ft in series. This product comes with two quick connectors to bare lead wire. See link below for demonstration video. This strip light is UL Listed, RoHS and CE approved.
Mean Well LED Power Supply CV 350W - 12VDC
SKU: PS-MW-350-12 View Product Page
This Mean Well 350W, 12VDC LED Power Supply / Transformer, has a 115VAC or 230VAC input and 12VDC output through three terminals. For dry locations only. Has screw down style connections. Comes with plastic covering to protect screw down terminals and a cooling fan to prevent high heat during operation. Note: The cooling fan runs noisy and may not be suitable for all applications. It can be used to connect LED Modules, LED Lights, LED Light Ribbons, RGB LED lighting and other LED Lighting products. UL Recognized and CE approved. Only install face up or in a manner that the cooling vents face upwards with sufficient breathing space.
