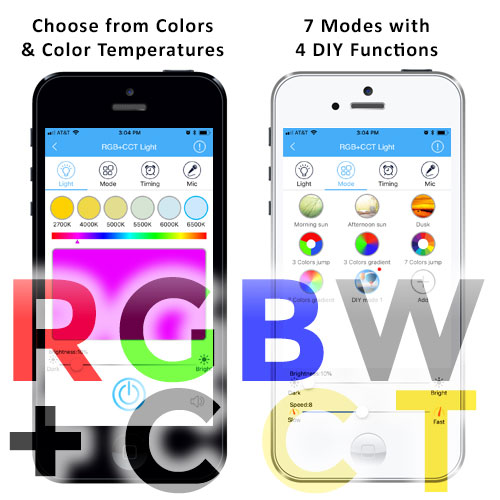

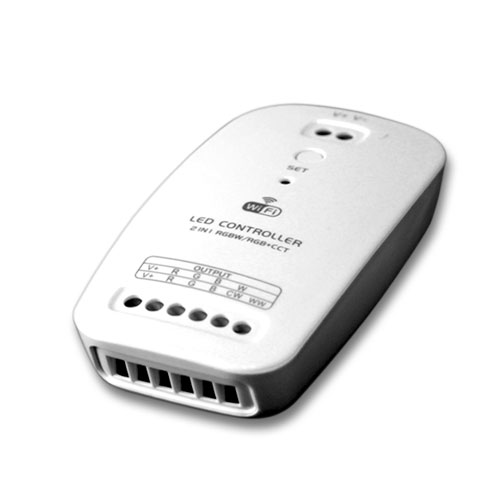

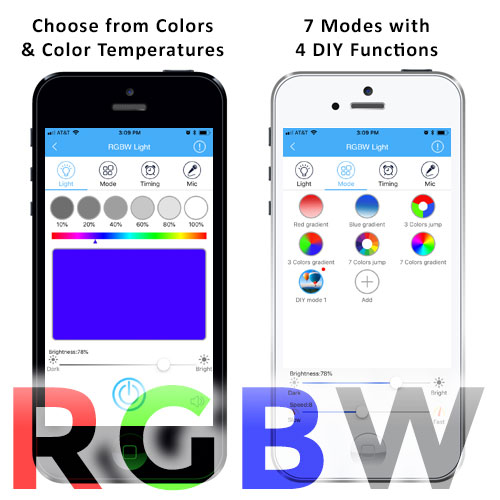

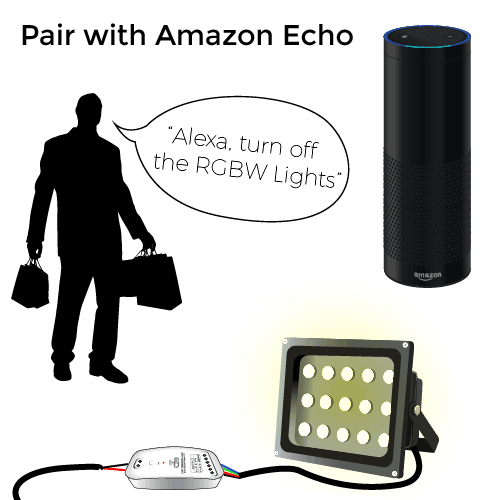

The 2 in 1 Wifi Controller is an affordable RGBW or RGBW+WW smart device that is packed with control features. After downloading the 'OPEN-LIT' smartphone app and creating a username and password you can pair unlimited WiFi devices over 10 zones. The pairing process is simple and effortless. Please note this controller requires 2.4G network connection and will not connect over 5G. A small button on top of the controller lets you set the control type to 4 Channel RGBW or 5 Channel RGBW+WW. In the app there are loads of features to control the output of your lights including 4 DIY modes choosing 6 color choices with speed and brightness adjustment. You can even control the controller remotely while not on the WiFi network. This controller is also compatible with Amazon Echo and can be controlled through voice commands to Alexa. The setup is easy and the devices can be powered on/off, dimmed, set to a warmer or cooler temperature, or set to a specific color cyan, red, green, etc. Power output for RGBW is 5 amps x 4 channels allowing for a maximum of 20 amps out. Power output for RGBW+WW is 5 amps x 5channels for a maximum of 25 amps of 9-24VDC lighting to be powered using this controller, see specifications for more information.
|Model||2 in 1 Wifi Controller for Smartphones & Amazon Echo|

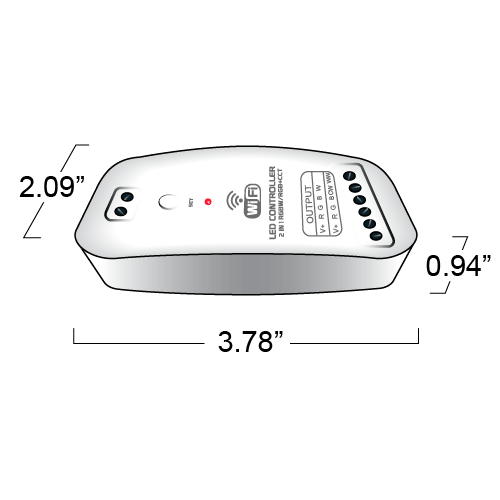

|Dimensions||3.75" x 2.09" x 0.94"H|
|Input Connection||2 Wire (+/-)|
|Output Connection||5 Wire RGBW(+)|
6 Wire RGBW/WW(+)
|Input Power||9 - 24VDC|
|Output Power||RGBW: 5A x 4CH|
RGBW+WW: 5A x 5CH
|Maximum Watts RGBW||12VDC - 240W|
24VDC - 480W
|Maximum Watts RGBW+WW||12VDC - 300W|
24VDC - 600W
|Ambient Temperature||-22° ~ 131°F|
|Rating||Indoor / Dry|
|Pairing Distance||150ft Must be 2.4G Network!|
|Zone Control||10 Groups|
|Previous Mode on Power Cycle||Yes|
|Real Time Clock||Yes|
|Amazon Echo Control||Yes|
|Warranty Period||1 Year|
This controller requires 2.4GHz network connection and will not connect over 5GHz. If you are having issues connecting through the app, login to your wireless router and be sure that 2.4GHz is enabled.
Bright Star 4 in 1 RGBW LED Landscape Light - 40W, 24VDC
SKU: OL-LG-RGBW-S1 View Product Page
Our heavy duty IP65 Bright Star LED outdoor and landscape light uses 5 Epistar 4 in 1 8W RGBW LEDs to create bright and vivid color changing effects as well as a pure white 6000-6500K output in any outdoor environment. The 45 degree beam angle and 40W output lets the light easily shine up to 100ft, to illuminate landscape, architectural, and building features. Each light comes with a T connector to male and female plugs for simple installation of multiple fixtures using our 80" jumper cables or outdoor 5 conductor cable. The tempered glass and aluminum alloy housing with mounting brackets makes installation simple for long term use. Control this light with any of our common anode RGBW controllers with at least 40W of 24VDC constant voltage power supplied for the power load. This light is durable, functional and brings billions of color choices to any outdoor setting.
Bright Star 4 in 1 RGBW LED Flood Light - 48W, 24VDC
SKU: WW-LG-RGBW-F2 View Product Page
Our outdoor rated color changing RGBW LED Flood lights incorporate 4 in 1 Epistar LEDs to create vibrant color changing output as well as cool white lighting for any indoor or outdoor space. An RGBW Controller is required to change the colors of the fixture as well as a 24VDC Constant Voltage power supply with a power rating more than 48W (sold separately). There are 6 x 8W LEDs to project bright and vivid lighting on walls, trees, buildings, architecture, sculptures, displays and signs. With full dimming control of each color channel this fixture can output over 4 billion shades of color and can also be incorporated with other RGBW lighting products or DMX control systems. These lights can be operated by RGBW or DMX controllers using a 5-pin, 4-loop common anode connection. Each one is encased in an IP65 water-resistant aluminum alloy shell. Tempered glass and stainless fasteners give this light long lasting outdoor use. One 5 wire connector to bare lead is included with each light. This product is non-submersible and will get longest life when installed in an area protected from constant water and sun.
Mean Well Waterproof LED Power Supply 240W - 24VDC
SKU: PS-MW-240-W-24 View Product Page
This product is a Mean Well brand waterproof LED power converter with a 100-240VAC, or 277VAC (North America Only) input and a 24VDC 10 amp output of 240W. IP67 rated for wet or damp locations. This LED power supply can be used to power 24VDC Constant Voltage LED Wall Washers, LED Lights, LED Light Ribbons, RGB LED lighting and other 24VDC LED Lighting products. Comes with built in PFC (Power Factor Correction) as well as short circuit protection. AC input wire colors are as follow: Brown - Load, Blue - Neutral, Green - Ground. The manufacturer recommends a 92.5% max load of 222 watts. Non-submersible, non uv-proof, UL recognized, RoHS, and CE approved.
