SKU: LD-LG-5S-RGBW

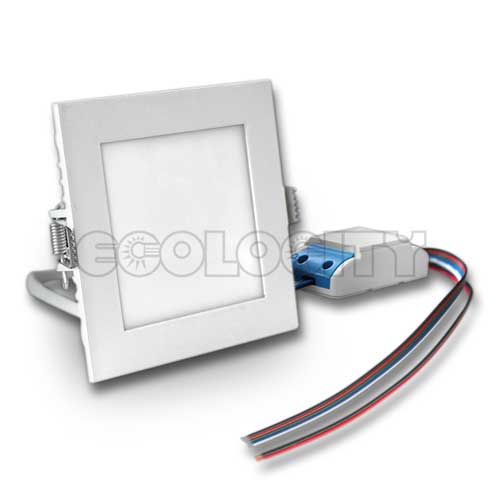

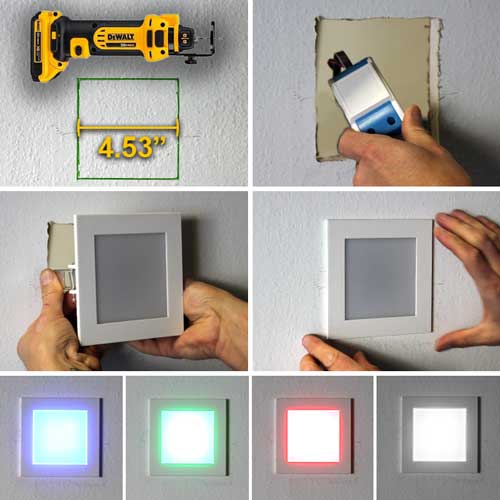

Our 5 inch x 5 inch square shaped RGBW LED ceiling light is a new style of flush mount lighting fixture designed for common drywall and ceiling mount. The 4 in 1 Epistar RGBW chips allow for RGB color changing abilities combined with the single channel cool white (6000-6500k) light output. Using 255 levels of dimming over the 4 channels you can create billions of color variations as well as a pure white output. To install simply mount this fixture in any square drywall hole with a 4.53" x 4.53" dimension. Using 32W of power when all 4 channels are on full brightness this 24V product provides energy saving, bright, programmable lighting to set the mood for any occasion. Emits no UV or IR, RoHS and CE approved. For use only with compatible 24VDC Constant Voltage power supplies and 24VDC common anode 4 channel RGBW controllers.
Click For Product Data Sheet |
RGBW Fixture Connection Guide |
Calculate Electrical Load | |
* Power Supply capacity must be larger than minimum lighting load. |
SPECIFICATIONS | |
Model | 5"x5" Square RGBW LED Ceiling Light - 32W, 24VDC |
SKU | LD-LG-5S-RGBW |
Dimensions | 4.92" x 4.92" x 1.77"H |
Mounting Hole | 4.53" x 4.53" |
Connection Type | 5 Wire RGBW(+) |
LED Chip Type | Epistar 4 in 1 4Wx2W |
Input Power | 24VDC Constant Voltage |
Watts | 32 Watts |
Beam Angle | 60° |
Lumens | R:280lm G:440lm B:160lm W:600lm |
Rating | IP44 Indoor |
Operating Temp | -4°~122°F |
Lifetime Hours | 50,000 Hours |
Certification | CE, RoHS |
Warranty Period | 1 Year |
The included driver must be used inline from your RGBW ceiling light. Tampering or excluding this device will result in electrical hazard. Both Driver and Controller require 24VDC power to operate.
4 Knob RGBW LED Controller with Digital Display & RF Remote, 12-24V 5A/CH
SKU: LC-LF-3RGBW View Product Page
Our 4 Knob RGBW LED Controller can be used to control your 4 Color RGBW LED Strip Lights, modules, or 12-24VDC constant voltage lighting fixtures. The digital display above each knob lets you see the 0-255 dimming values of your Red, Green, Blue, and White output levels. Combining all the options of each output you can create over 4 trillion different color hues and fine tune any color that you want. 37 built in color changing effects with speed and brightness adjustments can be accessed using the RF remote control. Each of the 4 color outputs can control up to 5 amps of LED lighting, or 60 watts using 12VDC, 120 watts using 24VDC. Multiply that value over the 4 channels and you can control up to 240 watts max at 12V or 480 watts max at 24V.
Mean Well LED Power Supply Three Output 200W - 24VDC
SKU: PS-MW-200-24 View Product Page
A Mean Well 200W 24VDC LED Power Supply / Transformer, with a selectable AC input of either 100-120VAC or 200-240AC and 24VDC output through three terminals. Simple to use screw down style terminals make for an easy and secure connection. Built in short circuit, overload, over voltage, and over heating shut down protection guards the unit from any improper use. This power supply can also withstand a 300VAC input surge for up to 5 seconds. It can be used to connect 24VDC LED Modules, LED Lights, LED Light Ribbons, RGB LED lighting and other 24VDC Constant Voltage LED Lighting products. UL Recognized, RoHs and CE approved. Can connect up to 180 one watt led lights. Only install face up or in a manner that the cooling grate faces upwards with sufficient breathing space.
22 Gauge 5 Conductor RGBW Connection Wire
SKU: RA-SC-RGBW View Product Page
Our 22AWG 5 conductor RGBW stranded wire is made for use with our indoor RGB+W and RGB+WW LED Strip lights and lighting controls. Solder the wire directly to the strip light or use our strip light quick connectors and our other wire connectors to extend the lead of your RGBW LED strip lights. Choose from 50ft or 10ft wire lengths below.
