Ribbon Star LED Strip Lights – 60 LEDs per Meter – UL 12VDC – IP20, IP67
Price range: $17.99 through $67.99
Description
This UL Listed Ribbon Star LED light strip in White provides a perfect light source for many backlighting projects. This 118″(3m) Light strip can be cut every 2 inches and has many quick connnection options for easy connection and use. Comes with 3M™ mounting tape on the back, for the best long-term mounting solution. 3 SMD LEDs per 2 inches with a total of 180 LEDs that require 14.6W of 12VDC power for this 118″ strip (1.46W per foot). This LED strip light has the perfect brightness for ambient lighting, backlighting, coves, undercounter lights, toe kick lighting or under stairs and many more backlighting applications. Comes with two quick connectors. Requires a 12VDC Constant Voltage power source. UL Listed for class 2 luminaries and fixtures, RoHS and CE approved.
Specifications
| SKU | Color | Kelvin | Lumens | Watts | Voltage | CRI | Beam Angle | Rating | Max Serial |
|---|---|---|---|---|---|---|---|---|---|

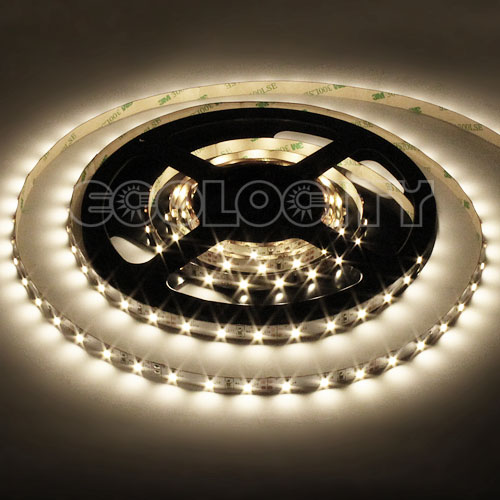

| RL-SC-RS-WW-3M | Warm White | 3000-3500K | 98 lm/ft | 1.46 W/ft | 12VDC | >80 | 120° | IP20 | 30ft |
| RL-SC-RS-T-WW-3M | IP67 | ||||||||

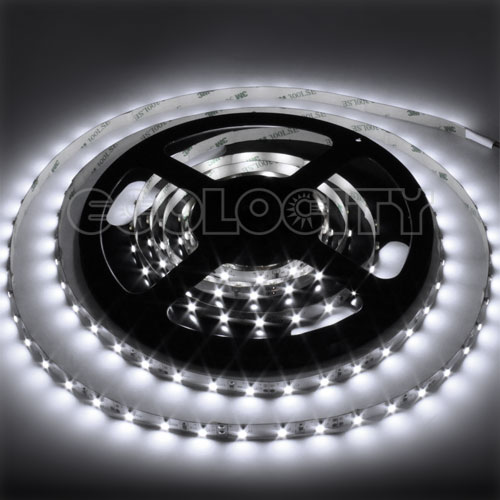

| RL-SC-RS-W-3M | Cool White | 6000-6500K | 119 lm/ft | IP20 | |||||
| RL-SC-RS-T-W-3M | IP67 | ||||||||

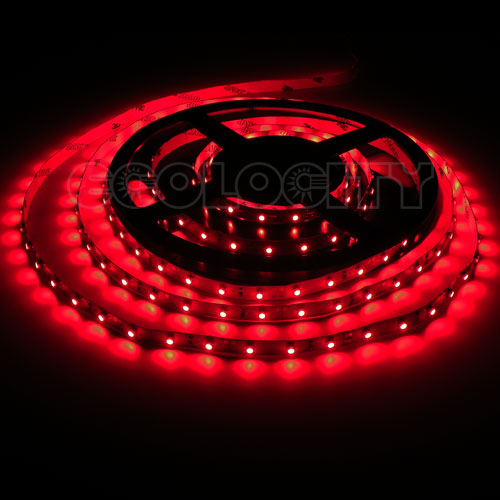

| RL-SC-RS-R-3M | Red | N/A | 27 lm/ft | N/A | IP20 | ||||
| RL-SC-RS-T-R-3M | IP67 | ||||||||

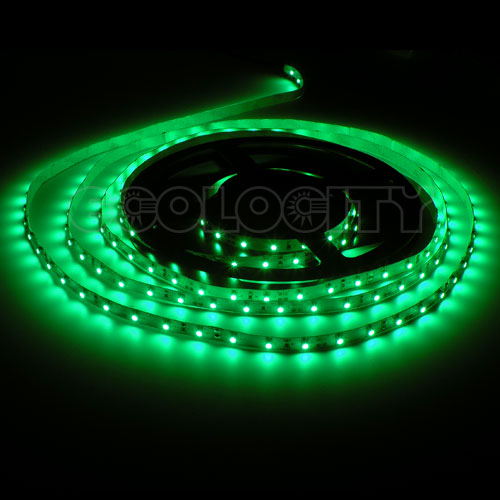

| RL-SC-RS-G-3M | Green | 64 lm/ft | IP20 | ||||||
| RL-SC-RS-T-G-3M | IP67 | ||||||||

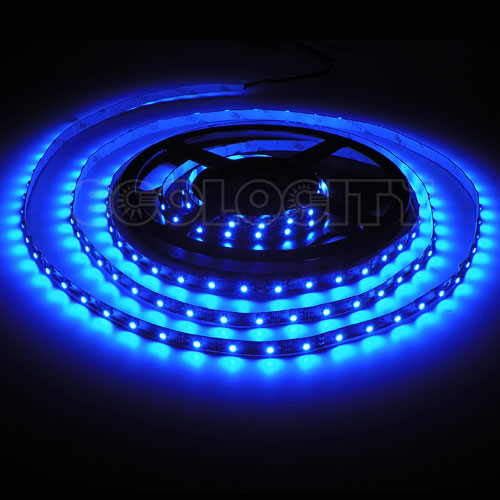

| RL-SC-RS-B-3M | Blue | 18 lm/ft | IP20 | ||||||
| RL-SC-RS-T-B-3M | IP67 | ||||||||

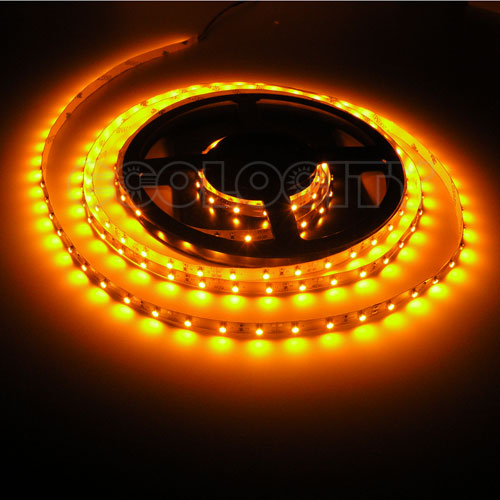

| RL-SC-RS-Y-3M | Amber | 27 lm/ft | IP20 | ||||||
| RL-SC-RS-T-Y-3M | IP67 |
Specification Sheet Ribbon Star Connection Guide LED Strip Light Comparison Guide Learn to Solder Wire to Strip Lights
Learn to Solder two Strips Together
Dimensions
Specifications
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 8 × 6.5 × 4 in |
| Color | Warm White, Cool White, Red, Green, Blue, Amber |
| IP Rating | |
| Voltage | |
| LED Length | 3.28ft (1m) Custom Length, 4.92ft (1.5m) Half Reel, 9.84ft (3m) Full Reel |
