Ribbon Star Max LED Strip Closeup White

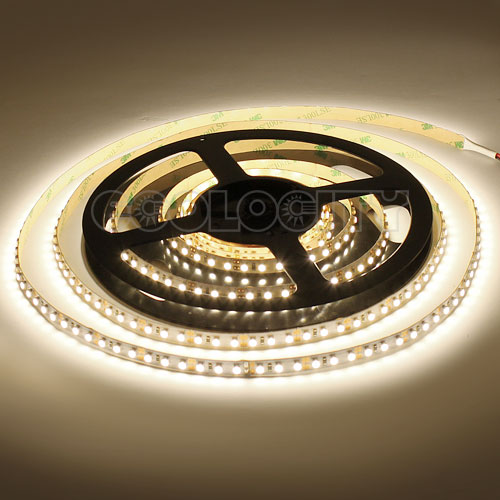

Max Warm White

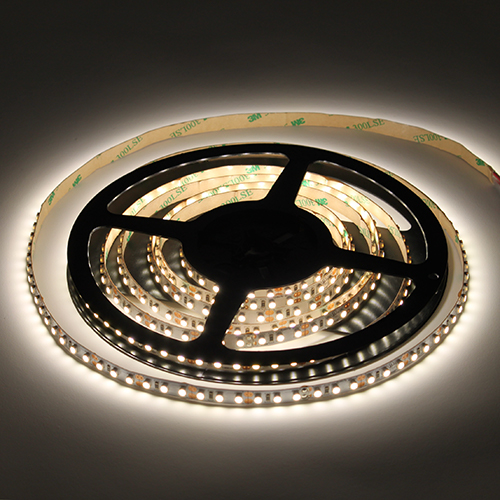

Max Daylight White

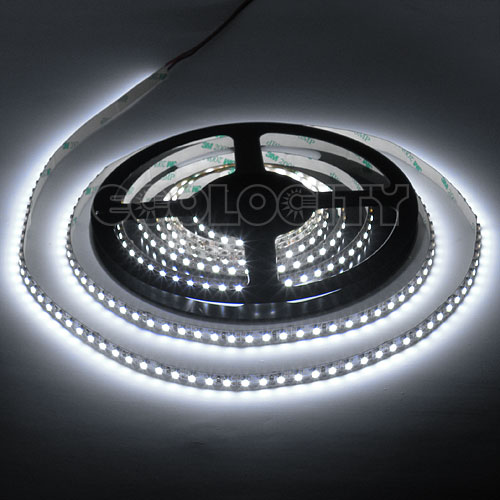

Ribbon Star Max LED Shine, Cool White

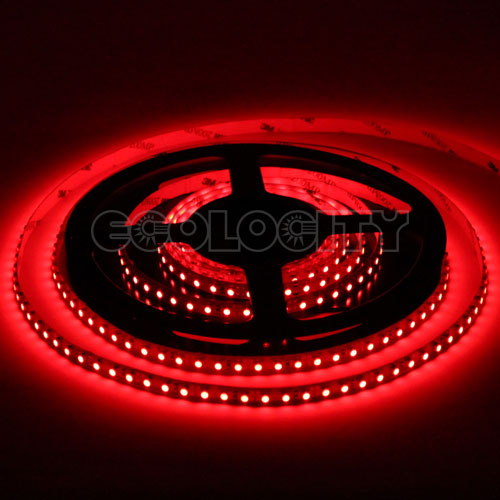

Max Red

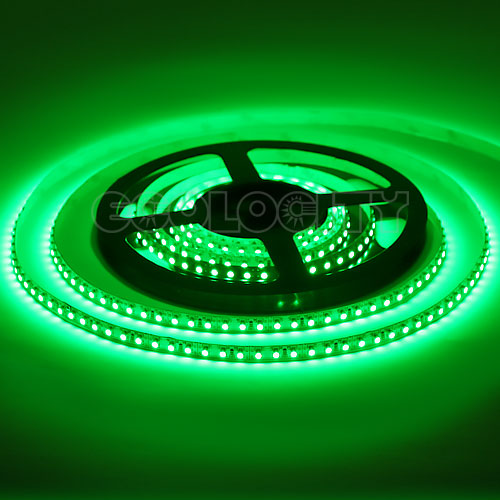

Max Green

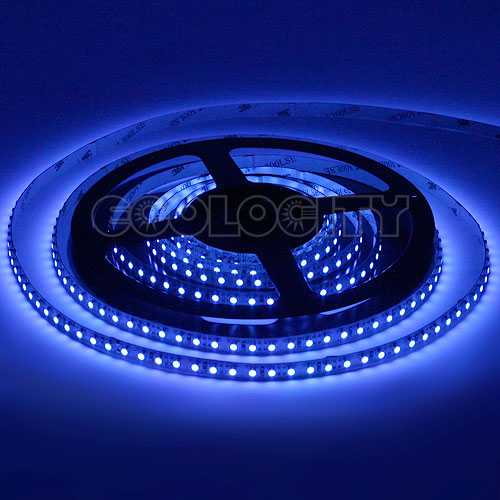

Max Blue

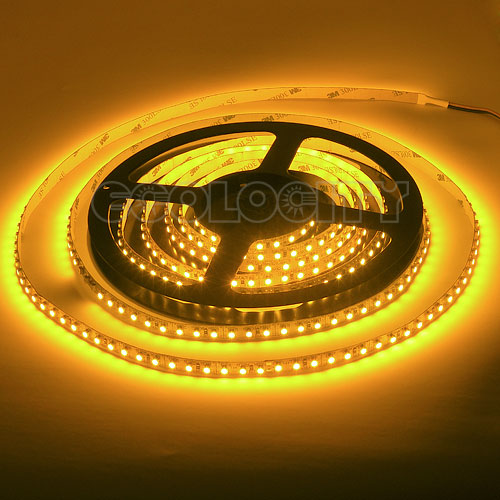

Max Amber

Ribbon Star Max LED Strip Lights – 120 LEDs per Meter – UL 12VDC – IP20 & IP67

SKU: RL-SC-RSM

Price range: $28.99 through $99.99

Order will ship next day If placed by 2:00pm PST.

Free Shipping On orders over $250 within the Continental U.S.* Excluding oversized items. See Exclusions

Description

The UL Listed Ribbon Star Max LED Ribbon is a perfect solution for backlight and ambient light applications. This 118″ (3 meters, approximately 10 Feet) ribbon can be cut every one inch and has many quick connection options for easy connection. Ribbon comes with 3M™ 200MP mounting tape on the back, for the best long-term mounting solution. Six (6) SMD LEDs per two inches, 2.92W per foot of power required for this strip of light. Can be used for coves lighting, toe kicks, under cabinet, backlighting, crown molding and many more applications. Requires a 12VDC Constant Voltage power supply. Comes with two quick connectors. UL Listed for class 2 low voltage luminaries and fixtures, RoHS and CE approved.

Specifications

SKU Color Kelvin Lumens Watts Voltage CRI Beam Angle Rating Max Serial
RL-SC-RSM-WW-3M Warm White 3000-3500K 201 lm/ft 2.92 W/ft 12VDC >80 120° IP20 30ft
RL-SC-RSM-T-WW-3M IP67
RL-SC-RSM-DW-3M Daylight White 4000-4500K 211 lm/ft IP20
RL-SC-RSM-T-DW-3M IP67
RL-SC-RSM-W-3M Cool White 6000-6500K 238 lm/ft IP20
RL-SC-RSM-T-W-3M IP67
RL-SC-RSM-R-3M Red N/A 55 lm/ft N/A IP20
RL-SC-RSM-T-R-3M IP67
RL-SC-RSM-G-3M Green 128 lm/ft IP20
RL-SC-RSM-T-G-3M IP67
RL-SC-RSM-B-3M Blue 37 lm/ft IP20
RL-SC-RSM-T-B-3M IP67
RL-SC-RSM-Y-3M Amber 55 lm/ft IP20
RL-SC-RSM-T-Y-3M IP67

Specification Sheet        Connection Guide            LED Strip Light Comparison Guide        Learn to Solder Wire to Strip Lights

Learn to Solder two Strips Together

Dimensions



Rating Length Width Height Wire Lead Wire Gauge Cuttable Sections Shipping Weight
IP20(Non-Waterproof) 9.84′(3m) 0.31″(8mm) 0.07″(1.8mm) 8.0″(20.32cm) 22AWG 0.98″(25mm) 0.2lbs

Ribbon Star Max Strip Dimensions









Rating Length Width Height Wire Lead Wire Gauge Cuttable Sections Shipping Weight
IP67(Waterproof) 9.84′(3m) 0.47″(12mm) 0.28″(7.2mm) 9.0″(22.9cm) 22AWG 0.98″(25mm) 0.8lbs

Ribbon Star Max Waterproof Dimensions

Specifications

Weight 0.6 lbs
Dimensions 8 × 6.5 × 4 in
Color

, , , , , ,

IP Rating

,

Voltage

LED Length

3.28ft (1m) Custom Length, 4.92ft (1.5m) Half Reel, 9.84ft (3m) Full Reel
