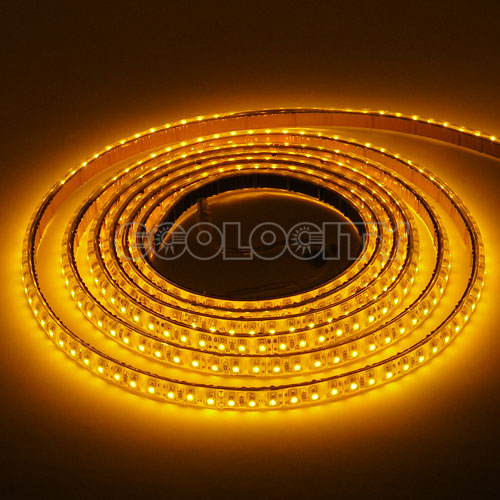

Ribbon Star Max, Waterproof Amber LED Strip Light - UL 12VDC - 118" (3m)
SKU: RL-SC-RSM-T-Y-3M
Description
The Ribbon Star Max Waterproof flexible LED ribbon is a perfect solution for backlight and ambient light applications. The IP67 Ribbon Star Max LED Ribbon is fully encased in a waterproof coating for the most extreme exterior conditions. This 118" (3 meters, approximately 10 Feet) ribbon can be cut every one inch and has many quick connection options for easy connection. Ribbon comes with 3M™ VHB™ mounting tape on the back, for the best long-term mounting solution. Each roll comes with 10 clear plastic screw down holders, 4 closed end caps, 4 end caps with holes for wiring, and a waterproof connector at each end. Three (3) SMD LEDs per one inch, 2.92W per foot of Constant Voltage DC power required for this strip of light. Can be used for coves lighting, toe kicks, under cabinet, backlighting, crown molding and many more applications. This LED Strip is UL Listed for class 2 circuits, RoHS and CE approved.
Specifications
SPECIFICATIONS | |
Model | Ribbon Star Max Waterproof, Amber, 118" (3m) |
SKU | RL-SC-RSM-T-Y-10 |
Dimensions | 118"L x 0.48"W x 0.28"H |
Connection Type | 2 Wire (+/-) |
LED Chip Type | 3528 |
LED Quantity | 3 SMDs per 1 inch |
LEDs Per Strip | 360 SMD LEDs |
Input Power | 12VDC Constant Voltage |
Watts | 2.92W per foot |
Beam Angle | 120° |
Rating | IP67 Waterproof |
Operating Temp | -4°~104°F |
Max Serial Connection | 30 Feet |
Certification | UL Recognized, RoHS, CE |
Product Lifetime | 50,000 Hours |
Warranty Period | 2 Years |
