Ribbon Star ThinLux 3.5mm Thin LED Strip Lights - 120 LEDs per Meter - ETL 24VDC - IP20
SKU: RL-DX-TL
$79.99 full reel price (9.84ft) *shorter lengths available
Order will ship: Wednesday, May 21
* If placed by 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S.
* Excluding oversized items. See Exclusions
Description

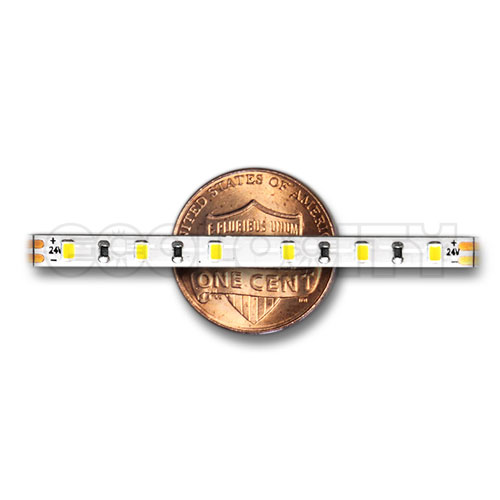

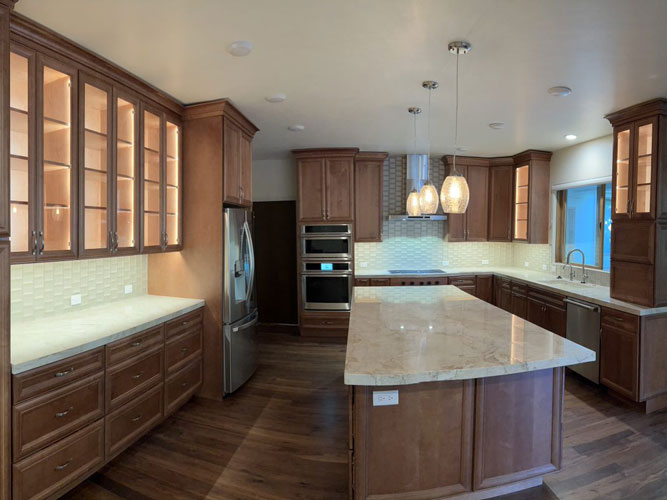

The Ribbon Star ThinLux is the smallest and thinnest LED strip light available on the market with an incredible 3.5mm (3/20") wide PC board that can fit in the size of a standard saw blade kerf. Making it an ideal choice for furniture makers, cabinet builders, exhibits and displays. This strip can easily be hidden our mounted in small and procure spaces.
Specifications
| SKU | Color | Kelvin | Lumens | Watts | Voltage | CRI | Beam Angle | Rating | Max Serial |
|---|---|---|---|---|---|---|---|---|---|

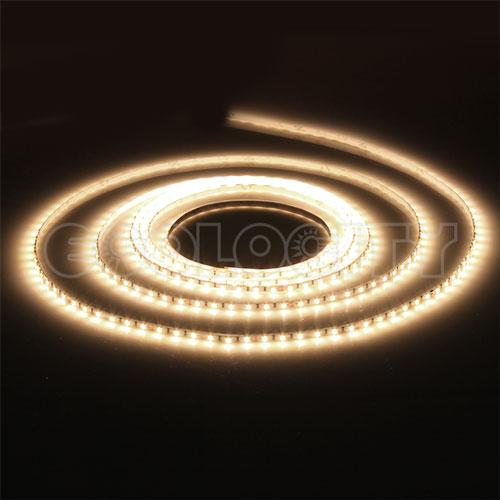

| RL-DX-TL-WW-3M | Warm White | 2700-3000K | 366 lm/ft | 4.4 W/ft | 24VDC | >80 | 120° | IP20 | 20ft |

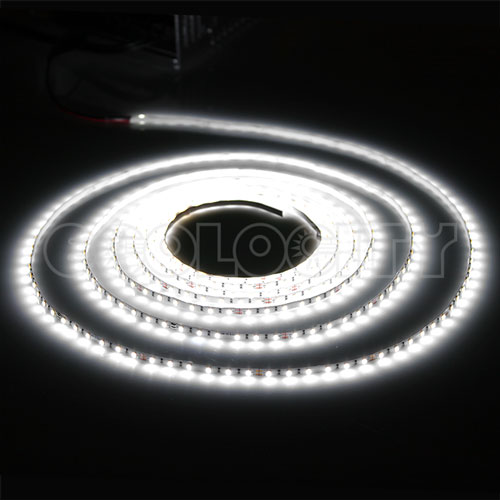

| RL-DX-TL-W-3M | Cool White | 5700-6500K | 384 lm/ft |
| Click For Product Data Sheet |
| ThinLux Connection Guide |
| LED Strip Light Comparison Guide |
| Click For Wire to Strip Soldering Video |
| Click For Overlap Strip Soldering Video |
Dimensions
Reviews
|
Product Rating |
Write a Review |
|---|---|
|
|
|
|
- There are currently no reviews for this product
|
|
Questions
|
(0) Product Questions |
Have a Question? |
|---|---|
|
|
|
|
- There are currently no questions for this product
|
|
Products Used for Installation
Optional
but recommended for aesthetics and/or heat sink
PIKO Aluminum Extrusion
SKU: EX-KL0-1
LINO Aluminum Extrusion
SKU: EX-KL0-2
Aluminum Step Extrusion for Staircase Lighting
SKU: EX-KLS-1
Aluminum STEKO Extrusion for Staircase Lighting
SKU: EX-KLS-2
Required
Required for dimming from ac wall switch (Do not use with DC controls)
100W ECO-Series Triac ELV / MLV Dimming LED Drivers , UL Listed, NEMA 4X - 12/24VDC
SKU: PS-DM-ECO-100
200W ECO-Series Triac ELV / MLV Dimming LED Drivers , UL Listed, NEMA 4X - 12/24VDC
SKU: PS-DM-ECO-200
Required
Required for standard DC output (Do use with DC controls)
Mean Well Plug-in LED Power Supply 60W - 24VDC
SKU: PS-MW-60-24
Mean Well LED Power Supply, 75W - 24VDC
SKU: PS-MW-75-24
Mean Well LED Power Supply Two Output 100W - 24VDC
SKU: PS-MW-100-24
Mean Well LED Power Supply Three Output 200W - 24VDC
SKU: PS-MW-200-24
Required
for dimming and color control
M1 MINI Single Color 4 Zone LED Dimming Remote & Receiver
SKU: LC-LT-MINI-1C
LED On/Off Switch with PIR Motion Sensor, 12-24VDC 2.5A
SKU: LC-LF-1-SENS
LED Proximity On/Off Switch with IR Sensor, 12-24VDC 2.5A
SKU: LC-LF-2-SENS
On/Off LED Switch with IR Sensor, 12-24VDC 2.5A
SKU: LC-LF-4-SENS
LED Dimmer with IR Sensor, 12-36VDC 8A
SKU: LC-OL-11DIM
Required
for electrical connections
2 Conductor DC Connection Wire Red/Black Pair - 22AWG
SKU: LA-SS-DC22
(10) 1 Wire Solderless Snap Down Butt Connectors, 18-24AWG
SKU: LA-LU-WC-1WB-10
(10) 1 Wire Solderless Snap Down T Connectors, 18-24AWG
SKU: LA-LU-WC-1WT-10
(10) 2 Wire Solderless Snap Down Connectors, 18-24AWG
SKU: LA-LU-WC-2WB-10
(10) 2 Wire Solderless Snap Down T Connectors, 18-24AWG
SKU: LA-LU-WC-2WT-10
