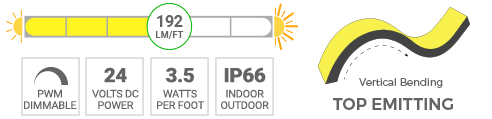

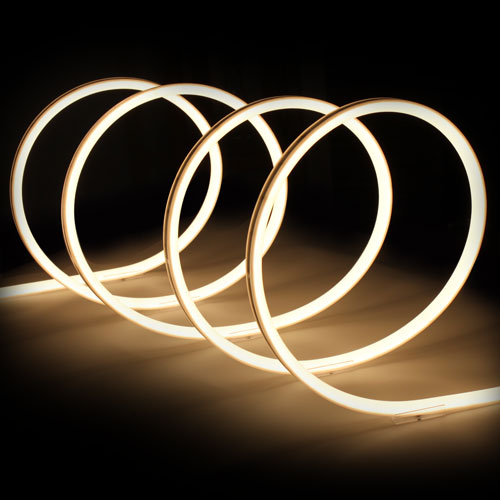

Each 5 meter roll of our top emitting round shaped 3000K LED Neon Flex strip is IP67 waterproof rated with a UV resistant dual core silicone housing to create bright dot free illumination with no shadows or hot spots. A 180° beam angle illuminates around all exposed sides of the round coating, resembling traditional neon without the harmful voltage or chemicals. The milky coating and design of this special strip light delivers 100% light diffusion with no need for a cover or diffuser. This strip is designed to bend on a vertical axis and can be used to wrap perimeters, down light, up light, landscape, architecture, bars, clubs or anywhere needing a diffused, low voltage, linear light. This strip requires 24 volt DC input and consumes 3.51 watts of power per foot to operate. This product is dimmable by our PWM low voltage dimmers or by our magnitude dimmable power supplies with compatible wall switch. This strip can be cut and re-connected every 1.5" and comes with 1 extra wire lead setup, 1 end cap, and 10 plastic mounting clips. For additional quality and safety measures each roll is ETL listed, RoHS and CE approved.
|Click For Product Data Sheet|
|Calculate Electrical Load|
|* Power Supply capacity must be larger than minimum lighting load.|
|Model||Round Top Emitting LED Neon, Waterproof Warm White|
|Dimensions||197" x 0.59" x 0.47"H|
|Connection Type||2 Wire (+/-)|
|LED Chip Type||2835|
|LED Quantity||6 SMDs per 1.50 inches|
|LEDs Per Strip||900 SMD LEDs|
|Input Power||24VDC Constant Voltage|
|Watts||3.51W per foot|
|Max Serial Connection||20 Feet|
|Certification||ETL, RoHS, CE|
|Warranty Period||2 Years|
For B2B or Large Quantity Price Info Click Here
Aluminum Mounting Track for 15mm Top Emitting Round LED Neon
SKU: LN-DX-NEA-AP-17B View Product Page
This product is a 1 meter long (3.28ft) aluminum track for mounting our top emitting and round top RGB and single color LED neon flex. This product is intended only for our 15mm RGB, white and warm white top emitting neon flex strips listed below. Each 3.28 foot of mounting track includes two 1" long self tapping screws. The track is designed with extra space for screw heads so there is no need to counter sink. Simple to install by mounting the track and pushing the LED neon flex strip into place. This track enables smooth and straight linear lighting, with no sags, annoying light dots or hot spots. Please note that factory wire leads, end caps, and connectors do not fit inside the track.
Silicone End Cap with Hole and 2 Wire Lead for Round Top Emitting White Neon Flex
SKU: LN-DX-NTR-WH-ECH View Product Page
A 12" long 22AWG 2 wire solder lead with white PVC jacket and one holed end cap for re connection of White and Warm White Top Emitting Round Neon Flex Strips. The wire lead must be soldered when cutting and re-connecting our single channel top emitting round neon flex strips. Silicone Adhesive is required to maintain IP66 waterproof level. Wires are cut shorter and pre-tinned on the end intended for soldering. All additional accessories are listed found below.
Silicone End Cap for Round Top Emitting Neon Flex
SKU: LN-DX-NTR-EC View Product Page
A silicone end cap for sealing non wired ends of both our RGB and Single Color Top Emitting Round Neon Flex Strips. This end cap is intended only for the Round topped version of the flex strip. Silicone Adhesive is required to maintain IP66 waterproof level. All accessories can be found in products listed below.
Precision Micro Shears for Silicone Strip Housing and Small Wires
SKU: OA-AM-SIL-CUT View Product Page
Our micro precision snipping shears are a great additional tool to have. They are especially useful when prepping waterproof strip lights for new wire connections. The small snips make it easy to cut through the silicone housing to expose the copper pads below for soldering. The snips can also be used for small precision wire and soldering cuts not exceeding 1mm diameter (0.04").
RTV 4500 High Strength Silicone Sealant - 2.8oz Clear
SKU: OA-AM-SIL-GLU View Product Page
Use the RTV 4500 Silicone Sealant to adhere end caps and connectors to our waterproof silicone LED Strip Lights and Neon Flex Lights. RTV Silicone Sealant has excellent resistance to extreme temperature, moisture, ozone, vibration, and weathering. Product Specs: One-part acetoxy silicone rubber sealant Approved as a food grade silicone - NSF/ANSI Standard 51, USDA approved Will not crack or become brittle with age Application temperature -35 to 140° F.
