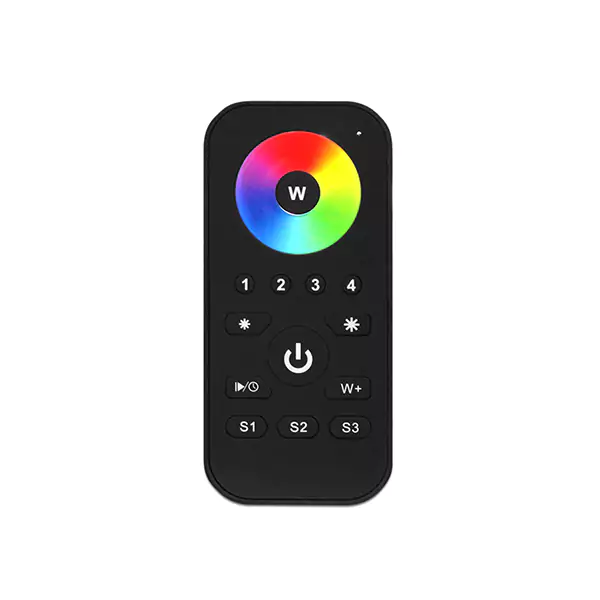

RGBW Color Wheel Controller WIFI & RF 4 Zones UL NEW!

SKU: LC-SR-RGBW-4Z

Product Description

Our 4 Zone RGBW RF remote has a stylish, compact and user friendly design to control up to 4 locations of color changing + white low voltage LED lighting. Each remote can pair to an unlimited amount of IP20 or IP67 UL Recognized RF receivers. When used with our WiFi receivers the user is also given the ability to control the lighting from a smartphone or tablet using the free 'Easylighting' app. The white LED output is controlled independently from the RGB color changing output and can be powered on/off and dimmed from the 'W' button on the center of the color wheel. Lighting zones can be controlled exclusively or as a group with dimming abilities of numerous static color choices. 3 quick save buttons allow you to save your favorite color or color changing settings. Each remote has 10 built in color changing modes with speed and brightness adjustments. See specifications and data sheets below for power input, max load and pairing instructions.

Product Downloads
Product Specifications
RF Remote Specs
Model4 Zone RGBW Remote Control
Remote SKULC-SR-RGBW-4Z
Remote Dimensions4.72" x 2.17" x 0.67"H
Input Power3xAAA Batteries (not included)
RatingIP20
Operating Temp0° ~ 104°F
Previous Mode on Power CycleYes
RF Remote Radius100ft (line of sight)
CertificationRoHS, CE
Warranty Period1 Year
Previous Mode on Power CycleYes
Static Color ChoicesColor Wheel Selection w/ Dimming
Color Changing Modes10 Modes See Modes
IP20 RF Receiver
SKULC-SR-RGBW-REC
Dimensions6.69" x 2.32" x 1.14"H
Input Connection2 Wire (+/-)
Output Connection5 Wire RGBW(+)
Input Power12 - 36VDC
Output Power8A x 4CH
Maximum Watts12VDC - 384W
24VDC - 768W
RatingIP20
Operating Temp-4° ~ 122°F
CertificationUL Recognized, RoHS, CE
Warranty Period1 Year
IP20 RF/WiFi Receiver
SKULC-SR-RGBW-REC-WI
Dimensions7.01" x 2.24" x 0.83"H
Input Connection2 Wire (+/-)
Output Connection5 Wire RGBW(+)
Input Power12 - 36VDC
Output Power5A x 4CH
Maximum Watts12VDC - 240W
24VDC - 480W
RatingIP20
Operating Temp-4° ~ 122°F
App NameEasyLighting
CertificationUL Recognized, RoHS, CE
Warranty Period1 Year
IP67 RF Receiver
SKULC-SR-RGBW-RCWP
Dimensions7.11" x 2.90" x 1.50"H
Input Connection2 Wire (+/-)
Output Connection5 Wire RGBW(+)
Input Power12 - 36VDC
Output Power8A x 4CH
Maximum Watts12VDC - 384W
24VDC - 768W
RatingIP67
Operating Temp-4° ~ 122°F
CertificationUL Recognized, RoHS, CE
Warranty Period1 Year
IP67 RF/WiFi Receiver
SKULC-SR-RGBW-RCWP
Dimensions7.11" x 2.90" x 1.50"H
Input Connection2 Wire (+/-)
Output Connection5 Wire RGBW(+)
Input Power12 - 36VDC
Output Power5A x 4CH
Maximum Watts12VDC - 240W
24VDC - 480W
RatingIP67
Operating Temp-4° ~ 122°F
App NameEasyLighting
CertificationUL Recognized, RoHS, CE
Warranty Period1 Year
4 Zone Remote Control: LC-SR-RGBW-4Z
Prod Image
$74.99
IP20 RF Receiver: LC-SR-RGBW-REC
Prod Image
$79.99
IP20 RF/WiFi Receiver: LC-SR-RGBW-REC-WI
Prod Image
$109.99
IP67 RF Receiver: LC-SR-RGBW-RC
Prod Image
$99.99
IP67 RF/WiFi Receiver: LC-SR-RGBW-RCWP
Prod Image
$139.99
